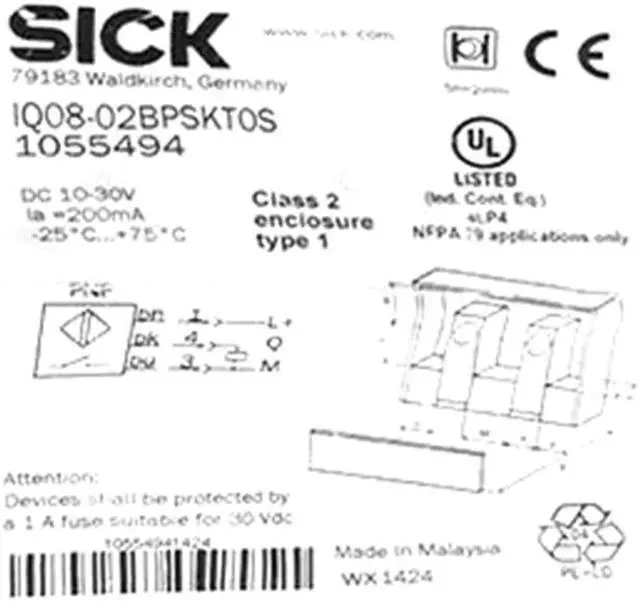

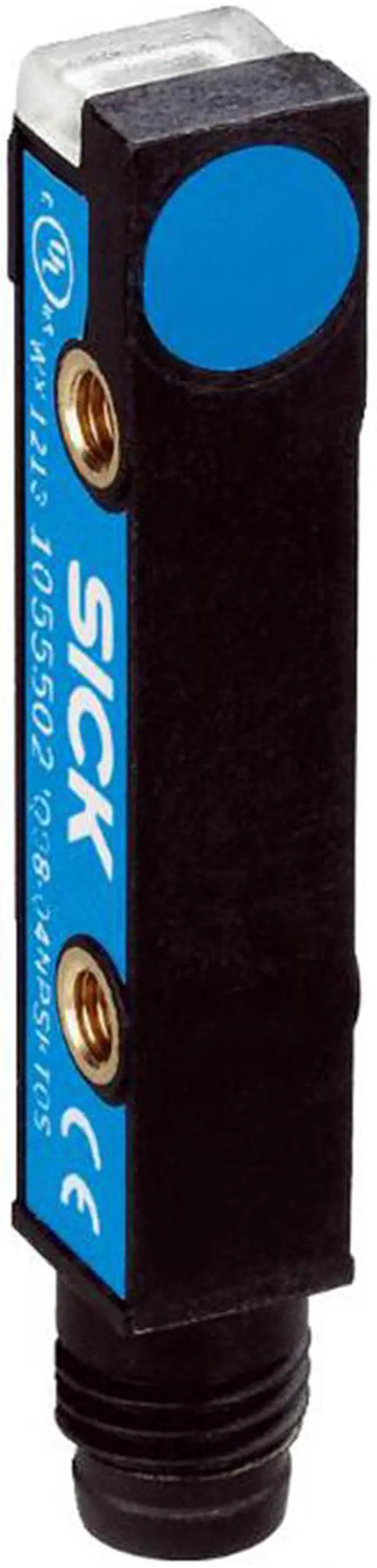

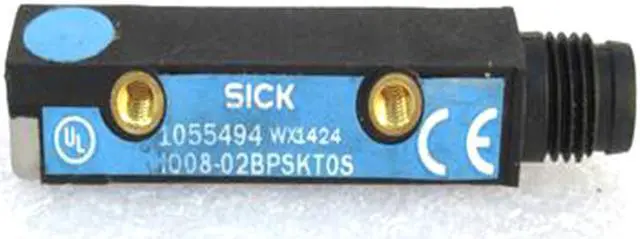

SICK IQ08-02BPSKTOS Inductive proximity sensors ,PNP,New
- SICK IQ08-02BPSKTOS Inductive proximity sensors ,PNP,New
+
+
Overview
Specs
Reviews
Features
Housing Rectangular

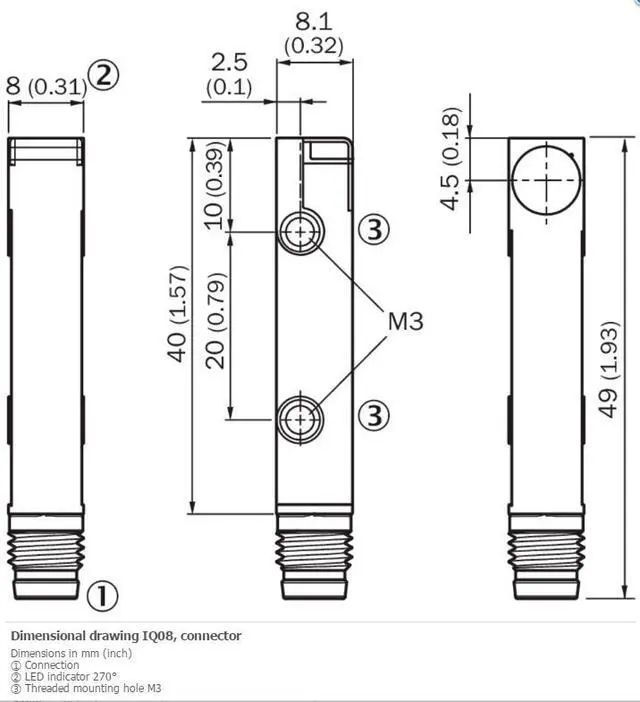

Dimensions (W x H x D) 8 mm x 40 mm x 8 mm
Sensing range Sn 2 mm
Safe sensing range Sa 1.62 mm
Installation type Flush
Switching frequency 2,000 Hz
Connection type Connector M8, 3-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67, IP68 1)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 100 ms
Hysteresis 5 % ... 15 %
Reproducibility = 2 % 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Housing material Plastic, VISTAL®
Sensing face material Plastic, VISTAL®
Tightening torque, max. = 1.5 Nm
UL File No. NRKH.E348498
Housing Rectangular
Dimensions (W x H x D) 8 mm x 40 mm x 8 mm
Sensing range Sn 2 mm
Safe sensing range Sa 1.62 mm
Installation type Flush
Switching frequency 2,000 Hz
Connection type Connector M8, 3-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67, IP68 1)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 100 ms
Hysteresis 5 % ... 15 %
Reproducibility = 2 % 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Housing material Plastic, VISTAL®
Sensing face material Plastic, VISTAL®
Tightening torque, max. = 1.5 Nm
UL File No. NRKH.E348498
