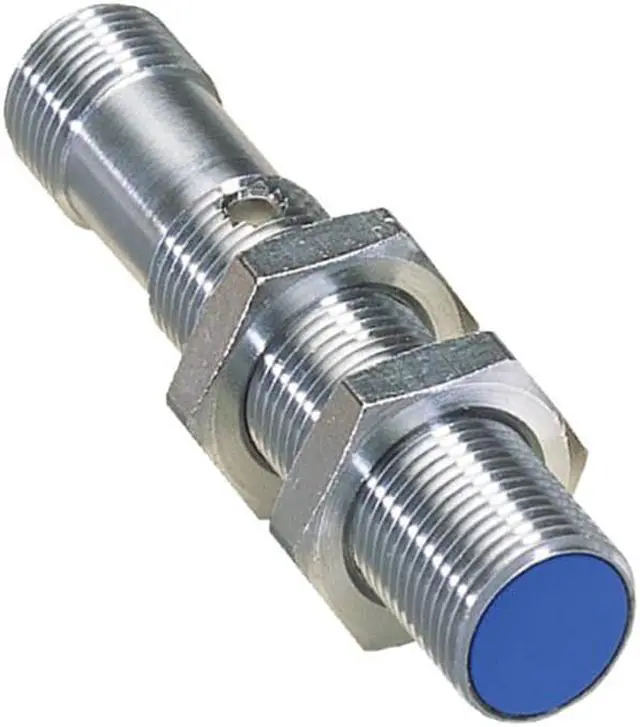

SICK IMF12-04BPOVC0S Inductive proximity sensors ,PNP,New

FEATURES
Housing Cylindrical thread design
Housing Standard
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Flush
Switching frequency 2,000 Hz
Connection type Male connector M12, 4-pin 1)
Switching output PNP
Output function NC
Electrical wiring DC 3-wire
Enclosure rating
IP68 2)
IP69K 3)
Special features
Resistant against coolant lubricants
Visual adjustment indicator

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2 V 1)
Current consumption 10 mA 2)
Hysteresis 3 % ... 20 %
Reproducibility = 2 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 100 g / 2 ms / 500 cycles, 150 g / 1 Mio cycles, 10 Hz ... 55 Hz / 1 mm, 55 Hz ... 500 Hz / 60 g
Ambient operating temperature –40 °C ... +100 °C
Housing material Stainless steel, V2A (1.4305)
Sensing face material Plastic, LCP

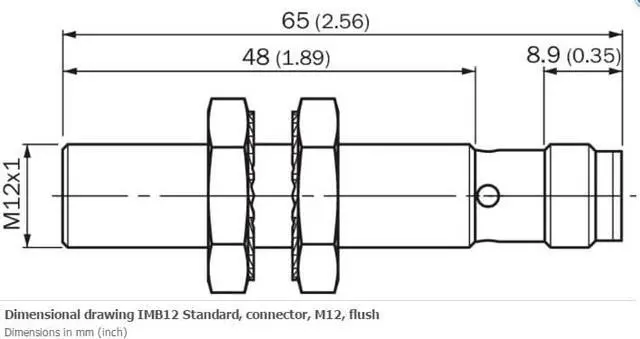

Housing length 65 mm
Thread length 48 mm
Tightening torque, max. Typ. 32 Nm 5)
Protection class II 6)
UL File No. E181493
