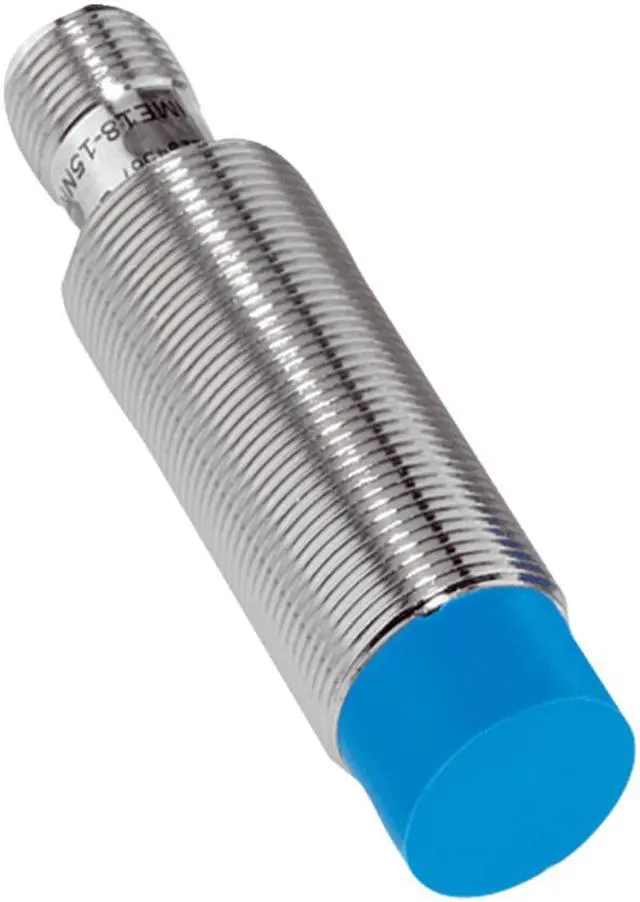

SICK IME18-20NPSZC0S Inductive proximity sensors PNP,New

FEATURES Housing Cylindrical thread design Housing Standard Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 20 mm Safe sensing range Sa 16.2 mm Installation type Non-flush Switching frequency 200 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 1) Special features Triple sensing range MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 10 % Voltage drop = 2 V 1) Current consumption 10 mA 2) Time delay before availability = 100 ms Hysteresis 1 %...

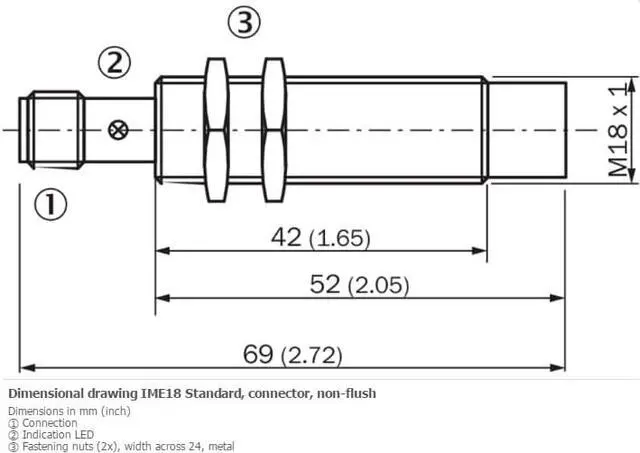

15 % Reproducibility = 5 % 3) 4) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia = 200 mA Current consumption, no load = 10 mA Short-circuit protection? Reverse polarity protection? Power-up pulse protection? Shock and vibration resistance 30 g, 11 ms/10 Hz... 55 Hz, 1 mm Ambient operating temperature –25 °C... +75 °C Ambient storage temperature –25 °C... +75 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic, PA 66 Housing length 69 mm Thread length 42 mm Tightening torque, max.

= 30 Nm UL File No. NRKH. E181493
