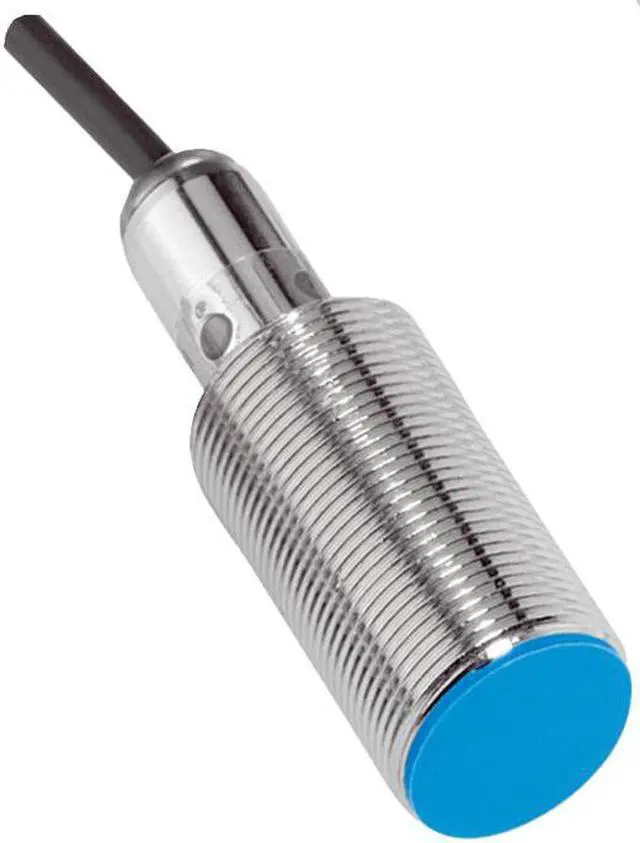

SICK IME18-08BPSZW3K Inductive proximity sensors ,PNP,New
- SICK IME18-08BPSZW3K Inductive proximity sensors ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Housing Cylindrical thread design
Housing Short-body
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 8 mm
Safe sensing range Sa 6.48 mm
Installation type Flush
Switching frequency 1,000 Hz
Connection type Cable, 3-wire, 3 m
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2 V 1)
Current consumption 10 mA 2)
Time delay before availability = 100 ms
Hysteresis 5 % ... 15 %
Reproducibility = 2 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Cable material PVC
Conductor size 0.25 mm²
Cable diameter Ø 3.9 mm
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, PA 66

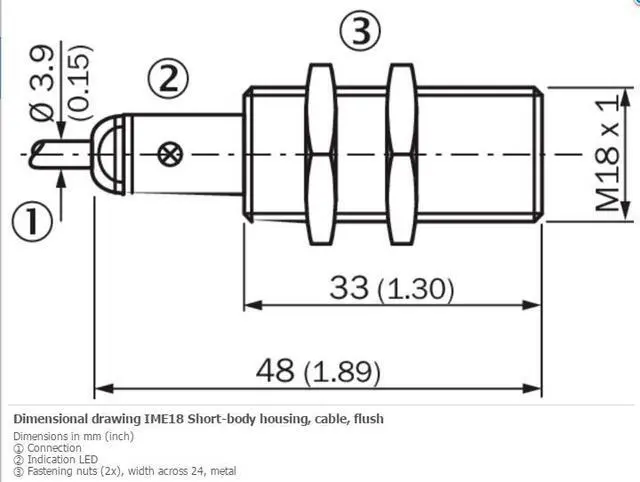

Housing length 48 mm
Thread length 33 mm
Tightening torque, max. = 40 Nm
UL File No. NRKH.E181493
Housing Cylindrical thread design
Housing Short-body
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 8 mm
Safe sensing range Sa 6.48 mm
Installation type Flush
Switching frequency 1,000 Hz
Connection type Cable, 3-wire, 3 m
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2 V 1)
Current consumption 10 mA 2)
Time delay before availability = 100 ms
Hysteresis 5 % ... 15 %
Reproducibility = 2 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Cable material PVC
Conductor size 0.25 mm²
Cable diameter Ø 3.9 mm
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, PA 66
Housing length 48 mm
Thread length 33 mm
Tightening torque, max. = 40 Nm
UL File No. NRKH.E181493
