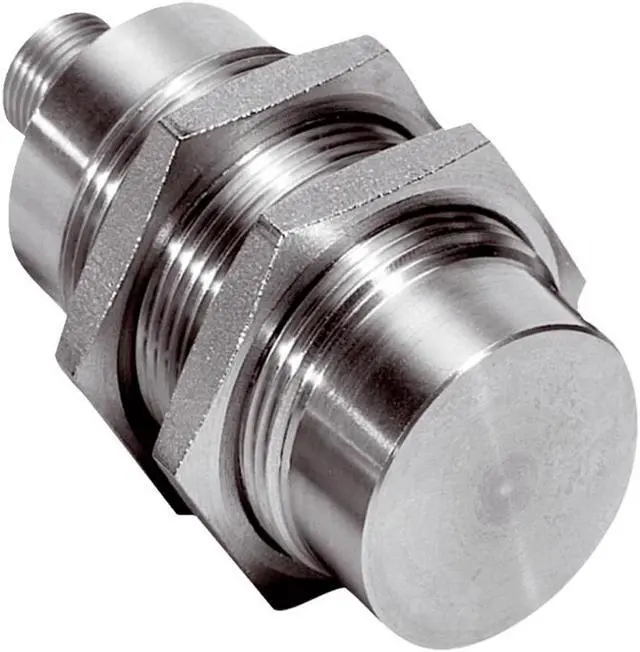

SICK IM30-40NPS-NC1 Inductive proximity sensors PNP,New

Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 40 mm Safe sensing range Sa 32.4 mm Installation type Non-flush Switching frequency 90 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68, IP69K 1) Special features Metal Face, triple sensing range MECHANICS/ELECTRONICS Mechanics/electronics Supply voltage 10 V DC... 30 V DC Ripple = 20 % 1) Voltage drop = 2 V 2) Current consumption 10 mA 3) Time delay before availability = 40 ms Hysteresis 1 %.

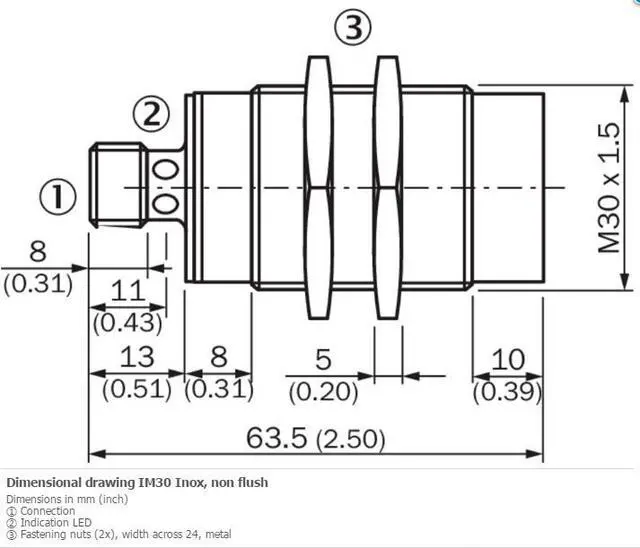

.. 15 % Reproducibility = 5 % 4) 5) Temperature drift (of Sr) = 10 % EMC According to EN 60947-5-2 Continuous current Ia = 200 mA Short-circuit protection? Reverse polarity protection? Power-up pulse protection? Shock and vibration resistance 30 g, 11 ms / 10... 55 Hz, 1 mm Ambient operating temperature –25 °C... +85 °C Housing material Stainless steel, V4A ( 1.4435, 316L) Sensing face material Stainless steel, V4A ( 1.4435, 316L) Housing length 63.5 mm Thread length 32 mm Tightening torque, max.

150 Nm UL File No. E191603
