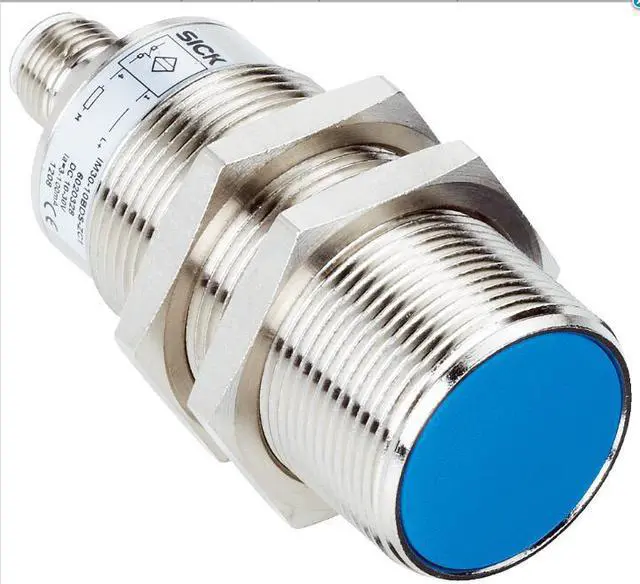

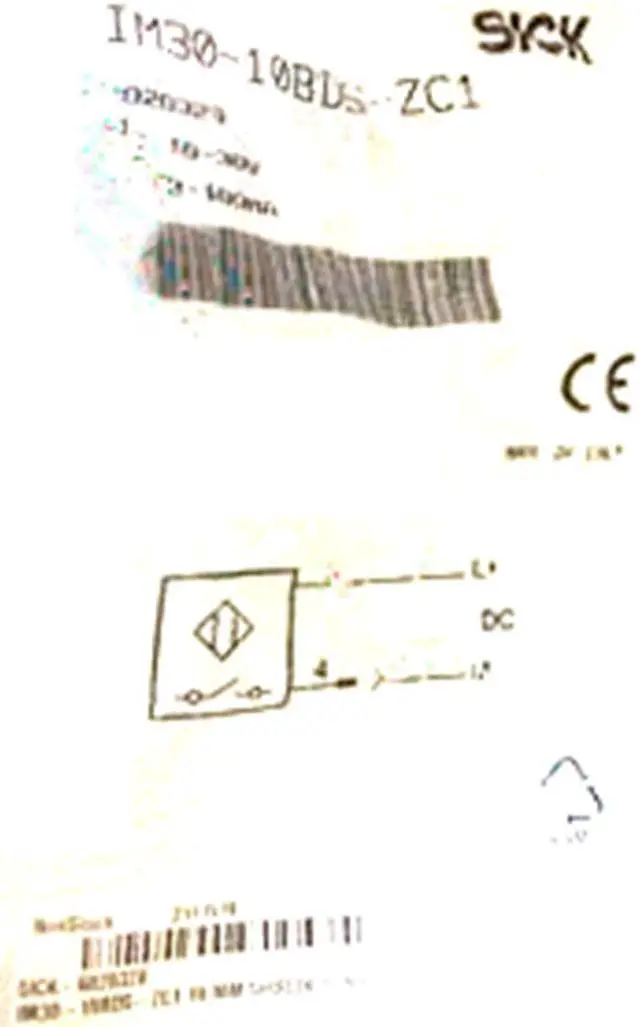

SICK IM30-10BDS-ZC1 Cylindrical thread design New
- SICK IM30-10BDS-ZC1 Cylindrical thread design New
+
+
Overview
Specs
Reviews
Features
Housing Cylindrical thread design
Housing Standard
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 10 mm
Safe sensing range Sa 8.1 mm
Installation type Flush
Switching frequency 150 Hz
Connection type Male connector M12, 4-pin
Output function NO
Electrical wiring DC 2-wire
Enclosure rating IP67 1)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2.8 V 1)
Time delay before availability = 50 ms
Hysteresis 2 % ... 10 %
Reproducibility = 2 % 2) 3)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 100 mA
Off-state current = 0.8 mA
Minimum load current = 3 mA
Short-circuit protection ?
Reverse polarity protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic

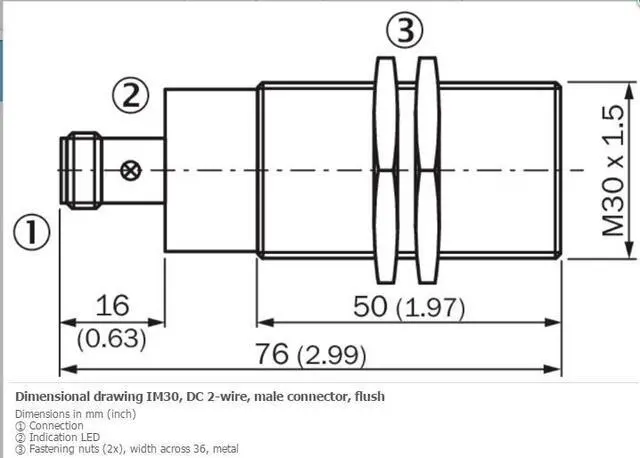

Housing length 76 mm
Thread length 50 mm
Tightening torque, max. 60 Nm
Housing Cylindrical thread design
Housing Standard
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 10 mm
Safe sensing range Sa 8.1 mm
Installation type Flush
Switching frequency 150 Hz
Connection type Male connector M12, 4-pin
Output function NO
Electrical wiring DC 2-wire
Enclosure rating IP67 1)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2.8 V 1)
Time delay before availability = 50 ms
Hysteresis 2 % ... 10 %
Reproducibility = 2 % 2) 3)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 100 mA
Off-state current = 0.8 mA
Minimum load current = 3 mA
Short-circuit protection ?
Reverse polarity protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic
Housing length 76 mm
Thread length 50 mm
Tightening torque, max. 60 Nm
