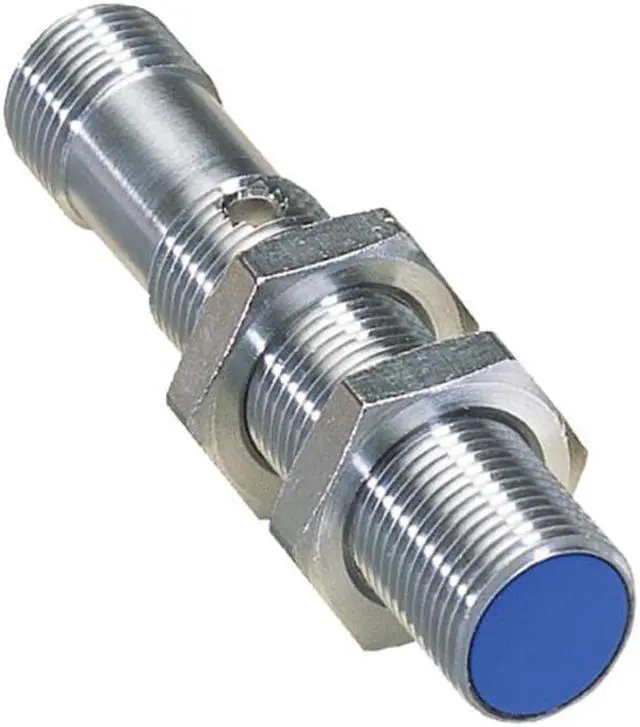

SICK IM12-06BNS-ZC1 Inductive proximity sensors ,NPN ,New

Features
Housing Cylindrical thread design
Housing Standard
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 6 mm
Safe sensing range Sa 4.86 mm
Installation type Quasi-flush 1)
Switching frequency 800 Hz
Connection type Male connector M12, 4-pin
Switching output NPN
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 2)
Special features Triple sensing range

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 20 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 50 ms
Hysteresis 1 % ... 15 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Installation aid ? 6)
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Chrome-plated brass
Sensing face material Plastic, Plastic
Housing length 60 mm
Thread length 37 mm
Tightening torque, max. 10 Nm
