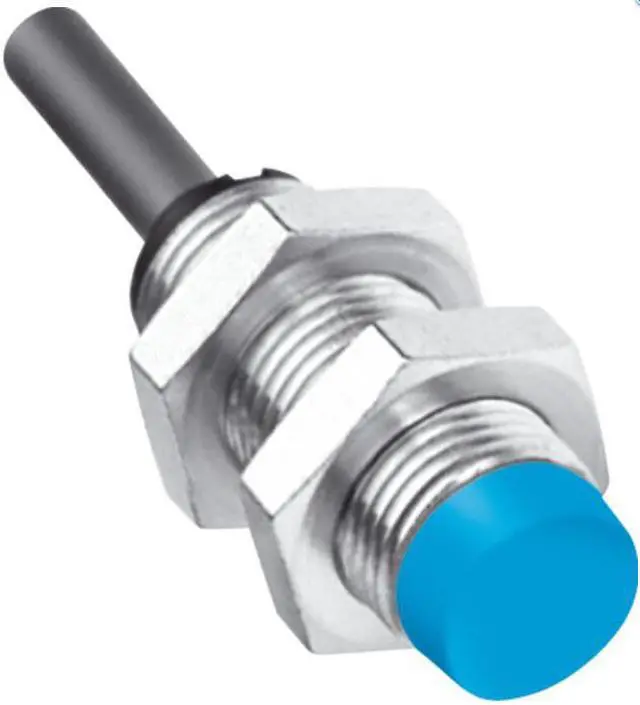

SICK IM12-04N-N-ZW0 Inductive proximity sensors New

Features
Housing Cylindrical thread design
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Non-flush
Switching frequency 1,500 Hz

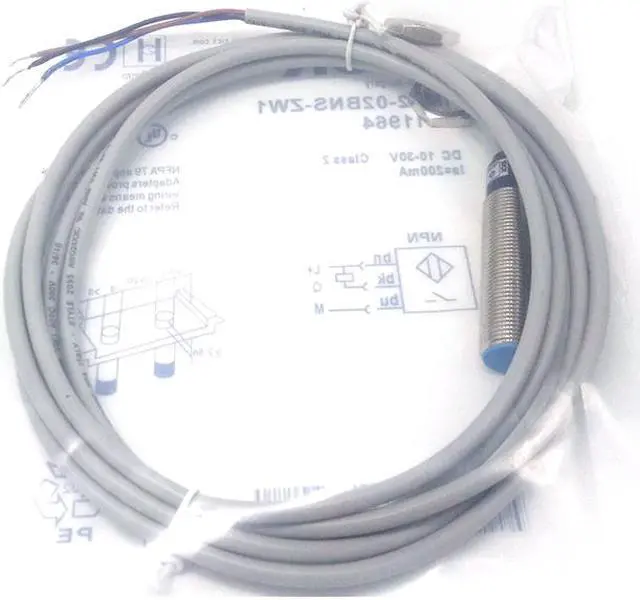

Connection type Cable, 2-wire, 2 m
Switching output NAMUR
Output function NC
Enclosure rating IP67 1)

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 7.5 V DC ... 25 V DC 1)
Current consumption 30 mA 1)
Hysteresis 1 % ... 15 %
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-6
Current consumption, sensor is activated = 1 mA
Current consumption, sensor is not activated = 2.2 mA
Cable material PVC
Conductor size 0.34 mm²
Cable diameter Ø 4.9 mm
Cable resistance 50 O
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –20 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic

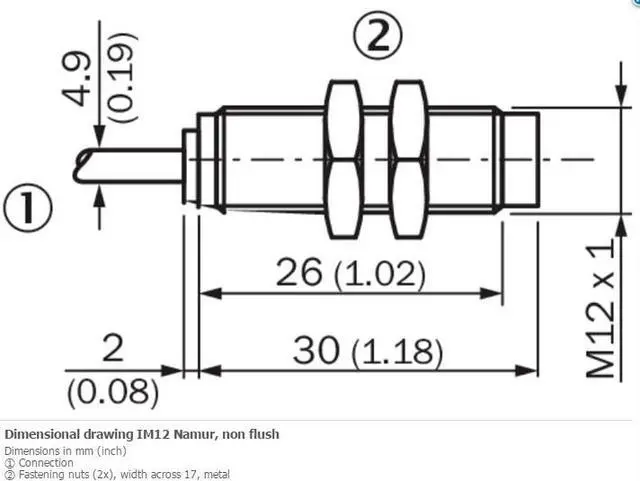

Housing length 30 mm
Thread length 25 mm
Tightening torque, max. 7 Nm
Weight 127 g
Items supplied Fastening nuts (2x), width across 17, metal
EC Approval Certificate PTB 03 ATEX 2037
Ex area category 1G
Input voltage Ui max. 15 V 2)
Input power Pi max. 120 mW 2)
Input current Ii max. 50 mA 2)
Internal capacitance Ci max. 140 nF 2)
Internal inductance Li max. 130 µH 2)
Nominal voltage 8.2 V DC 3)
Device labeling II 1G Ex ia IIC T6 Ga Ta –20 °C ... +70 °C
