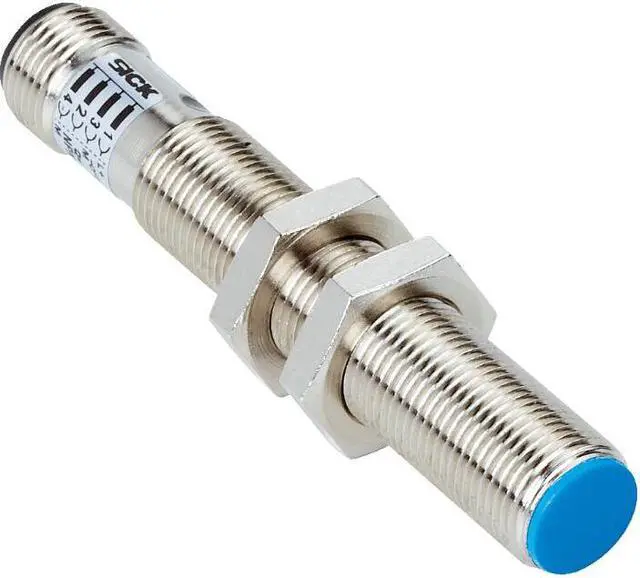

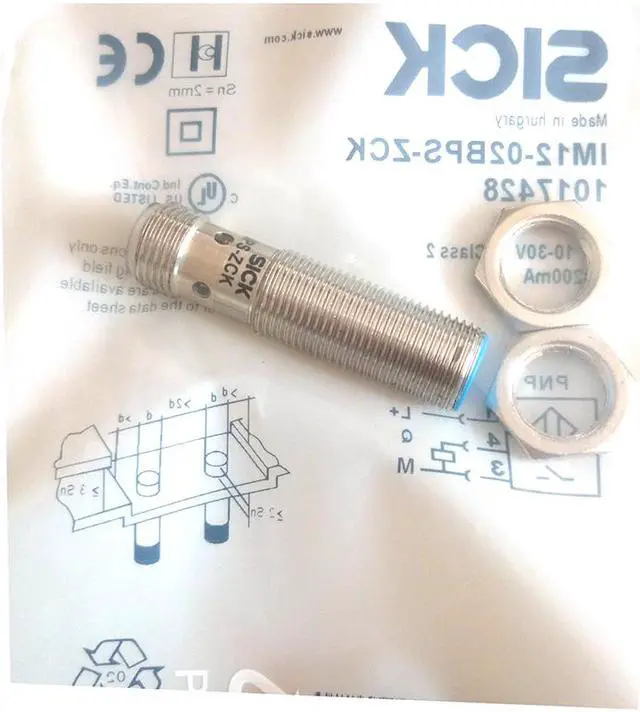

SICK IM12-02BPS-ZCK Cylindrical thread design PNP,New

Features
Housing Cylindrical thread design
Housing Short-body
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 2 mm
Installation type Flush
Switching frequency 2,000 Hz

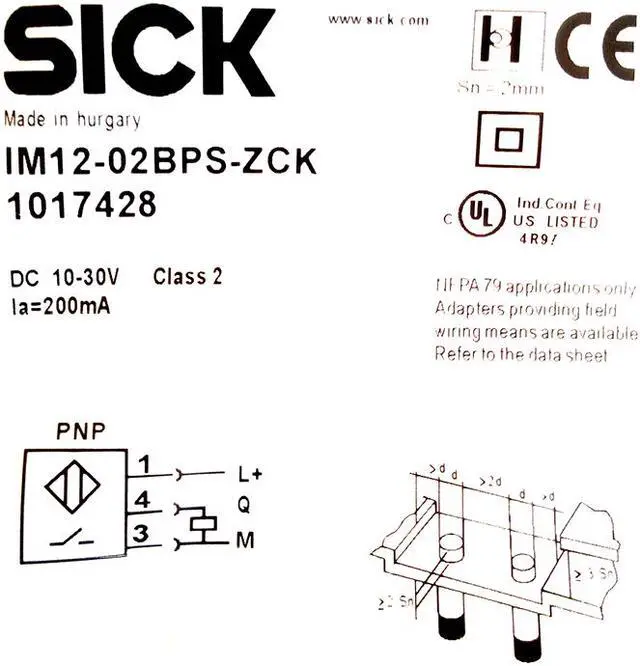

Connection type Male connector M12, 4-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 % 1)
Voltage drop = 1.5 V 2)
Current consumption 10 mA 3)
Time delay before availability = 2 ms
Hysteresis 1 % ... 10 %
Reproducibility = 1 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 300 mA
Wire-break protection ?
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic

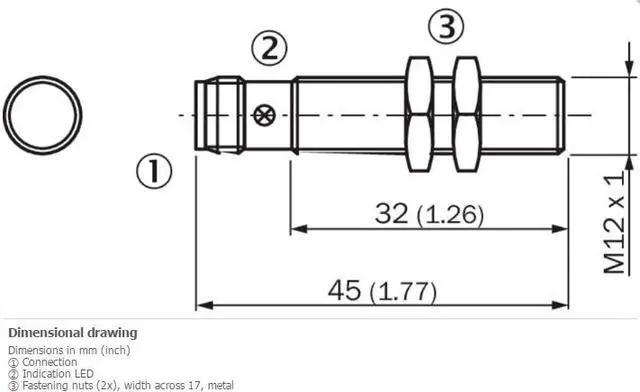

Housing length 45 mm
Thread length 32 mm
Tightening torque, max. 7 Nm
