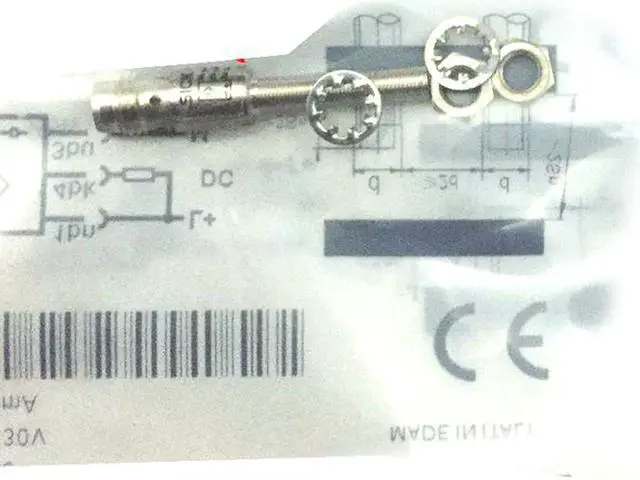

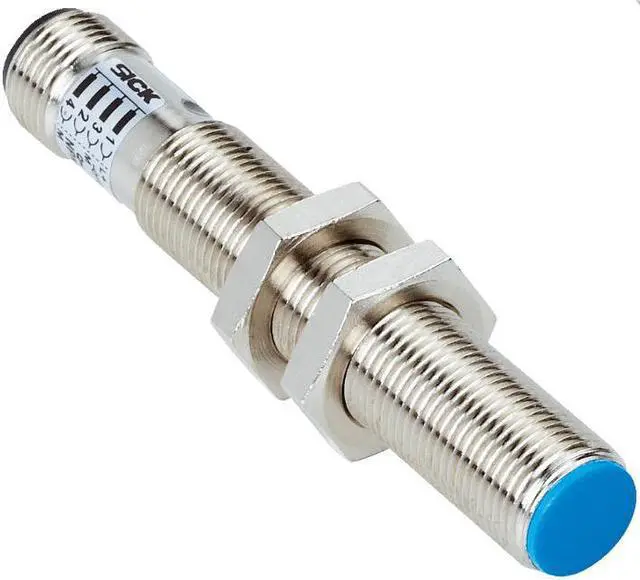

SICK IM12-02BAO-ZU0 Inductive proximity sensors New

Features
Housing Cylindrical thread design
Housing Standard
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 2 mm
Safe sensing range Sa 1.62 mm
Installation type Flush
Switching frequency 25 Hz
Connection type Cable, 2-wire, 2 m
Output function NC
Electrical wiring AC 2-wire
Enclosure rating IP67 1)

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 20 V AC ... 250 V AC
Voltage drop = 8.5 V 1)
Time delay before availability = 10 ms
Hysteresis 1 % ... 15 %
Reproducibility = 10 % 2) 3)
Temperature drift (of Sr) ± 10 %
EMC
According to EN 60947-5-2
As per EN 55011, class B
Continuous current Ia
= 250 mA 4)
= 200 mA 5)
Off-state current
= 3 mA (AC 250 V)
= 1.5 mA (AC 120 V)
Minimum load current = 8 mA
Short-time withstand current 0.9 A 6)
Cable material PUR/PVC
Conductor size 0.5 mm²
Short-circuit protection – 7)
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +80 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic

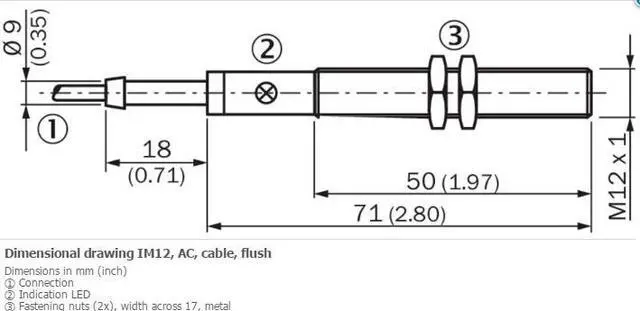

Housing length 71 mm
Thread length 50 mm
Tightening torque, max. = 7 Nm
Protection class I
