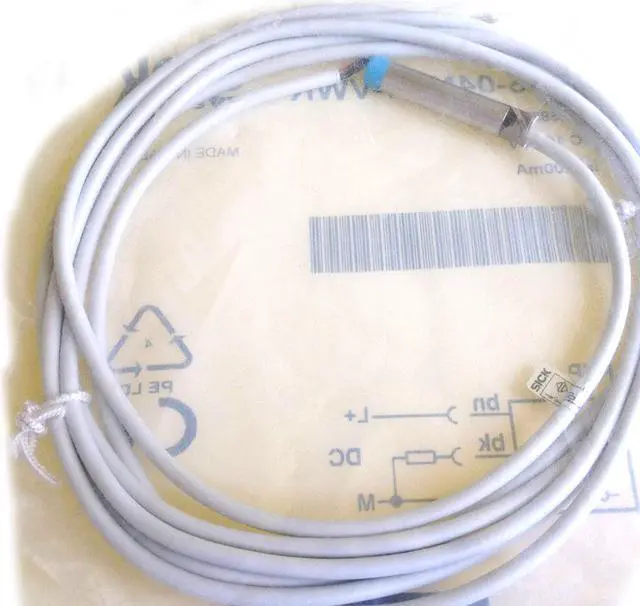

SICK IH06-1B5PS-VWK Inductive proximity sensors ,PNP,New

Features
Housing Cylindrical smooth housing
Housing Ultrashort
Diameter Ø 6.5 mm
Sensing range Sn 1.5 mm
Safe sensing range Sa 1.215 mm
Installation type Flush
Switching frequency 5,000 Hz
Connection type Cable, 3-wire, 2 m
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 20 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 10 ms
Hysteresis 1 % ... 10 %
Reproducibility = 1.5 % 4)
Temperature drift (of Sr) ± 10 %
EMC
EN 60947-5-2
IEC 61000-4-2: (Testlevel 2)
IEC 61000-4-4: (Testlevel 3)
Continuous current Ia = 200 mA
Cable material PVC
Conductor size 0.14 mm²
Cable diameter Ø 3.5 mm
Short-circuit protection ?
Reverse polarity protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Stainless steel, Stainless steel (V2A, 304)
Sensing face material Plastic, Plastic

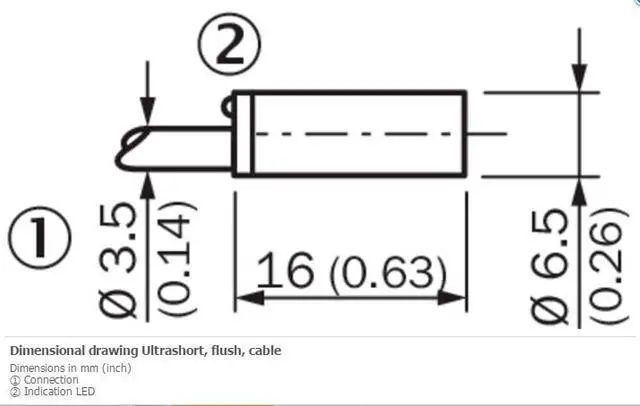

Housing length 16 mm
UL File No. NRKH.E191603
