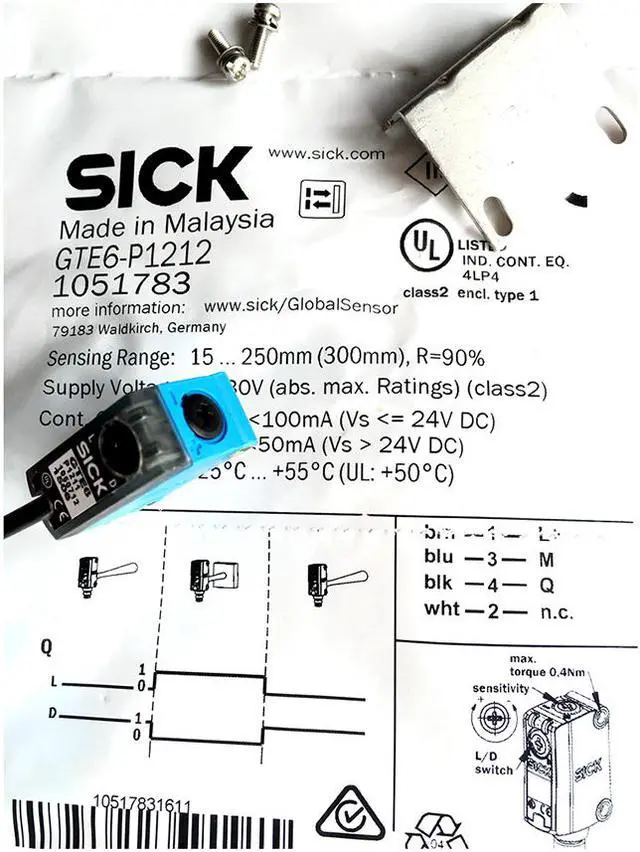

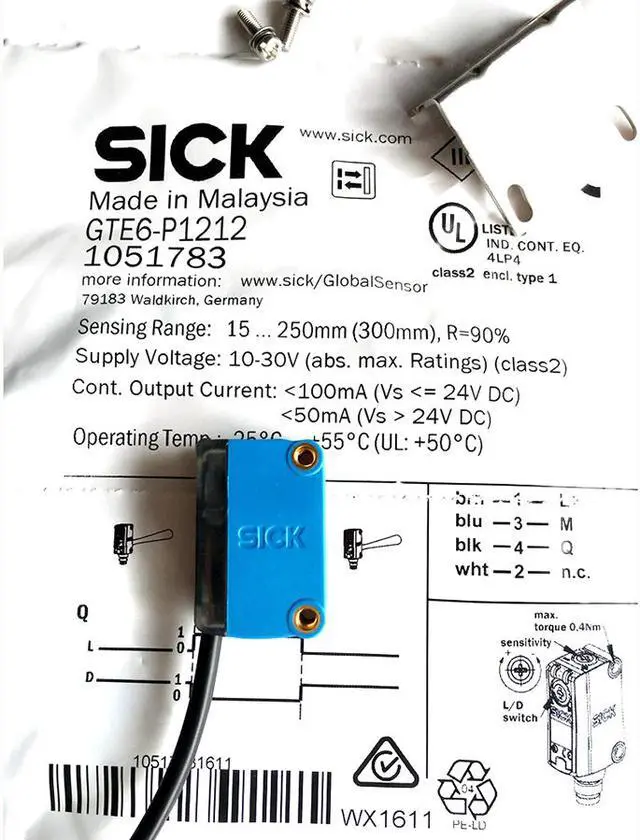

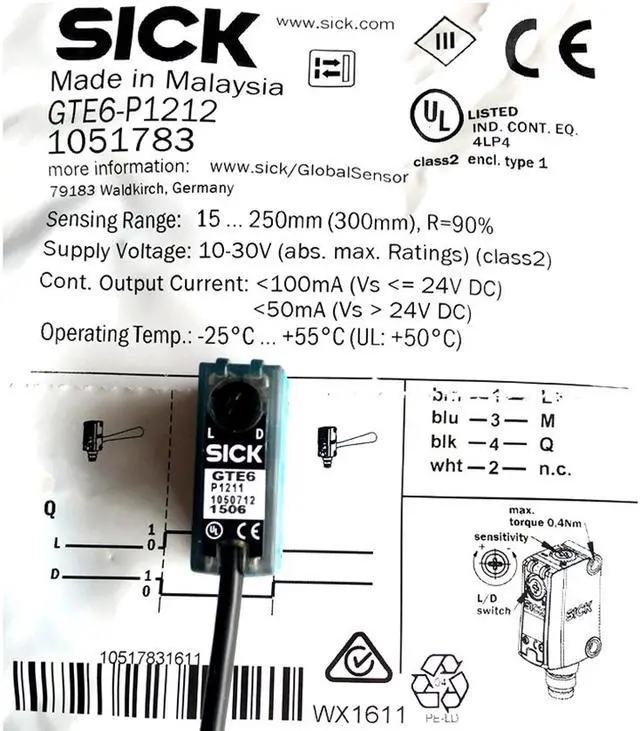

Sick GTE6-P1212 Miniature Photoelectric Sensors,PNP,New

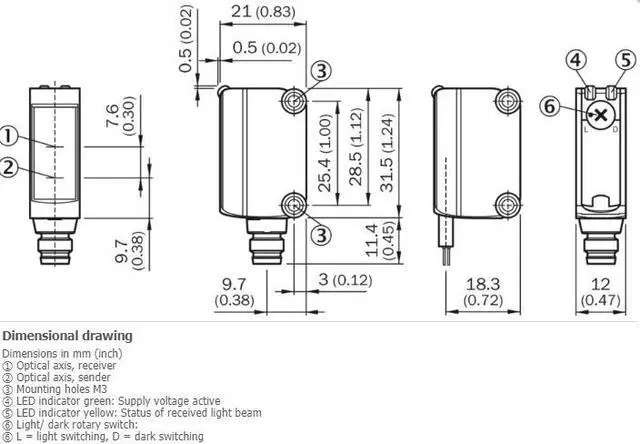

Sick GTE6-P1212 Miniature Photoelectric Sensors, PNP, New FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Housing design (light emission) Rectangular Sensing range max. = 300 mm 1) Sensing range = 250 mm Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 7 mm (90 mm) Wave length 650 nm Adjustment Mechanical spindle, 5 turns MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark selector Signal voltage PNP HIGH/LOW VS - (= 3 V) / approx.

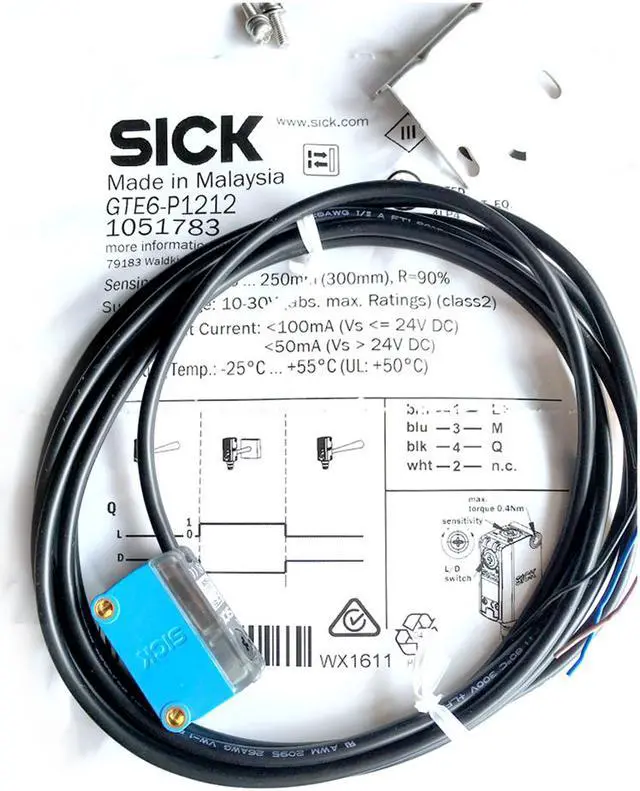

0 V Output current Imax. = 100 mA 4) Response time < 1, 250 ms 5) Switching frequency 500 Hz 6) Connection type Cable, 3-wire, 2 m 7) Cable material PVC Conductor cross-section 0.14 mm² Circuit protection A 8) B 9) D 10) Protection class III Weight 60 g Housing material Plastic, ABS/PC Optics material Plastic, PMMA Enclosure rating IP67 Items supplied Stainless steel mounting bracket ( 1.4301 /304) BEF-W100-A Ambient operating temperature –25 °C... +55 °C 11) Ambient storage temperature –40 °C... +70 °C
