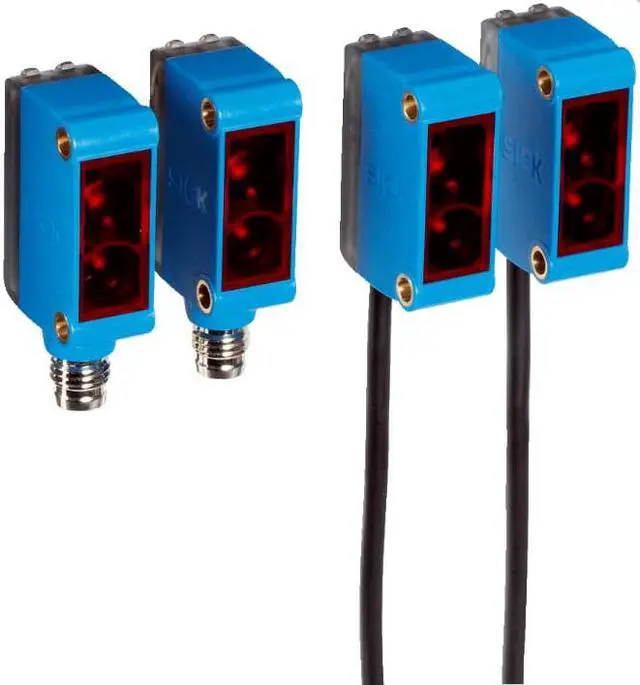

SICK GSE6-P1321S55 Miniature Photoelectric Sensors PNP,New

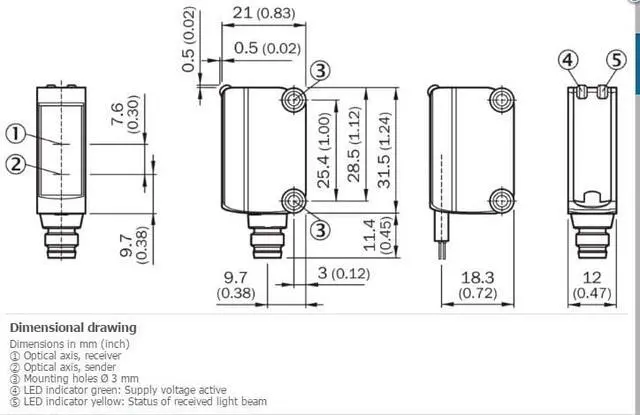

FEATURES Sensor/ detection principle Through-beam photoelectric sensor Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Housing design (light emission) Rectangular Sensing range max. 0 m... 14.5 m Sensing range 0 m... 10.6 m Type of light Infrared light Light source LED 1) Wave length 850 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Dark switching Signal voltage PNP HIGH/LOW VS - (= 3 V) / approx. 0 V Output current Imax.

= 100 mA 4) Response time < 500 µs 5) Switching frequency 1, 000 Hz 6) Connection type Cable, 3-wire, 2 m 7) Cable material PVC Conductor cross-section 0.14 mm2 Circuit protection A 8) B 9) D 10) Protection class III Weight 170 g Housing material Plastic, ABS/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +55 °C 11) Ambient storage temperature –40 °C... +70 °C UL File No. NRKH. E348498 & NRKH7. E348498 Part number of individual components 2080269 GS6-D1321S54 2084042 GE6-P1321S56
