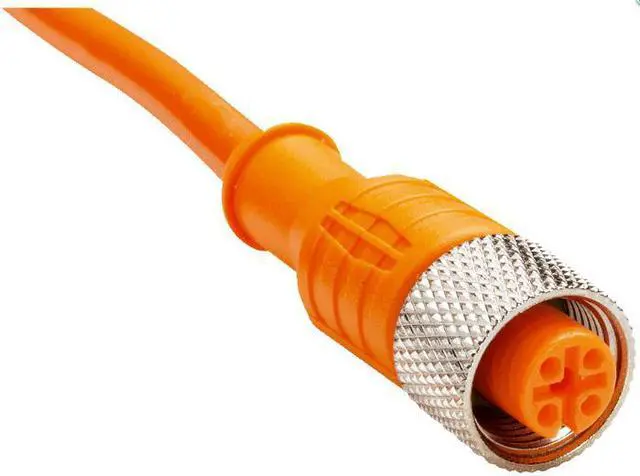

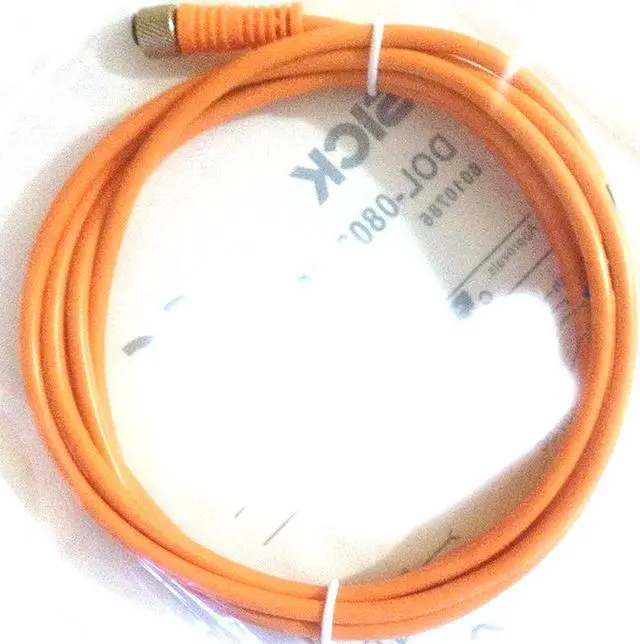

SICK DOL-1204-G10M Plug connectors and cables ,New
- SICK DOL-1204-G10M Plug connectors and cables ,New
+
+
Overview
Specs
Reviews
TECHNICAL SPECIFICATIONS
Accessory group Plug connectors and cables
Accessory family Connecting cables
Connection type head A Female connector, M12, 4-pin, straight
Connection type head B Flying leads
Connection type Flying leads
Connector material TPU
Connector color Orange
Locking nut material CuZn, nickel-plated brass
Tightening torque 0.5 Nm
Cable 10 m, 4-wire, PVC
Jacket material PVC
Jacket color Orange
Cable diameter 5 mm
Conductor cross-section 0.25 mm2
Shielding Unshielded
Bending radius
Flexible use > 10 x cable diameter
Stationary position > 5 x cable diameter
Reference voltage = 250 V
Current loading 4 A
Application Zones with chemicals
Enclosure rating IP67
Ambient operating temperature
Flexible use +5 °C ... +80 °C
Stationary position –40 °C ... +80 °C
Head –25 °C ... +80 °C
Accessory group Plug connectors and cables
Accessory family Connecting cables
Connection type head A Female connector, M12, 4-pin, straight
Connection type head B Flying leads
Connection type Flying leads
Connector material TPU
Connector color Orange
Locking nut material CuZn, nickel-plated brass
Tightening torque 0.5 Nm
Cable 10 m, 4-wire, PVC
Jacket material PVC
Jacket color Orange
Cable diameter 5 mm
Conductor cross-section 0.25 mm2
Shielding Unshielded
Bending radius
Flexible use > 10 x cable diameter
Stationary position > 5 x cable diameter
Reference voltage = 250 V
Current loading 4 A
Application Zones with chemicals
Enclosure rating IP67
Ambient operating temperature
Flexible use +5 °C ... +80 °C
Stationary position –40 °C ... +80 °C
Head –25 °C ... +80 °C
