Sapphire NITRO+ B850M WIFI AM5 mATX Gaming Motherboard + AMD Ryzen 7 9800X3D 8-Core 16-Thread Zen5 3D V-Cache Desktop Processor Combo, 12+2+1 Premium Power Stage, Enhanced Thermal Cooling, PCIe 5.0 M
- Flagship Zen5 3D V-Cache Gaming PerformancePowered by AMD Ryzen 7 9800X3D, the industry-leading gaming CPU with 96MB 3D V-Cache, 5.2GHz Max Boost Clock and cutting-edge Zen5 architecture, this combo delivers benchmark-setting ultra-high frame rates and ultra-low latency in 2K/4K AAA titles and competitive esports.
- NITRO+ Premium Power & Thermal DesignThe Sapphire NITRO+ B850M WIFI features a robust 12+2+1 phase premium power delivery system and upgraded extended heatsinks, ensuring rock-stable power supply and consistent peak performance for the flagship 9800X3D even during prolonged full-load gaming, eliminating thermal throttling.
- Ultra-Fast Connectivity for Gaming & StreamingEquipped with PCIe 5.0 M.2 for blisteringly fast NVMe SSD storage, onboard WiFi 6E + Bluetooth 5.3 for lag-free wireless gaming and peripheral pairing, plus a 2.5G Gigabit Ethernet port for stable wired connections, perfect for uninterrupted live streaming and competitive online play.
- Future-Proof AM5 Flagship PlatformFully compatible with AMD Ryzen 7000/8000/9000 series desktop processors, and supports high-speed DDR5 memory overclocking up to 8000+MT/s, this bundle offers a long-term cost-effective upgrade path, keeping your system at the cutting edge for years.
- Gamer-Centric mATX Design & Hassle-Free SetupCompact gaming-focused mATX form factor fits seamlessly in most mid-tower, mini-tower and SFF gaming cases. Pre-validated for full plug-and-play compatibility, it comes with a complete accessory ki
+
+
Overview
Specs
Reviews

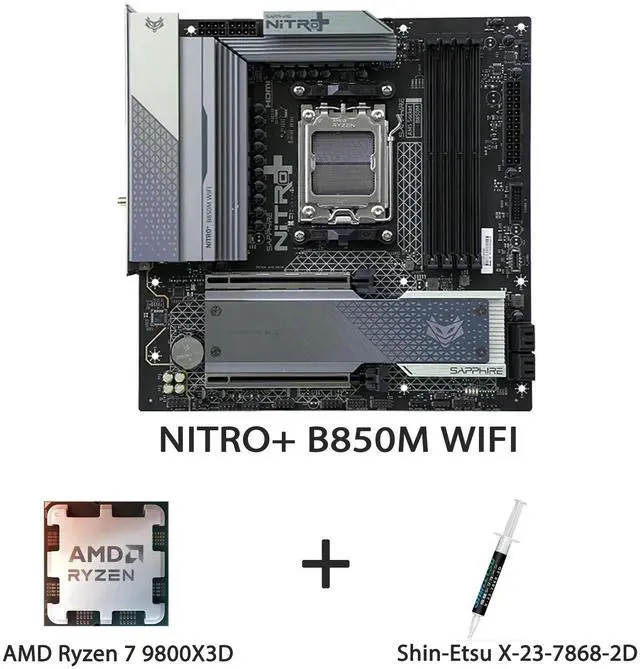

Sapphire NITRO+ B850M WIFI AM5 mATX Motherboard + AMD Ryzen 7 9800X3D 8-Core 16-Thread Zen5 3D V-Cache Desktop Processor Combo

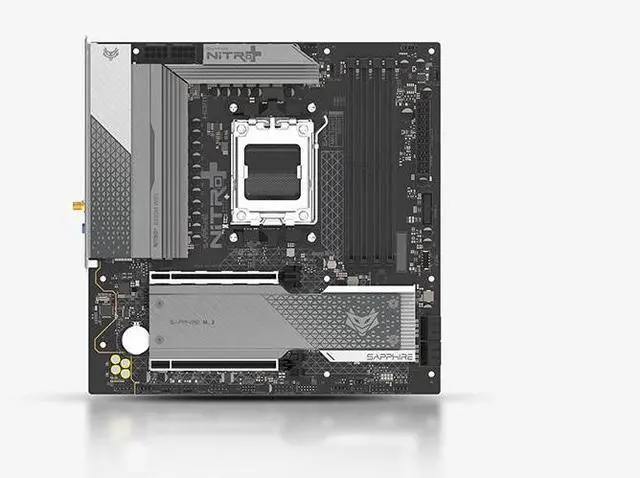

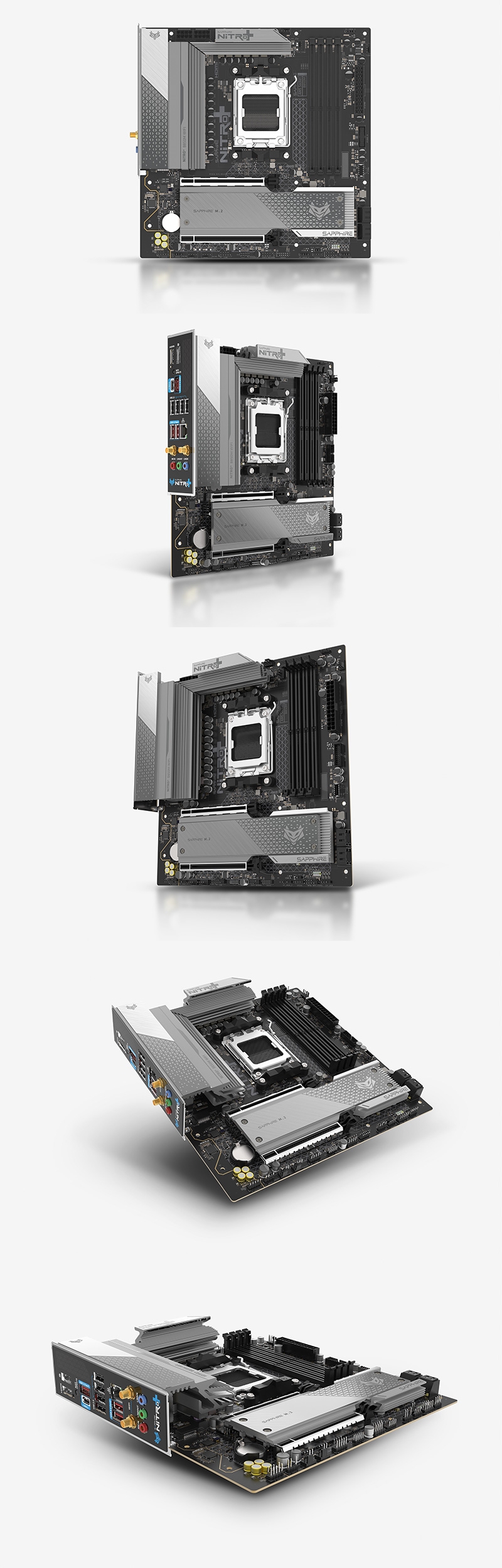

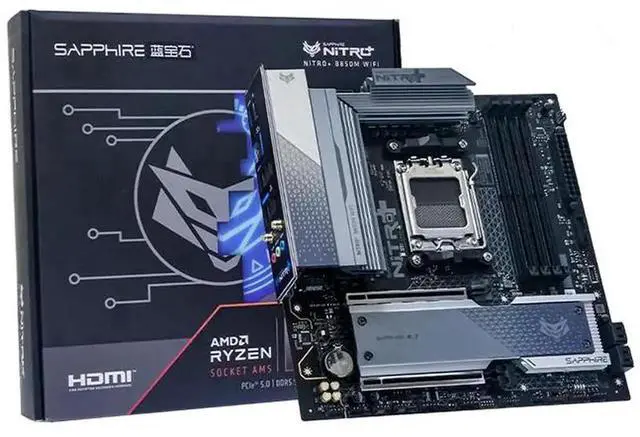

NITRO+ B850M WIFI AM5 mATX Motherboard

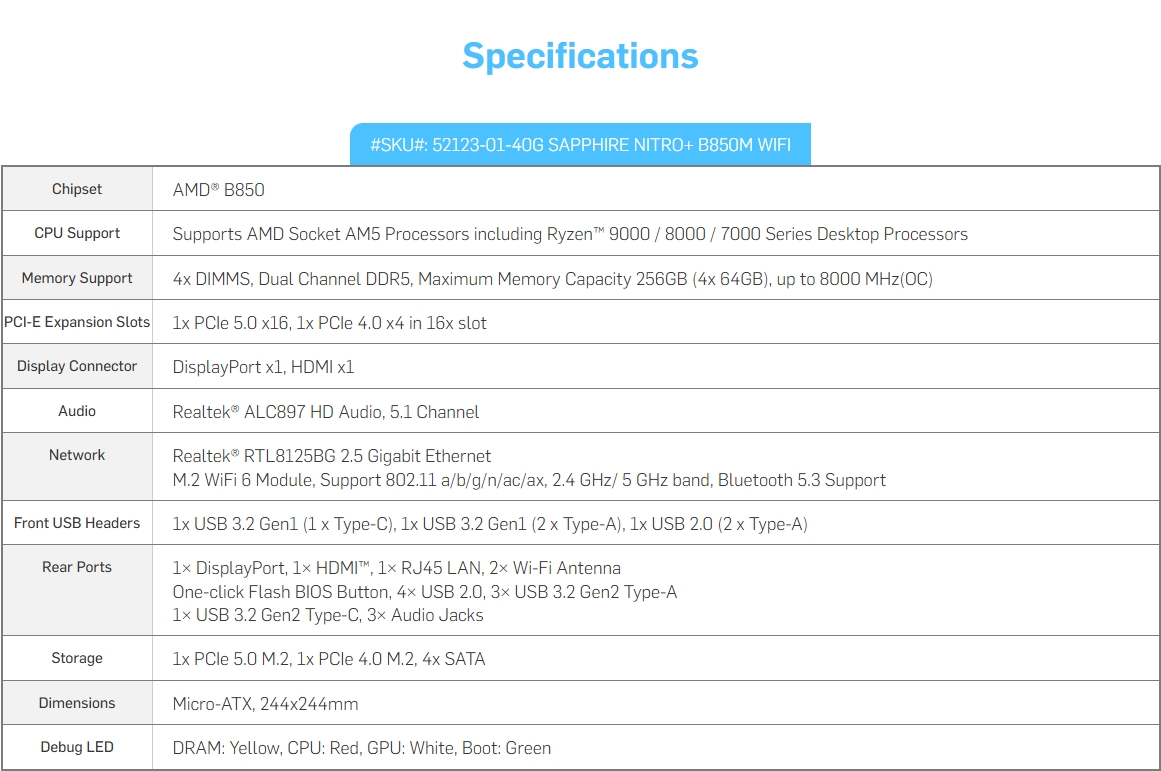

Chipset: AMD® B850 Chipset
CPU: Supports AMD® RALON 7000 series desktop processorsSupports AMD® RALON 8000 series desktop processorsSupports AMD® RALON 9000 series desktop processors-Supports AM5 socket processors
Memory: 4xDDR5 memory slots - Supports DDR5 memory onlyUp to 8000 MT/S (OC)
Maximum system memory capacity: 48GB*4 for 192GBSupports dual-channel memory technology - Supports Extended Overclocking Profiles (EXPO) memory modules and Extreme Memory Profiles (XMP)
Expansion slots:
1 PCIE 5.0 x16 slot 1 PCIE 4.0 x4 slot
Audio: Realtek-ALC897 Hi-Fi decoder chip (supports up to 5.1 channels)
Network function: Realtek®RTL8125BG network controller
-Supports 2.5G wired network
Wi-Fi 6 module support 802.11 a/b/g/n/ac/ax support 2.4GH z/5GHz wireless band support Bluetooth 5 wireless transmission

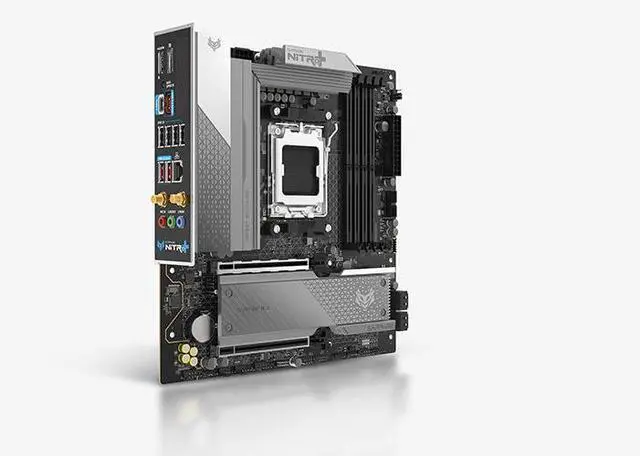

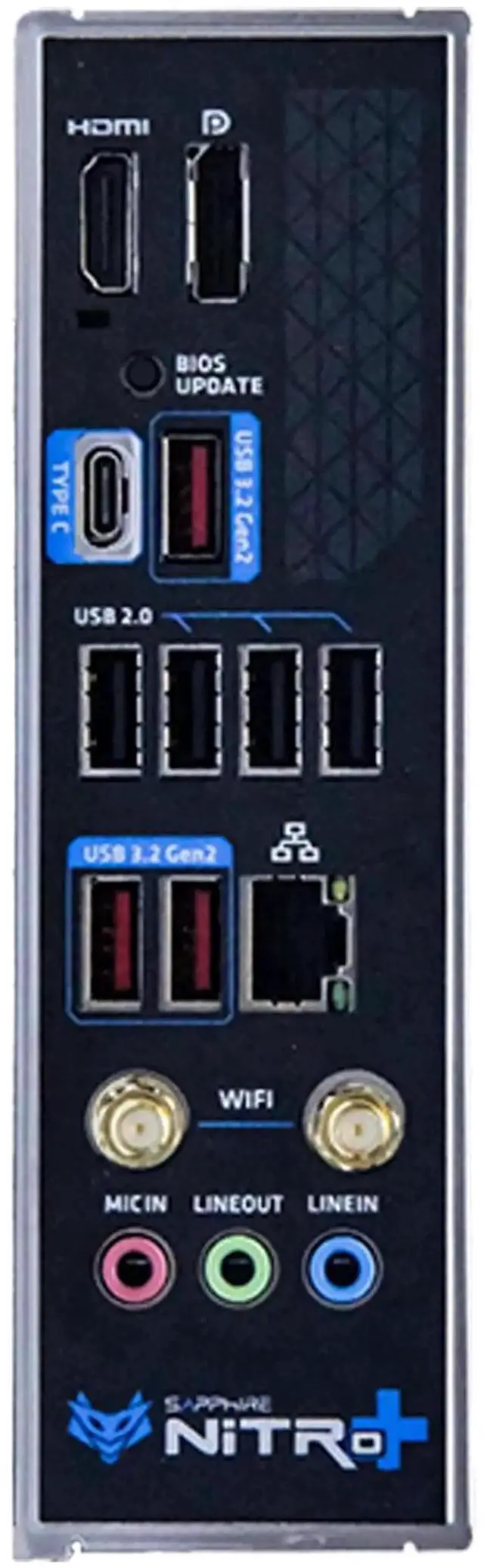

Rear I0 interfaces: 1 DisplayPort connector 1 HDMI connector 4 USB 2.0 ports 3 USB 3.2 GEN2Type-A enclosure 1 USB 3.2 GEN2 Type-C connector
1 LAN (RJ45) port 2 WiFi6 antenna ports
3 audio jacks
Front USB expansion interface: 1 USB 2.0 pin can be extended to 2 USB 2.0 interface (FUSB 2.01 ) 1 USB 3.2 Gen 1 pin can be extended to 2 USB 3.2 Gen1Type-A enclosure (FUSB 3.0 ) 1 USB 3.2 Gen 1 pin can be extended to 1 USB 3.2 Gen 1Type-C enclosure (FUSC) USC)
Storage: 1 PCIE 5.0 M. 2 support 2280/2242 specifications 1 PCIE 4.0 M. 2 support 2280/2242 specifications 4 SATA 3.0 6GB/S
Error Detection Indicator: DIMM Yellow Indicator
CPU red light GPU white light
BOOT green indicator
On-board pins,
jumpers,
buttons: 1 CPU fan pin (CPU FAN) 1 water-cooling pump pin (AIO PUMP)
3 system fan pins (CHA FAN1, CHA FAN2, CHA FAN3) 1 front audio pin (F AUDIO) 1 front panel pin (F PANEL) 3 5VARGB pins (5V ARGB 1, 5V ARGB 2, 5V ARGB 3)
1 12V RGB pin (12V RGB1) 1 speaker pin (SPEAK)
1 serial port pin (COM) 1 clear CMOS jumper (CLRCMOS)
1 Flash BIOS pin (FL BIOS1) 1 BIOS burner pin (JBIOS)
1 Diagnostic Card Pin (ESPI HEADER)
Motherboard Dimensions:
MATX version 245mmx245mm

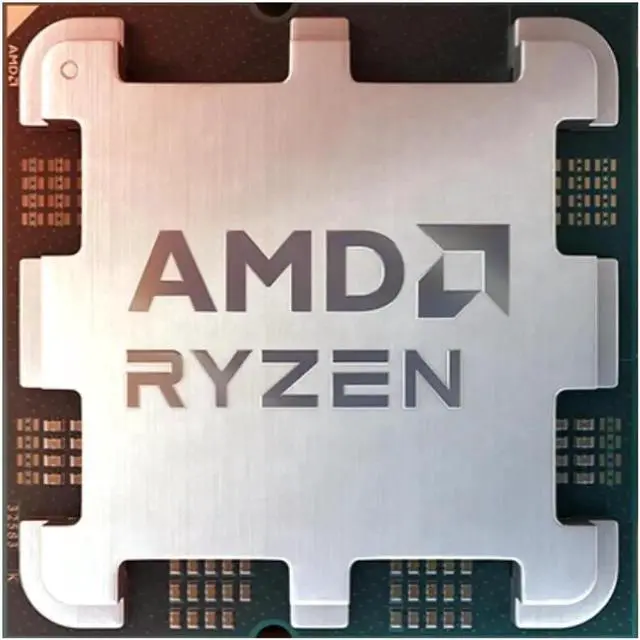

AMD Ryzen 7 9800X3D CPU
- CES 2025 Innovation Award Honoree: Recognized in the Computer Hardware & Components category for exceptional design and engineering
- Harness the ultimate gaming edge with AMD Ryzen 7 9800X3D, Unlock faster gaming with 2nd-gen AMD 3D V-Cache tech for low latency
- 8 Cores and 16 processing threads, based on AMD "Zen 5" architecture
- 5.2 GHz Max Boost, unlocked for overclocking, 96MB L3 Cache, 8MB L2 Cache, DDR5-5600 support
- For the state-of-the-art Socket AM5 platform, can support PCIe 5.0 on select motherboards
