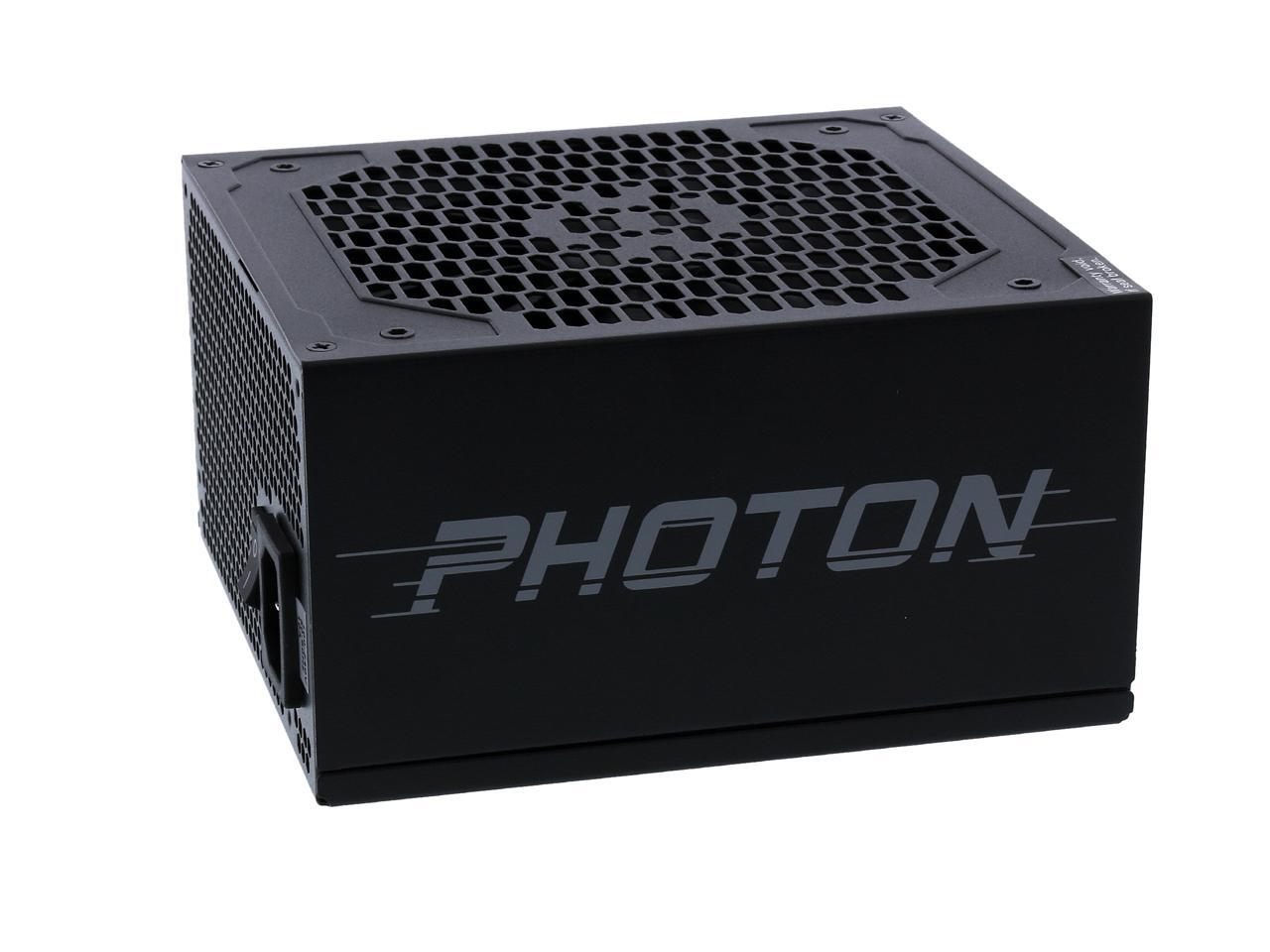

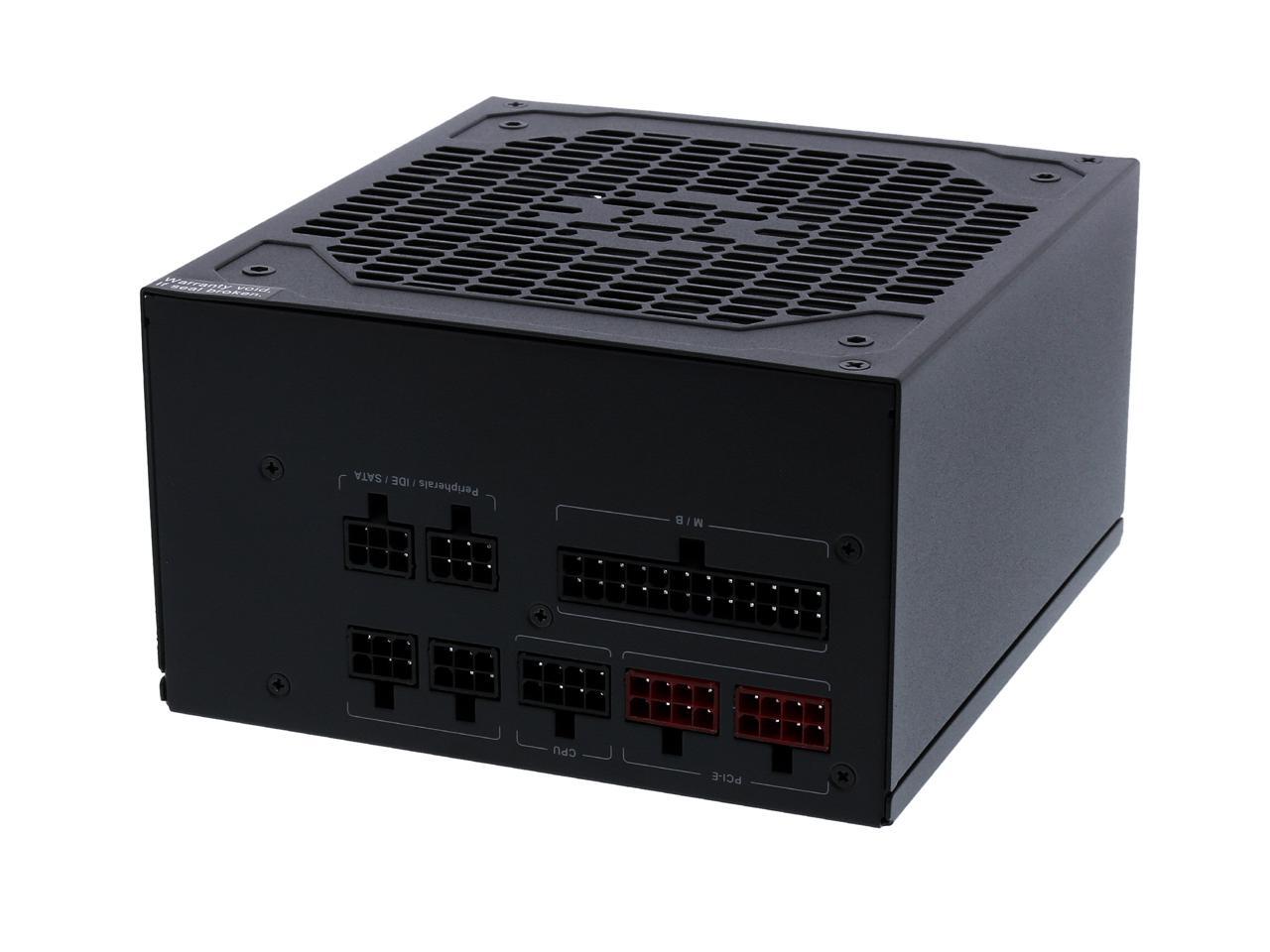

Main image of Rosewill PHOTON Series 750W Full Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Photon-750

100%

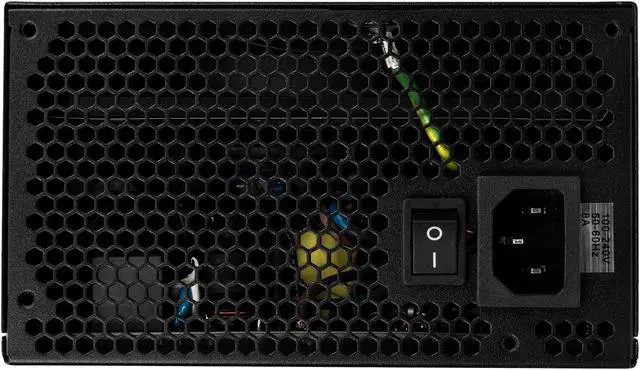

Alt view image 2 of 6 - Rosewill PHOTON Series 750W Full Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Photon-750

Alt view image 3 of 6 - Rosewill PHOTON Series 750W Full Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Photon-750

Alt view image 4 of 6 - Rosewill PHOTON Series 750W Full Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Photon-750

Alt view image 5 of 6 - Rosewill PHOTON Series 750W Full Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Photon-750

Alt view image 6 of 6 - Rosewill PHOTON Series 750W Full Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Photon-750

360^°

Customer images

Shop All Rosewill Products

Rosewill PHOTON Series 750W Full Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Photon-750

Name: Rosewill PHOTON Series 750W Full Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Photon-750
Brand: Rosewill
SKU: N82E16817182323
Rating: 4 (143 reviews)

(143)(1) Write a Review

750 Watt Power Supply
ATX 12V v2.31 / EPS12V v2.92
100 - 240VAC, 50/60 Hz
80 PLUS GOLD Certified
Full Modular Design
SLI & CrossFire Ready
Silent 135mm Fan
Strong Single +12V Rail

Please note that this product is non-returnable and non-refundable.

Overview

Specs

Reviews (143)

FEATURES

80 Plus Gold-Certified to Deliver over 90% Efficiency

Fully Modular Cable Management

ATX 12V V2.3 Ready, Supports EPS 12V 2.92 and Backwards Compatible with ATX 12V 2.01

Active Power Factor Correction (PFC) with PF Value of 0.99

Crossfire and SLI Support

Silent 135mm Fan with Auto Speed Control

100% High Quality Japanese Capacitors

Over Current / Voltage / Temperature / Power Protection, Under Voltage Protection and Short Circuit Protection

TUV, FCC, CE Certified

Extra-Long Cables Support Full Size Gaming Chassis

5-Year Warranty

SPECIFICATIONS

Model: PHOTON 750

AC Input	100 ~ 240VAC 10A 50/60Hz
DC Output
	+3.3V	+5V	+12V	-12V	+5VSB
	25A	25A	62.5A	0.3A	3A
	130W		750W	3.6W	15W
Total Power	750W

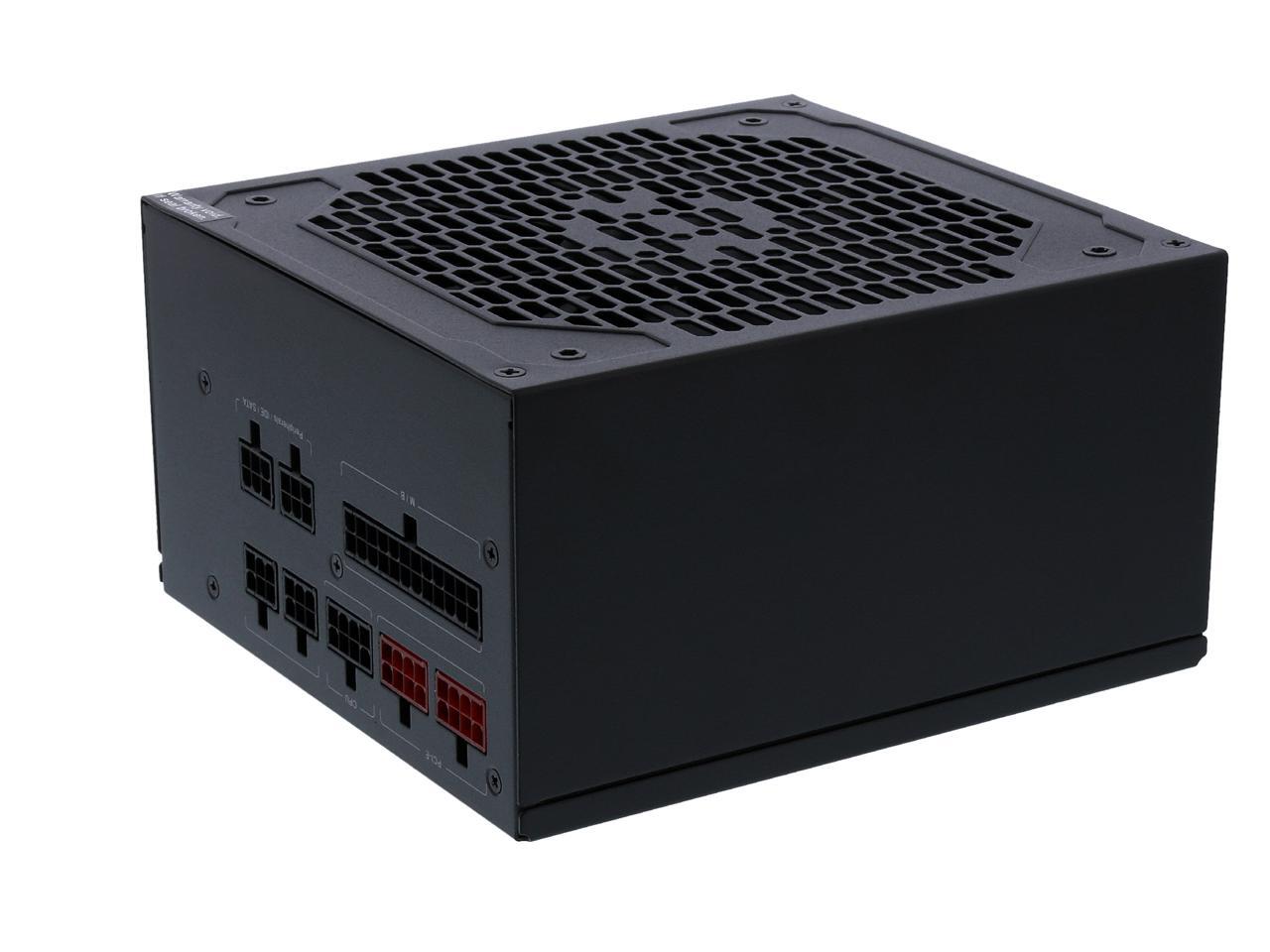

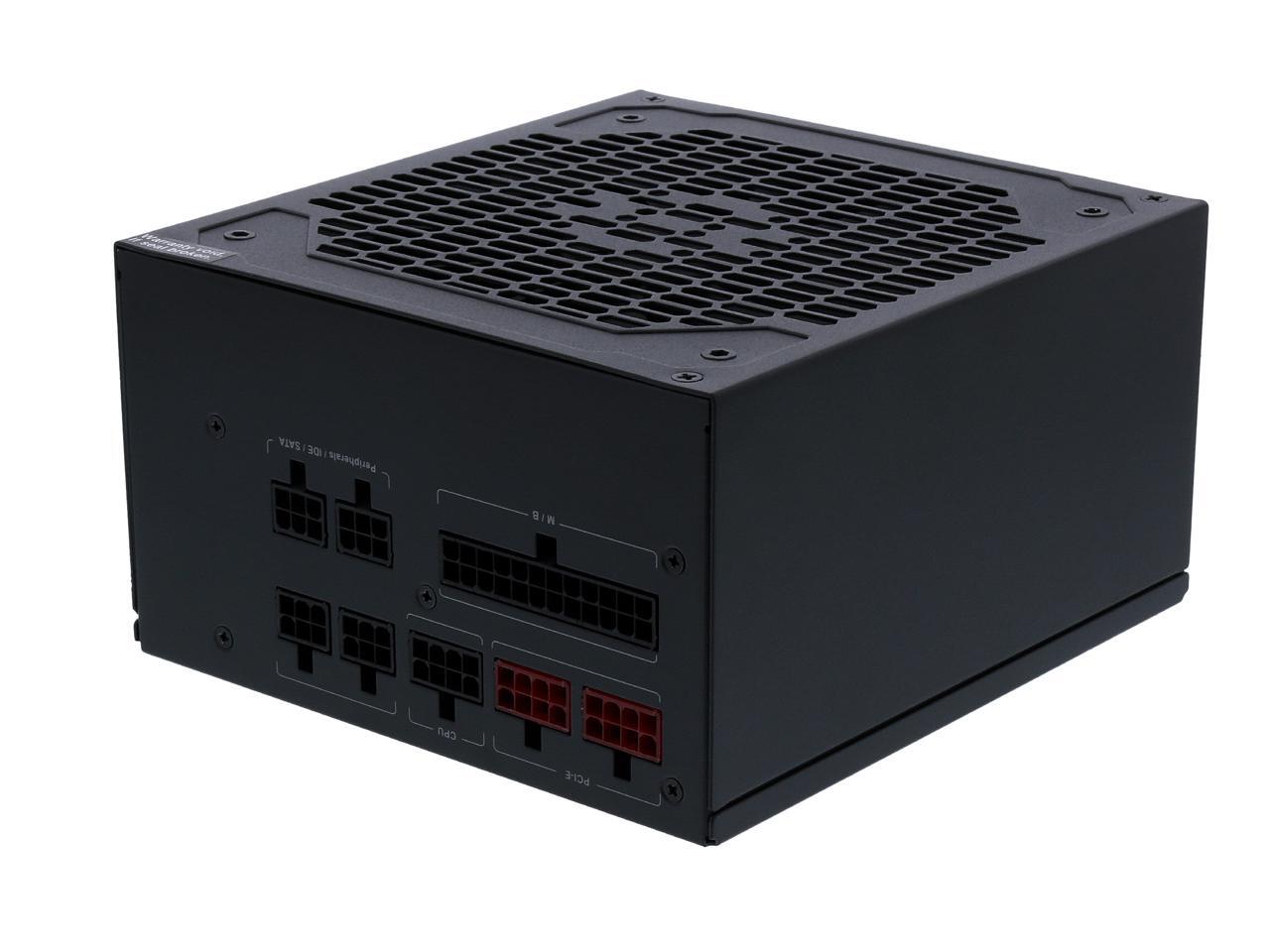

CONNECTORS

20+4 MainBoard Pin x1

+12V EPS 4+4-Pin Connector x1

6+2-Pin PCI-E Connector x4

S-ATA
Connector x8

4-Pin Molex
Peripheral Connector x4

4-Pin Floppy
Connector x1

PACKAGE CONTENTS

PHOTON Power Supply Unit
Modular Cable Set
Carry Bag
User Manual
AC Power Cord
Cable Tie
Four Mounting Screws

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: non-refundable

Return for replacement within: non-replaceable

Read full return policy for details.

Type	ATX12V v2.31 & EPS12V v2.92
Maximum Power	750 W
Fans	1 x Silent 135mm Fan with Auto Speed Control
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
SLI	SLI Ready
Haswell Support	Yes
CrossFire	CrossFire Ready
Max PSU Length	160 mm
Modular	Full Modular
Power Good Signal	100-500ms
Hold-up Time	16ms min.
Efficiency	Up to 92%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	+3.3V, +5V, +12V
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10 A
Output	+3.3V @ 22A, +5V @ 22A, +12V @ 62.5A, -12V @ 0.3A, +5VSB @ 3A
MTBF	100,000 hours at 25 degrees Celsius, max. load, nominal input
Approvals	TUV, cTUVus, CE, FCC certified

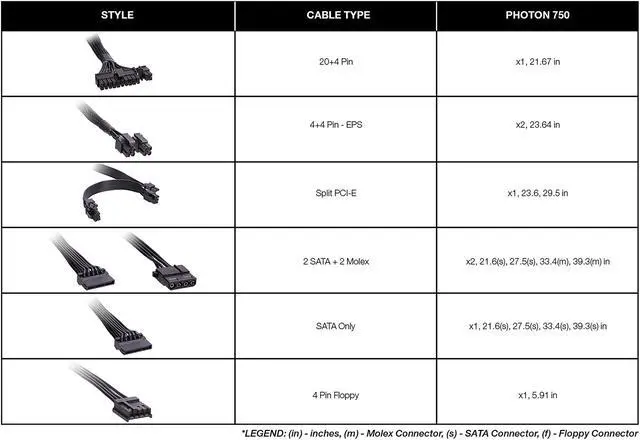

Connectors	Modular Cable: 1 x 20+4-Pin Main Connector 1 x 4+4-Pin ATX12V / EPS12V Connector 4 x 6+2-Pin PCI-E Connector 8 x 15-Pin SATA Connector 4 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector

Dimensions	3.39" x 5.91" x 6.30"
Weight	13.78 lbs.
