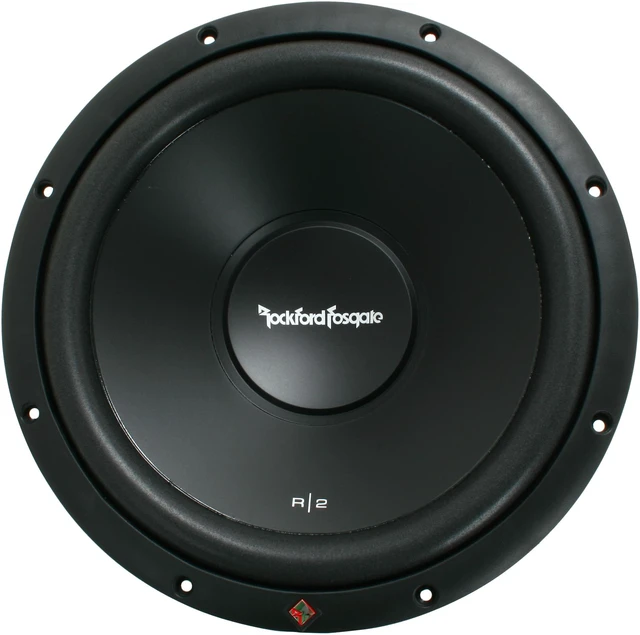

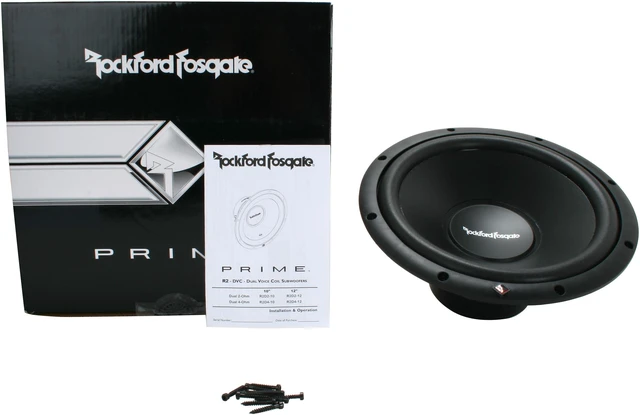

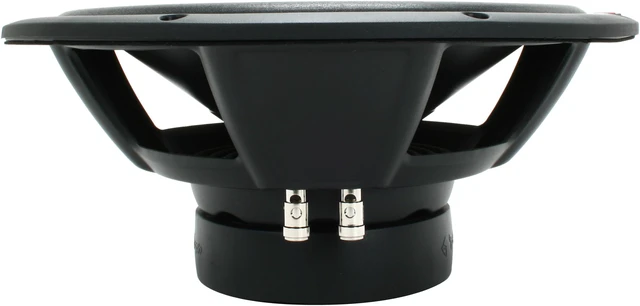

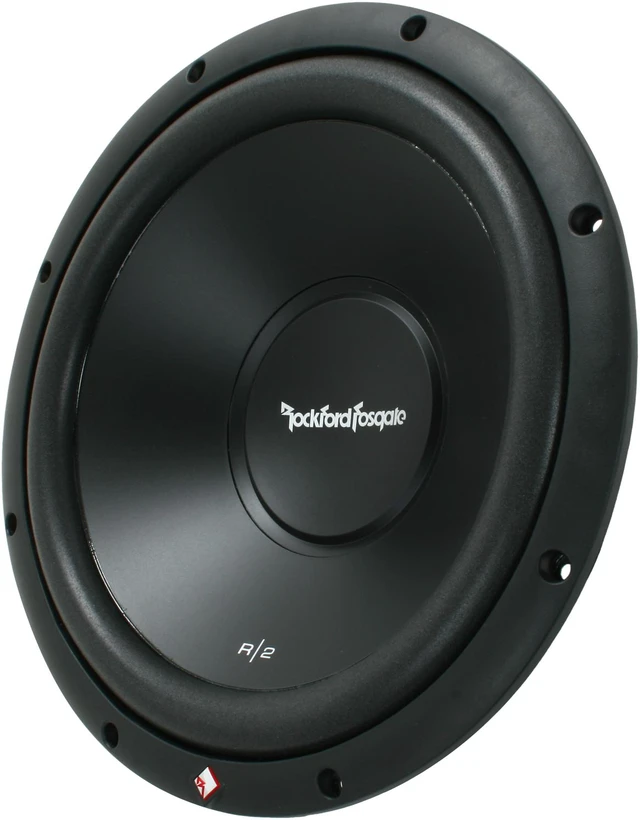

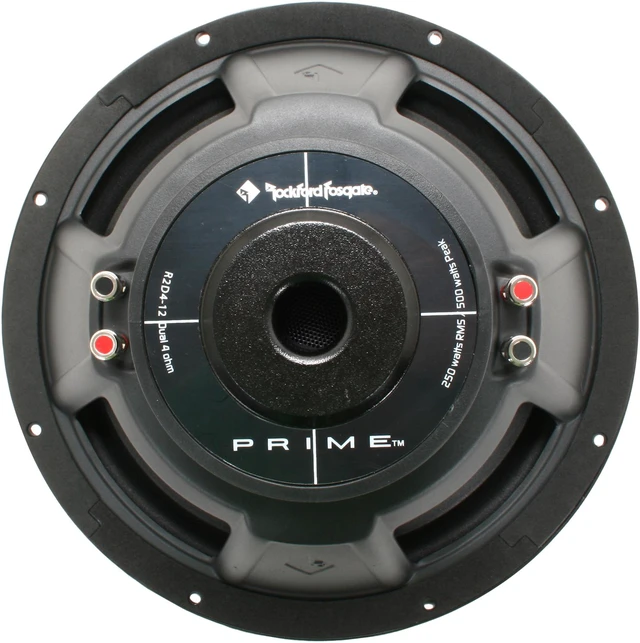

Rockford Fosgate R2D4-12 12" 500W Car Subwoofer
+
+
Overview
Specs
Reviews
Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 10" subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.
We are an Authorized ROCKFORD FOSGATE Dealer!
The ROCKFORD FOSGATE **R2D4-12** 12" 500W 4-Ohm DVC Prime R2 Car Audio Subwoofer can handle 500 Watts of MAX power and 250 Watts of RMS power. It uses an anodized aluminum voice coil former that provides superior heat dissipation (up to 100° at max power levels). It has the capacity to handle power under continuous demand, conforming to CEA-2031 industry standards, and the stitched tinsel leads improve reliability and performance by reducing fatigue and possible shorting.
The R2SD4-12 also features: a mica-injected polypropylene cone that provides clean and accurate bass, 12-gauge compression terminals, an integrated PVC trim ring, a liner spider with embedded 16-gauge tinsel leads, a StampCast basket with integrated spider venting that keeps the motor cool, and this sub is best suited for standard sealed enclosures. Receive large bass impact with the ROCKFORD FOSGATE **R2D4-12** 12" 500W 4-Ohm DVC Prime R2 Car Audio Subwoofer!
The ROCKFORD FOSGATE **R2D4-12** 12" 500W 4-Ohm DVC Prime R2 Car Audio Subwoofer can handle 500 Watts of MAX power and 250 Watts of RMS power. It uses an anodized aluminum voice coil former that provides superior heat dissipation (up to 100° at max power levels). It has the capacity to handle power under continuous demand, conforming to CEA-2031 industry standards, and the stitched tinsel leads improve reliability and performance by reducing fatigue and possible shorting.
The R2SD4-12 also features: a mica-injected polypropylene cone that provides clean and accurate bass, 12-gauge compression terminals, an integrated PVC trim ring, a liner spider with embedded 16-gauge tinsel leads, a StampCast basket with integrated spider venting that keeps the motor cool, and this sub is best suited for standard sealed enclosures. Receive large bass impact with the ROCKFORD FOSGATE **R2D4-12** 12" 500W 4-Ohm DVC Prime R2 Car Audio Subwoofer!
- NEW ROCKFORD FOSGATE **R2D4-12** 12" 500W 4-Ohm DVC Prime R2 Car Audio Subwoofer
- Power Handling (Max): 500 Watts
- Power Handling (RMS): 250 Watts
- 12-gauge compression terminals
- Integrated PVC trim ring
- Liner spider with embedded 16-gauge tinsel leads
- Anodized aluminum voice coil former
- StampCast basket with integrated spider venting
- Mica injected polypropylene cone
- Optimized for sealed and vented enclosures
- CEA-2031 Compliant
- Size: 12-Inches
- Nominal Impedance: Dual 4-Ohm
- Voice Coil Diameter: 2.0" (50mm)
- Magnet Weight: 47.7 oz. (1.45kg)
- Speaker Connector: Dual 12-Gauge Compression
- Fs (Hz): 34.9
- Re: 1.17-Ohms
- Le: 3.9mH
- Qms: 7.33
- Qes: 0.66
- Qts: 0.60
- Vas: 68.8 (Liters)
- Sd: 539.1 (cm2)
- Xmax: 10.0mm
- Sound Pressure Level (SPL): 89 (dB at 1w/1m)
- Cutout Diameter: 11.25 Inches (285 mm)
- Mounting Depth: 5.067 Inches (91.5 mm)
- Woofer Displacement: 0.046 Cubic Feet (1.10 Liters)
- Weight: 11.5 lbs (shipping)
- Condition: BRAND NEW!
- Part Number: **R2D4-12**
- Warranty: 2 years (1 Year Manufacturer + 1 Year VMInnovations Warranty)
