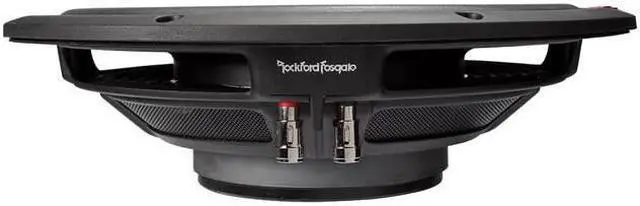

Rockford Fosgate R2SD2-12 Shallow 12" Prime R2 500 Watt 2-Ohm DVC Subwoofer

The **Rockford Fosgate R2SD2 12** 12" Prime R2 500 Watt 2 Ohm DVC Shallow Subwoofer is built to give you the bass you desire when space is limited. An elevated motor structure that reduces speaker depth allows it to fit into tight spaces. This subwoofer uses an anodized aluminum voice coil former that provides superior heat dissipation (up to 100° at max power levels). It has the capacity to handle power under continuous demand, conforming to CEA 2031 industry standards, and the stitched tinsel leads improve reliability and performance by reducing fatigue and possible shorting.

The R2SD2 12 also features: a mica injected polypropylene cone that provides clean and accurate bass, 12 gauge compression terminals, an integrated PVC trim ring, a liner spider with embedded 16 gauge tinsel leads, a Stamp
Cast basket with integrated spider venting that keeps the motor cool, and this sub is best suited for standard sealed enclosures. Receive large bass impact in small spaces with the Rockford Fosgate R2SD2 12 Prime R2 Shallow Subwoofer! Read more [here][1]
Read the manual [here][2] [1]:
http: //www. rockfordfosgate. com/rftech/library/2011/5_Subwoofers/RFPB_R2SD2 12 TS_RevB. pdf [2]:
http: //www. rockfordfosgate. com/rftech/library/2011/5_Subwoofers/1230_56711_01_PrimeR2Shallow
Sub MAN. pdf

• Brand New **Rockford Fosgate R2SD2 12** 12" Prime R2 500 Watt 2 Ohm DVC Shallow Subwoofer
• Power Handling (Max): 500 Watts
• Power Handling (RMS): 250 Watts
• **Features: **
• 12 gauge compression terminals
• Integrated PVC trim ring
• Liner spider with embedded 16 gauge tinsel leads
• Anodized aluminum voice coil former
• Stamp
  Cast basket with integrated spider venting
• Mica injected polypropylene cone
• Shallow motor assembly
• Optimized for sealed enclosures
• CEA 2031 Compliant
• **Specifications: **
• Size: 12 Inches
• Nominal Impedance: Dual 2 Ohm
• Voice Coil Diameter: 2.0" (50mm)
• Magnet Weight: 51 oz. ( 1.45 kg)
• Speaker Connector: Dual 12 Gauge Compression
• Re: 3.80 Ohms
• Le: 4.2 mH
• Qms: 9.00
• Qes: 0.71
• Qts: 0.66
• Vas: 65.4 (Liters)
• Sd: 534.8 (cm2)
• Xmax: 10.0 mm
• Frequency: 29.7H z
• Sound Pressure Level (SPL): 85 (dB at 1w/1m)
• Cutout Diameter: 11.25 Inches (285 mm)
• Mounting Depth: 3.602 Inches ( 91.5 mm)
• Woofer Displacement: 0.039 Cubic Feet ( 1.10 Liters)
• Weight: 11.5 lbs (shipping)
• Condition: BRAND NEW!
• Part Number: **R2SD2 12**
• Warranty: 1 Year manufacturer Warranty
• @[Video] (9qTIjf
  Ds6KQ)
