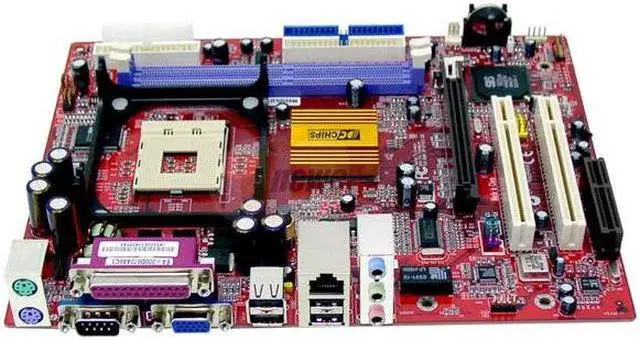

PC CHIPS M935DLU Socket 478 SiS 650GX Micro ATX Intel Motherboard
- SiS 650GX
- Pentium 4 / Celeron
- DDR 266
Specs
Reviews (3)
Learn more about the PCCHIPS M935DLU
| Brand | PC CHIPS |
|---|---|
| Model | M935DLU |
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 / Celeron |
| FSB | 533/400 MHz |
| Chipset | SiS 650GX |
|---|---|
| South Bridge | SiS 962L |
| Onboard Video Chipset | SiS Graphics Real256E |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 266 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 2X / 4X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 2 x PCI Slots |
| Other Slots | 1 x CNR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Audio Chipset | Realtek ALC101 |
|---|---|
| Audio Channels | 2 Channels |
| LAN Chipset | Realtek 8201BL PHY |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|
| First Listed on Newegg | January 09, 2004 |
|---|
