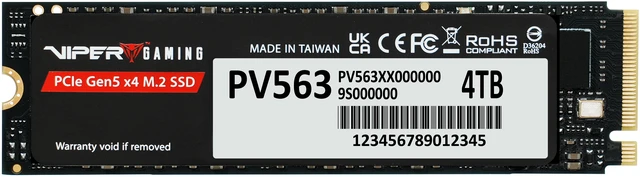

Patriot VIPER PV563 M.2 2280 4TB PCI-Express 5.0 x4 3D NAND TLC Internal Solid State Drive (SSD) PV563P4TBM28H
- PCIe Gen5 Interface: PCI-Express 5.0 x4 interface with NVMe 2.0 protocol for supported systems
- 4TB Capacity: Provides 4TB of internal SSD storage for consumer use
- Sequential Performance: Up to 14000 MBps read and up to 11000 MBps write speeds
- M.2 2280 Design: Single side SSD design for NB & hand held game console
- NAND Configuration: 3D NAND TLC with DRAM-Less design and HMB support
- Thermal Management: Intelligent Thermal Throttling, 4K LDPC ECC and Over-Provision support
+
+
Overview
Specs
Reviews
Overview
The Patriot VIPER PV563 is a 4TB internal solid state drive for consumer systems. Its M.2 2280 form factor, PCI-Express 5.0 x4 interface and NVMe 2.0 protocol provide a high-capacity storage solution for supported devices.
Key Features
- DRAM-Less design with HMB support
- 3D NAND TLC memory components
- 4K LDPC ECC support
- Support DirectStorage
- Intelligent Thermal Throttling
- Over-Provision support
Performance
The drive delivers up to 14000 MBps maximum sequential read and up to 11000 MBps maximum sequential write performance. Sustained random 4KB performance reaches up to 2000K IOPs for read and up to 1500K IOPs for write.
Design

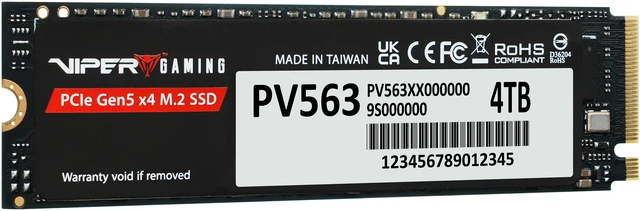

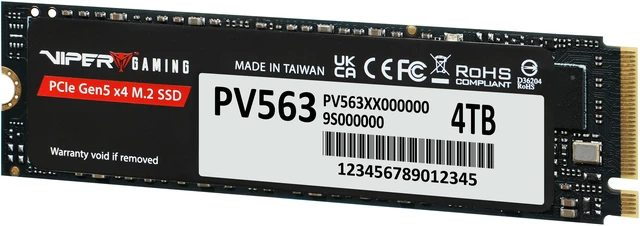

The SSD uses an M.2 2280 form factor and a single side SSD design. It is supplied without a heatsink and uses 3D NAND TLC memory components.
Connectivity & Compatibility
The drive uses a PCI-Express 5.0 x4 interface and NVMe 2.0 protocol. Its single side SSD design is specified for NB & hand held game console use. Supported operating systems are Windows® 7*/8.0*/8.1/10/11.
Reliability & Durability
The drive is rated at 3000TB Terabytes Written (TBW) and has an operating temperature range of 0°C ~ +70°C. Features include 4K LDPC ECC, Intelligent Thermal Throttling and Over-Provision support.
Software & Tools
The SSD supports DirectStorage.
Specifications
- Brand: Patriot
- Series: VIPER PV563
- Model: PV563P4TBM28H
- Part Number: PV563P4TBM28H
- Device Type: Internal Solid State Drive (SSD)
- Used For: Consumer
- Form Factor: M.2 2280
- Capacity: 4TB
- Memory Components: 3D NAND TLC
- Interface: PCI-Express 5.0 x4
- Protocol: NVMe 2.0
- Max Sequential Read: Up to 14000 MBps
- Max Sequential Write: Up to 11000 MBps
- Sustained Random 4KB Read: up to 2000K IOPs
- Sustained Random 4KB Write: up to 1500K IOPs
- Terabytes Written (TBW): 3000TB
- HeatSink: without HeatSink
- Operating Temperature: 0°C ~ +70°C
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.ca's Standard Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-800-9600
- Support Website
- View other products from Patriot Memory
LOADING...
The Patriot VIPER PV563 is a 4TB M.2 2280 PCIe 5.0 x4 NVMe 2.0 SSD rated for sequential reads up to 14,000 MB/s and writes up to 11,000 MB/s, making it suited to desktop users with a Gen5-compatible M.2 slot who need fast storage for large games and demanding workloads.
Recommended For
- PC builders with a PCIe 5.0 M.2 slot who move or load large media and project files and want very high sequential read bandwidth; testing found strong sequential reads, while real-world large-file copying was solid.
- Laptop, handheld, or small-form-factor PC owners who need a high-capacity M.2 2280 drive and value a single-sided design that fits space-constrained systems; check the host device’s capacity and thermal requirements before installation.
- Gamers expanding a PC game library who want 4TB of storage and a drive positioned for gaming and fast read-heavy use, rather than a drive chosen mainly for prolonged write workloads.
- Builders seeking a slim PCIe 5.0 SSD for a compatible system who mainly want high sequential reads and can use the motherboard’s M.2 heatsink when needed.
Real-World Use Scenarios
- When building a Gen5 desktop with a large game library, the 4TB capacity can keep more games installed on one internal drive; expect convenient storage, not a guaranteed jump in frame rates or dramatically shorter loads versus a fast NVMe SSD.
- When moving large video files or loading media for a high-resolution editing project, the PV563’s strong sequential-read capability can help with large-file transfers and access; editing performance still depends on the rest of the system and workload.
- When adding storage to a compatible compact laptop or handheld, the single-sided M.2 2280 design is intended to fit space-constrained systems; confirm the device supports this drive size and plan for adequate cooling.
- When copying large files or installing substantial software projects, the PV563 can make good use of a Gen5-capable system for sequential transfers; testing of the PV563 family found large-file copying reasonable, while operations involving many small files were less impressive.
- When upgrading a PCIe 4.0 system, the drive can still serve as additional NVMe storage, but it will operate within the host slot’s limits rather than delivering Gen5 bandwidth.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Consumer PCs, notebooks, and handheld game consoles needing high-capacity internal storage |
| Capacity | 4TB |
| Interface And Form Factor | M.2 2280 internal SSD with PCIe 5.0 x4 interface and NVMe 2.0 protocol; single-sided design |
| Memory And Drive Features | 3D NAND TLC with DRAM-less design, HMB support, 4K LDPC ECC, over-provisioning, DirectStorage support, and intelligent thermal throttling; no heatsink |
| Read Write Performance | Sequential read up to 14,000 MB/s and write up to 11,000 MB/s; sustained random 4KB read up to 2,000K IOPS and write up to 1,500K IOPS |
| Endurance And Warranty | 3,000TBW endurance with a 5-year warranty |
| Operating Conditions And Compatibility | Operating temperature: 0°C to +70°C; supports Windows 7, 8.0, 8.1, 10, and 11 |
| Model Identifiers | Patriot VIPER PV563; model and part number PV563P4TBM28H |
Reference Q&A
Q: Patriot Viper PV563 4TB or a 4TB PCIe 4.0 SSD for a PC?
A: Choose the PV563 if the PC supports PCIe 5.0 and you regularly move large files or run bandwidth-heavy workloads: its rated sequential speeds are up to 14,000 MB/s read and 11,000 MB/s write, versus up to 7,300/6,600 MB/s for the WD_BLACK SN850X 4TB. For a game library or everyday use, a PCIe 4.0 drive may be a more practical choice if it costs less; the extra sequential bandwidth is most relevant to demanding transfers and workloads.
Q: Patriot Viper PV563 4TB or Samsung 9100 PRO 4TB?
A: Choose the Samsung 9100 PRO if you want higher rated sequential speeds and an onboard DRAM cache: Samsung rates it at up to 14,800 MB/s read and 13,400 MB/s write, and it includes DRAM. Choose the PV563 if its up-to-3,000-TBW endurance rating, single-sided design, or 14,000/11,000 MB/s rated speeds better fit your build. Both are PCIe 5.0 M.2 2280 drives, so confirm your system supports Gen5 and provides suitable cooling.
Q: Patriot Viper PV563 4TB or Crucial T705 4TB?
A: Choose the Crucial T705 if its higher rated write speed and onboard DRAM are priorities: its 4TB model is rated up to 14,100 MB/s read and 12,600 MB/s write with DRAM. The PV563 is rated up to 14,000/11,000 MB/s, uses HMB rather than onboard DRAM, and has a single-sided design. Compare the price and your motherboard’s M.2 cooling before choosing; neither drive’s peak rating alone establishes which will be faster in every workload.
Q: Should I choose the PV563 2TB or 4TB?
A: Choose the PV563 4TB if you need more room for a large game library, media files, or active projects without adding another drive. The 2TB version is the more suitable capacity if it already covers your needs and you prefer to spend less; compare current prices before deciding, since the specifications provided here do not establish a price difference.
Q: Will this SSD work with my motherboard or laptop?
A: Check that your device has an M.2 2280 slot that supports NVMe PCIe SSDs. The PV563 uses PCIe 5.0 x4; the host device must also support PCIe 5.0 x4 to reach its rated maximum speeds. Confirm your device’s slot and clearance before buying.
Q: Does this SSD come with a heatsink?
A: No. The PV563 is listed without a heatsink. If your computer does not have an M.2 heatsink or other suitable cooling, check whether you need to buy a compatible one separately. The drive also includes intelligent thermal throttling.
Q: Is this SSD suitable for a laptop or handheld gaming device?
A: Its single-sided M.2 2280 design is specified for notebooks and handheld game consoles. Before buying, verify that the device supports an M.2 2280 NVMe PCIe drive and has enough clearance; the listing does not establish compatibility with any specific device.
Q: Is 4TB a good choice for gaming and large files?
A: The 4TB capacity can suit users who want substantial space for games, media, and project files. Its listed sequential speeds are up to 14,000 MB/s read and 11,000 MB/s write, but reaching those maximums requires a compatible PCIe 5.0 x4 system. The drive is DRAM-less and uses HMB support.
Q: Is the Patriot Viper PV563 worth choosing for gaming?
A: For gaming alone, its PCIe 5.0 speed may not justify paying more than for a suitable PCIe 4.0 SSD. A Reddit discussion about a build using the PV563 recommends prioritizing a lower-cost TLC SSD for a gaming-focused PC. The 4TB model may still suit buyers who specifically need its capacity or Gen5 interface.
Q: Is the PV563 a reasonable choice for a gaming-and-rendering PC?
A: It can fit a build for those uses, but the Reddit discussions do not establish that Gen5 storage is necessary for either. The 4TB model offers up to 14,000 MB/s sequential reads and 11,000 MB/s writes; whether those speeds are worthwhile depends on the workload and the price compared with a Gen4 alternative.
