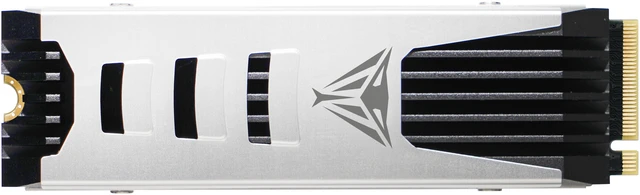

Patriot VIPER PV563 M.2 2280 4TB PCI-Express 5.0 x4 3D NAND TLC Internal Solid State Drive (SSD) PV563HP4TBM28H
- Capacity: 4TB internal solid state drive for consumer storage needs
- PCIe Interface: PCI-Express 5.0 x4 interface with NVMe 2.0 protocol
- Sequential Speed: Up to 14000 MBps read and up to 11000 MBps write performance
- Random I/O: Sustained random 4KB read up to 2000K IOPs and write up to 1500K IOPs
- Endurance: 3000TB Terabytes Written (TBW) rating for sustained storage workloads
- Thermal Design: M.2 2280 form factor with aluminum fin heatsink, Intelligent Thermal Throttling, DRAM-Less design and HMB support
+
+
Overview
Specs
Reviews
Overview
The Patriot VIPER PV563 is a 4TB internal solid state drive for consumer systems. It combines an M.2 2280 form factor, PCI-Express 5.0 x4 interface, NVMe 2.0 protocol and 3D NAND TLC memory components for high-capacity storage and listed sequential and random performance.
Key Features
- 4TB capacity for consumer storage needs
- PCI-Express 5.0 x4 interface and NVMe 2.0 protocol
- 3D NAND TLC memory components
- DRAM-Less design with HMB support
- Support DirectStorage
- Aluminum fin heatsink design improve 30%+ heat dissipation
Performance
The drive delivers max sequential read speeds up to 14000 MBps and max sequential write speeds up to 11000 MBps. Sustained random 4KB performance reaches up to 2000K IOPs for reads and up to 1500K IOPs for writes.
Design

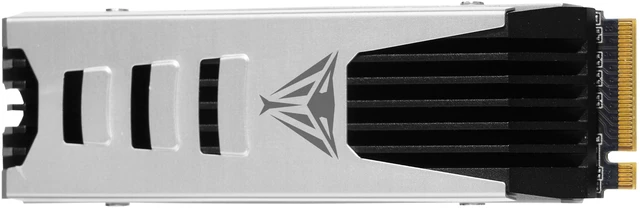

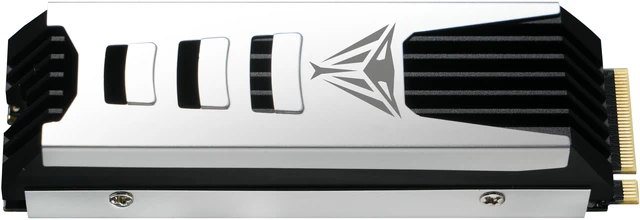

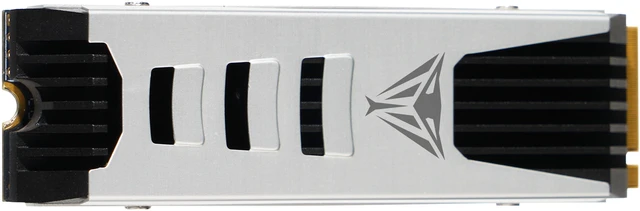

The M.2 2280 internal SSD includes a heatsink and aluminum fin heatsink design. Its memory components use 3D NAND TLC.
Connectivity & Compatibility
The drive uses a PCI-Express 5.0 x4 interface and NVMe 2.0 protocol. The listed supported operating systems are Windows® 7*/8.0*/8.1/10/11.
Reliability & Durability
The drive is specified with 3000TB Terabytes Written (TBW), 4K LDPC ECC and Intelligent Thermal Throttling. Operating temperature is 0°C ~ +70°C.
Specifications
- Brand: Patriot
- Series: VIPER PV563
- Model: PV563HP4TBM28H
- Part Number: PV563HP4TBM28H
- Device Type: Internal Solid State Drive (SSD)
- Used For: Consumer
- Form Factor: M.2 2280
- Capacity: 4TB
- Memory Components: 3D NAND TLC
- Interface: PCI-Express 5.0 x4
- Protocol: NVMe 2.0
- Max Sequential Read: Up to 14000 MBps
- Max Sequential Write: Up to 11000 MBps
- Sustained Random 4KB Read: up to 2000K IOPs
- Sustained Random 4KB Write: up to 1500K IOPs
- Terabytes Written (TBW): 3000TB
- HeatSink: with HeatSink
- Operating Temperature: 0°C ~ +70°C
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.ca's Standard Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-800-9600
- Support Website
- View other products from Patriot Memory
LOADING...
The Patriot VIPER PV563 is a 4TB M.2 2280 PCIe 5.0 x4 NVMe SSD with read speeds up to 14,000 MB/s and write speeds up to 11,000 MB/s, suited to high-performance desktop builds and demanding storage workloads.
Recommended For
- PC gamers with a PCIe 5.0 desktop build who want one 4TB drive for a large game library and fast game reads; the aluminum heatsink edition is intended for systems with room for its cooler.
- Desktop users moving large project files between fast PCIe 5.0 drives who value high sequential-read bandwidth and have a separate solution for frequent, long write jobs.
- PC builders who want a 4TB Gen5 M.2 drive with an integrated heatsink instead of relying on a motherboard M.2 heatsink, provided the slot and case have adequate clearance.
- Users planning frequent data writes who need a clearly rated endurance limit: Patriot specifies up to 3,000 TBW for the 4TB model, subject to the warranty’s TBW and time limits.
Real-World Use Scenarios
- When editing 4K footage or working with large media projects, use the PV563 as project storage to keep large files close at hand and speed up transfers; the benefit is most relevant when the rest of the system can also sustain fast storage speeds.
- When moving large files or game installations between fast internal drives, the PV563 can shorten transfer waits compared with slower storage, though real-world gains may be smaller than benchmark speed differences.
- For a PC game library that keeps growing, use the 4TB drive to store more games on one internal SSD; games may load quickly, but compared with a good Gen4 SSD, the Gen5 interface usually makes little difference to everyday gameplay or frame rates.
- For everyday PC use such as booting, launching apps, and switching between tasks, the PV563 can serve as a fast system drive, but a noticeable improvement over an existing quality NVMe SSD is not guaranteed.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Consumers seeking 4TB of high-speed NVMe storage for a system with an M.2 2280 PCIe 5.0 x4 slot |
| Capacity | 4TB |
| Interface And Form Factor | M.2 2280 internal SSD with a PCIe 5.0 x4 interface and NVMe 2.0 protocol |
| Read Write Performance | Sequential speeds up to 14,000 MB/s read and 11,000 MB/s write; sustained 4KB random performance up to 2,000K IOPS read and 1,500K IOPS write |
| Memory And Controller Features | 3D NAND TLC; DRAM-less design with HMB support, 4K LDPC ECC, DirectStorage support, and over-provisioning |
| Thermal Management | Includes an aluminum fin heatsink and intelligent thermal throttling; operating temperature range is 0°C to 70°C |
| Endurance And Warranty | Rated for 3,000TB written; 5-year warranty |
| Operating System Compatibility | Supports Windows 7, 8.0, 8.1, 10, and 11 |
| Model Identifiers | Patriot VIPER PV563; model and part number PV563HP4TBM28H |
Reference Q&A
Q: Patriot Viper PV563 4TB or Samsung 9100 Pro 4TB—which should I choose?
A: Choose the Samsung 9100 Pro if you prioritize higher published sequential speeds and an onboard DRAM cache: Samsung rates it at up to 14,800/13,400 MB/s read/write and lists 4GB of DRAM for the 4TB model. Choose the PV563 if its published 14,000/11,000 MB/s speeds, 3,000TBW endurance rating, and included heatsink match your needs. Both are PCIe 5.0 M.2 drives; these headline specifications alone do not establish which performs better in every workload.
Q: Is the PV563 4TB worth choosing over a Samsung 990 PRO 4TB for a gaming PC?
A: Choose the PV563 if your PC supports PCIe 5.0 and you want its higher published sequential-transfer ceiling: up to 14,000/11,000 MB/s, versus the 990 PRO’s up to 7,450/6,900 MB/s. Choose the 990 PRO if PCIe 4.0 support and an onboard DRAM cache matter more than Gen5 peak speeds; Samsung lists 4GB of DRAM in its 4TB model. For a gaming-focused purchase, compare the drives’ prices and your motherboard support rather than assuming the PV563’s higher sequential ratings will make games load proportionally faster.
Q: Should I upgrade from a Patriot Viper PV553 4TB to the PV563 4TB?
A: The PV563 has higher published sequential-read speed—up to 14,000 MB/s versus 12,400 MB/s for the PV553—but its listed write speed is lower: up to 11,000 MB/s versus 11,800 MB/s. Both are PCIe 5.0 M.2 2280 drives, and both 4TB models are listed at 3,000TBW. Consider the PV563 for a new build or if its other features suit your setup; the published specifications alone do not make a compelling case to replace a working PV553.
Q: Will this SSD work in a PCIe Gen 4 or Gen 3 M.2 slot?
A: The PV563 is an M.2 2280 NVMe drive with a PCIe 5.0 x4 interface. Its listed maximum speeds require a compatible Gen 5 slot; check your system’s documentation to confirm support and whether the drive can operate in an older-generation slot. If it does, speeds may be limited by that slot.
Q: Will the included heatsink fit my laptop or motherboard?
A: The PV563 includes an aluminum heatsink, so check the available M.2 clearance and your device’s installation guidance before buying. The M.2 2280 size alone does not confirm that a heatsink-equipped drive will fit every laptop or motherboard slot.
Q: Is this 4TB SSD a good choice for gaming and large project files?
A: It may suit users who need 4TB of internal storage and regularly move or load large files. The drive is rated for sequential reads up to 14,000 MB/s and writes up to 11,000 MB/s, but reaching those speeds requires a compatible PCIe 5.0 x4 system. For routine everyday tasks, that peak speed may not be essential.
Q: Is this SSD suitable for frequent large file writes?
A: The PV563 is rated for 3,000 TBW and includes a five-year warranty, which are useful figures when assessing write-heavy use. Actual suitability depends on your workload; check the warranty terms for applicable limits and coverage conditions.
