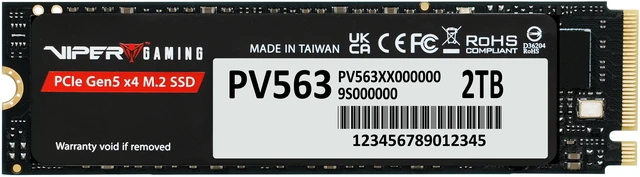

Patriot VIPER PV563 M.2 2280 2TB PCI-Express 5.0 x4 3D NAND TLC Internal Solid State Drive (SSD) PV563P2TBM28H
- Capacity: 2TB internal solid state drive for consumer storage needs
- PCIe 5.0 Interface: PCI-Express 5.0 x4 with NVMe 2.0 protocol
- Sequential Speed: Up to 14000 MBps read and up to 10000 MBps write
- Random Performance: Up to 2000K IOPs sustained random 4KB read and up to 1400K IOPs sustained random 4KB write
- Endurance: 1400TB terabytes written rating with 4K LDPC ECC and over-provision support
- Supported Features: DRAM-Less design, HMB support, DirectStorage support, intelligent thermal throttling, and Windows 7, 8.0, 8.1, 10, and 11 support
+
+
Overview
Specs
Reviews
Overview
The Patriot VIPER PV563 is a 2TB internal solid state drive for consumer systems. Its M.2 2280 form factor, PCI-Express 5.0 x4 interface, and NVMe 2.0 protocol provide a high-capacity storage solution for compatible systems.
Key Features
- 2TB capacity for internal consumer storage
- 3D NAND TLC memory components
- DRAM-Less design with HMB support
- 4K LDPC ECC, over-provision, and intelligent thermal throttling
- Single side SSD design for notebooks and handheld game consoles
- DirectStorage support
Performance
The drive delivers sequential read speeds of up to 14000 MBps and sequential write speeds of up to 10000 MBps. Sustained random 4KB performance reaches up to 2000K IOPs for read and up to 1400K IOPs for write.
Design

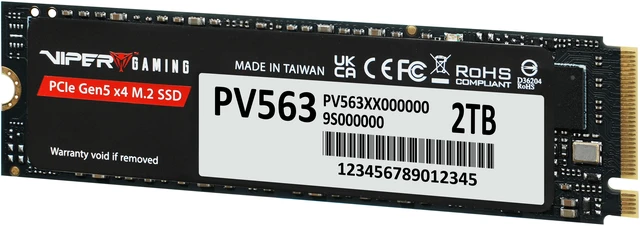

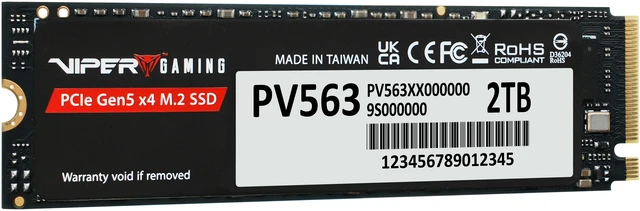

The SSD uses an M.2 2280 form factor and a single side design. It is supplied without a heatsink and has an operating temperature range of 0°C ~ +70°C.
Connectivity & Compatibility
The drive uses a PCI-Express 5.0 x4 interface and NVMe 2.0 protocol. Its single side design supports use in notebooks and handheld game consoles, and the supported operating systems are Windows 7, Windows 8.0, Windows 8.1, Windows 10, and Windows 11.
Reliability & Durability
The drive is rated for 1400TB terabytes written. Reliability-related features include 4K LDPC ECC, over-provision, and intelligent thermal throttling.
Software & Tools
The SSD supports DirectStorage.
Specifications
- Brand: Patriot
- Series: VIPER PV563
- Model: PV563P2TBM28H
- Part Number: PV563P2TBM28H
- Device Type: Internal Solid State Drive (SSD)
- Used For: Consumer
- Form Factor: M.2 2280
- Capacity: 2TB
- Memory Components: 3D NAND TLC
- Interface: PCI-Express 5.0 x4
- Protocol: NVMe 2.0
- Max Sequential Read: Up to 14000 MBps
- Max Sequential Write: Up to 10000 MBps
- Sustained Random 4KB Read: up to 2000K IOPs
- Sustained Random 4KB Write: up to 1400K IOPs
- Terabytes Written (TBW): 1400TB
- HeatSink: without HeatSink
- Operating Temperature: 0°C ~ +70°C
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.ca's Standard Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-800-9600
- Support Website
- View other products from Patriot Memory
LOADING...
The Patriot VIPER PV563 is a 2TB M.2 2280 PCIe 5.0 x4 NVMe 2.0 SSD, suited to users with a compatible system who want high-speed storage for games, apps, and large files; it is rated for sequential reads up to 14,000 MB/s and writes up to 10,000 MB/s.
Recommended For
- Laptop or small-form-factor PC builders with a 2280 M.2 slot and limited clearance who need a single-sided SSD; confirm the device supports this drive’s 2280 length before buying.
- Users of a PCIe 5.0 desktop who regularly read or move large files and want a 2TB drive with high sequential-read capability for media and project data.
- PC gamers adding fast storage for a game library who also value quicker large-file transfers or installs; the Gen5 interface is more relevant to those tasks than to a noticeable improvement in most game load times.
Real-World Use Scenarios
- When upgrading a gaming PC, users can keep a large game library on the 2TB drive and expect quick game loads; the review found fast reads but noted that PCIe 5.0’s advantage may be modest in everyday use.
- For a PC used to open games, applications, and other stored files, the PV563 is best suited to read-heavy everyday work, where the review found it performed well in routine use.
- When moving large files, users can expect brisk transfers at first, but very long write jobs may slow after the drive’s fast cache is used; a review observed this behavior on the 1TB version.
- For occasional video or other large-media editing, the drive can serve as fast project storage, especially when much of the work involves reading existing files; repeated, extended writes may be less consistent.
- When adding storage to a compatible slim laptop or small-form-factor PC, the single-sided M.2 2280 design can ease fit in systems with tight clearance; users should still check the device’s supported drive size and cooling requirements.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Consumer systems, including notebooks and handheld game consoles, needing a 2TB internal SSD |
| Capacity | 2TB |
| Interface And Form Factor | M.2 2280 SSD using PCIe 5.0 x4 with NVMe 2.0 |
| Read Write Performance | Sequential reads up to 14,000 MB/s and writes up to 10,000 MB/s; random 4KB reads up to 2,000K IOPS and writes up to 1,400K IOPS |
| Endurance And Warranty | Rated for 1,400TB written, with a 5-year warranty |
| Drive Design And Features | 3D NAND TLC, DRAM-less with HMB support, single-sided design, 4K LDPC ECC, DirectStorage support, over-provisioning, and intelligent thermal throttling; supplied without a heatsink |
| Operating Compatibility | Supports Windows 7, 8.0, 8.1, 10, and 11; operating temperature range is 0°C to +70°C |
| Model Identifiers | Patriot VIPER PV563; model and part number PV563P2TBM28H |
Reference Q&A
Q: Patriot PV563 vs. PV593: which 2TB Gen5 SSD should I choose?
A: Choose the PV563 for its DRAM-less HMB design and single-sided layout, which Patriot positions for slim systems. Choose the PV593 if your workload includes frequent large writes: it has onboard DRAM and a higher rated sequential write speed of up to 13,000 MB/s, versus up to 10,000 MB/s for the PV563. These are manufacturer maximums, not guarantees of sustained real-world speed.
Q: Should I buy the PV563 or a PCIe 4.0 SSD like the Samsung 990 PRO?
A: Choose the PV563 if your motherboard supports PCIe 5.0 and you regularly move large files or want higher sequential-transfer ceilings: its rated maximum is 14,000 MB/s read and 10,000 MB/s write. The 990 PRO is a PCIe 4.0 alternative rated up to 7,450/6,900 MB/s; it is a practical choice for a Gen4-only system or everyday gaming and desktop use where Gen5 bandwidth may not be useful.
Q: PV563 or Samsung 9100 PRO for a high-end PCIe 5.0 PC?
A: The PV563 is a fit for a single-sided, HMB-based Gen5 drive with rated speeds up to 14,000 MB/s read and 10,000 MB/s write. The Samsung 9100 PRO has onboard DRAM and higher rated sequential peaks—up to 14,800 MB/s read and 13,400 MB/s write—so compare it when dedicated cache and higher maximum write throughput matter more than the PV563’s stated configuration. Actual performance depends on the system and workload.
Q: Will the PV563 fit my laptop or handheld gaming PC?
A: The PV563 is an M.2 2280, single-sided SSD, so it can suit a compatible slim laptop or small-form-factor system. Check the device’s supported drive length and interface before buying: a 2280 drive will not fit a slot that accepts only the shorter M.2 2230 form factor. Patriot lists handheld compatibility, but the device’s physical slot requirements still determine fit.
Q: Will this SSD work in my laptop or handheld gaming device?
A: It may fit systems that support an M.2 2280 NVMe drive; the PV563 is single-sided and has no built-in heatsink. Check the device’s drive-size, interface, and clearance requirements before buying. A system with a slower PCIe generation may also limit its speed.
Q: Does this SSD need a heatsink?
A: The PV563 does not include a heatsink. For a desktop motherboard, check whether its M.2 slot has a compatible heatsink; for a laptop or handheld, confirm that the device’s cooling arrangement and clearance support this drive. The product lists intelligent thermal throttling, but does not specify that a separate heatsink is included.
Q: Will it reach its advertised speed in my computer?
A: The PV563’s listed maximum sequential speeds—up to 14,000 MB/s read and 10,000 MB/s write—require a compatible PCIe 5.0 x4 NVMe system. It may work in a compatible system with an earlier PCIe generation, but the host interface can limit performance; check the computer or motherboard specifications.
Q: Is this a good choice for gaming and large file transfers?
A: Its 2TB capacity and high listed sequential speeds suit game libraries and workloads involving large file transfers, provided the system supports PCIe 5.0 x4. The drive is DRAM-less with HMB support, so buyers who prioritize a dedicated DRAM cache should factor that trade-off into their decision.
Q: Is the Patriot Viper PV563 worth choosing over a cheaper Gen4 SSD for gaming or rendering?
A: It depends on the workload and price. In Reddit build discussions mentioning the PV563, commenters questioned whether Gen5 is needed for gaming and rendering and suggested considering a larger or less expensive Gen4 drive. The PV563’s listed peak speeds are up to 14,000 MB/s read and 10,000 MB/s write, but those figures alone don’t show how much faster it will feel in a particular use.
Q: Will the Patriot Viper PV563 work in the Ryzen 7 7800X3D and B850 build discussed on Reddit?
A: The Reddit thread includes this PV563 model in a build using a Gigabyte B850M motherboard, and commenters generally considered the listed build compatible. That discussion is not a drive-specific compatibility test. Before buying, confirm the exact motherboard has an available M.2 2280 NVMe slot; the drive is PCIe 5.0 x4 and may depend on the slot for its full listed speed.
