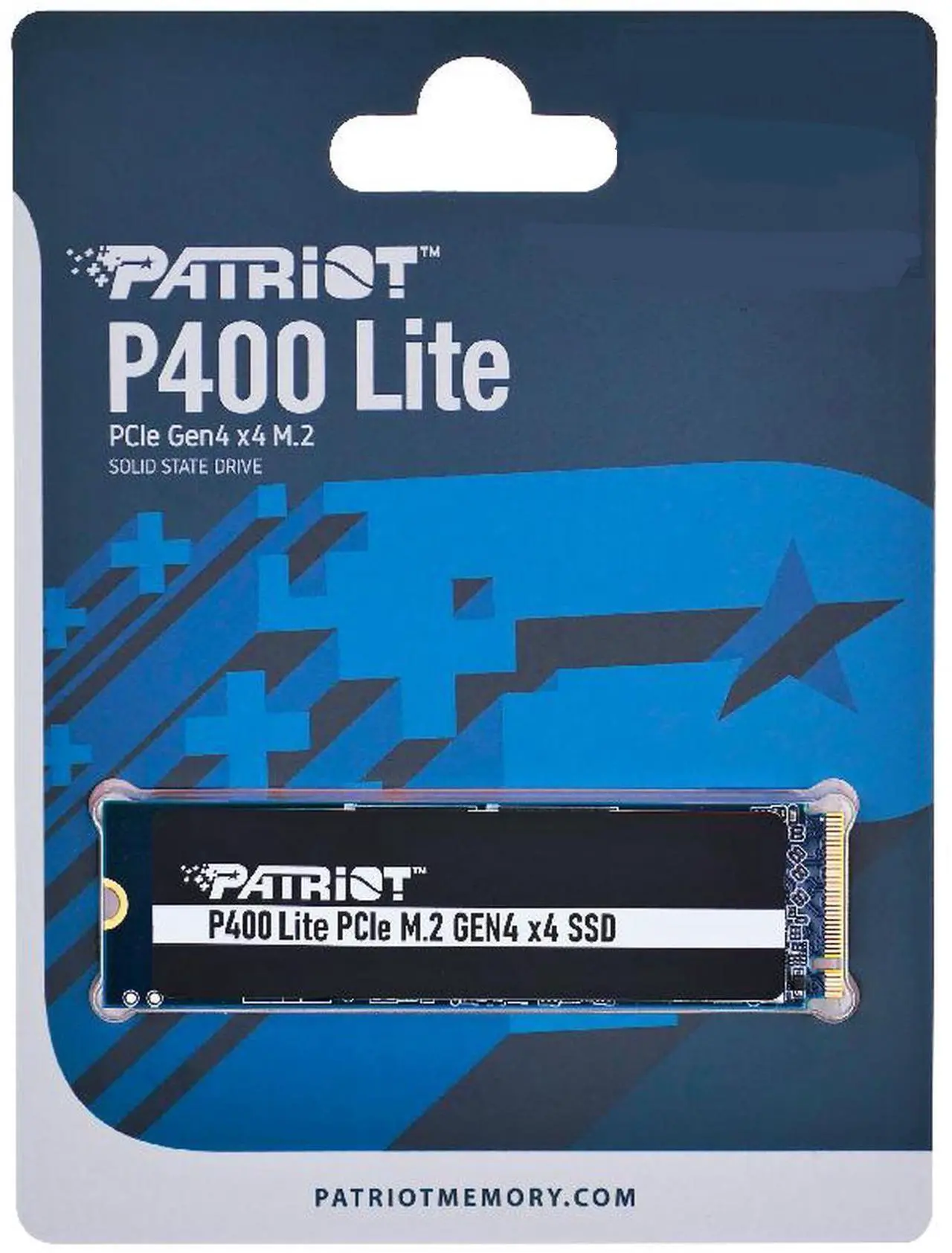

Main image of Patriot P400 Lite M.2 PCIe Gen 4 x4 SSD - 2TB Solid State Drive - P400LP2KGM28H Up to 3,500MB/s

Alt view image 2 of 7 - Patriot P400 Lite M.2 PCIe Gen 4 x4 SSD - 2TB Solid State Drive - P400LP2KGM28H Up to 3,500MB/s

Alt view image 3 of 7 - Patriot P400 Lite M.2 PCIe Gen 4 x4 SSD - 2TB Solid State Drive - P400LP2KGM28H Up to 3,500MB/s

Alt view image 4 of 7 - Patriot P400 Lite M.2 PCIe Gen 4 x4 SSD - 2TB Solid State Drive - P400LP2KGM28H Up to 3,500MB/s

Alt view image 5 of 7 - Patriot P400 Lite M.2 PCIe Gen 4 x4 SSD - 2TB Solid State Drive - P400LP2KGM28H Up to 3,500MB/s

Alt view image 6 of 7 - Patriot P400 Lite M.2 PCIe Gen 4 x4 SSD - 2TB Solid State Drive - P400LP2KGM28H Up to 3,500MB/s

Alt view image 7 of 7 - Patriot P400 Lite M.2 PCIe Gen 4 x4 SSD - 2TB Solid State Drive - P400LP2KGM28H Up to 3,500MB/s

Shop All Patriot Memory Products

Patriot P400 Lite M.2 PCIe Gen 4 x4 SSD - 2TB Solid State Drive - P400LP2KGM28H Up to 3,500MB/s

(1) Write a Review

Capacity: P400 Lite Gen 4

P400 Lite Gen 4
P410 Gen 4

speed: 2TB 3,500MB/s

1TB 3,500MB/s
1TB 5,000MB/s
2TB 3,500MB/s
2TB 5,000MB/s
4TB 3,500MB/s

PCIe 4.0 x4: M.2 2280 NVMe 2.0 solid state drive built with a PCIe Gen4 x4 controller for compatible consumer systems
Sequential Read: Up to 3,500 MBps for faster data access and application loading
Sequential Write: Up to 2,700 MBps for quick data transfers and content workloads
Thermal Control: Slim Graphene heatshield, embedded thermal sensor, and thermal throttling technology support temperature management at 0°C to +70°C
Data Protection: SmartECC technology and End-to-End Datapath Protection, with Host Memory Buffer support and compatibility with PS5

Overview

Specs

Reviews (1)

P400 Lite

M.2 SOLID STATE DRIVE

P400 Lite PCIe Gen4 x4 M.2 2280 SSD

The P400 Lite PCIe Gen4 x4 M.2 2280 SSD is the latest in Patriot’s high-speed PCIe Gen 4 x4 M.2 storage solutions. Featuring low power consumption, multi-application uses and highly compatible M.2 2280 specification for easy installation, the P400 Lite PCIe Gen4 x4 M.2 2280 SSD offers excellent reliability for all users. With large storage capacities, faster data access, quick transfer speeds and an improved graphene heatshield for temperature dissipation, the P400 Lite PCIe Gen4 x4 M.2 2280 SSD offers sharp performance with zero compromise for quality.

FEATURES

Built with the latest PCIe 4X4 controller
PCIe Gen4 x4 NVMe 1.4 M.2 2280 SSD
Sequential Read (Max^1*): Up to 3,500MB/s
Sequential Write (Max^1*): Up to 2,700MB/s
Capacity: 250GB~4000GB
Thermal Throttling Technology

End-to-End Datapath Protection
Operating Temperature: 0 ~ 70°C
High efficiency slim Graphene heatshield
SmartECC technology
O/S Supported: Windows® 7/8/8.1/10 (May require driver)
5-year warranty

Notes:

* All pictures are for demonstration only. The graphics on the SSD may differ.

1. Actual performance may vary due to available SSD capacity, system hardware and software components, and other factors.

Overview

The Patriot Viper P400 Lite is a 2TB M.2 2280 solid state drive for consumer systems. Its PCIe 4.0 x4 interface, NVMe 2.0 protocol, and up to 3,500 MBps sequential read speed support faster data access for gaming, video editing, creative projects, and multi-application use.

Key Features

2TB storage capacity
PCIe 4.0 x4 interface with NVMe 2.0 protocol
Up to 3,500 MBps sequential read and up to 2,700 MBps sequential write
Slim Graphene heatshield with thermal throttling technology
SmartECC technology and End-to-End Datapath Protection

Performance

The drive delivers sequential read speeds of up to 3,500 MBps and sequential write speeds of up to 2,700 MBps. It uses Host Memory Buffer support and has no DRAM cache.

Design

The M.2 2280 form factor supports installation in compatible systems. A high-efficiency slim Graphene heatshield helps with temperature dissipation, while the drive is specified without a heatsink.

Connectivity & Compatibility

The drive uses a PCIe 4.0 x4 interface and NVMe 2.0 protocol. It is compatible with PS5 and supports Windows® 7, Windows® 8.0, Windows® 8.1, Windows® 10, and Windows® 11. Windows® 7, 8.0, and 8.1 may require a driver.

Reliability & Durability

Features include SmartECC technology, End-to-End Datapath Protection, an embedded thermal sensor, and thermal throttling technology. Operating temperature is 0°C to +70°C, and the rated Terabytes Written is 2000TB.

Specifications

Brand: Patriot
Series: Viper P400 Lite
Model: P400LP2KGM28H
Part Number: P400LP2KGM28H
Capacity: 2TB
Form Factor: M.2 2280
Interface: PCI-Express 4.0 x4
Protocol: NVMe 2.0
Cache: No DRAM (HMB)
Max Sequential Read: Up to 3500 MBps
Max Sequential Write: Up to 2700 MBps
Terabytes Written (TBW): 2000TB
Operating Temperature: 0°C ~ +70°C

Model
Brand	Patriot
Series	Viper P400 Lite
Model	P400LP2KGM28H
Part Number	P400LP2KGM28H
Used For	Consumer

Details
Form Factor	M.2 2280
Capacity	2TB
Interface	PCI-Express 4.0 x4
Protocol	NVMe 2.0
Cache	No DRAM (HMB)

Performance
Max Sequential Read	Up to 3500 MBps
Max Sequential Write	Up to 2700 MBps
Terabytes Written (TBW)	2000TB
HeatSink	without HeatSink

Features
Features	Built with the latest PCIe Gen4 x4 controller Compliant with NVMe 2.0 Support Host Memory Buffer Compatible with PS5 Support Toggle 5 and ONFi 5 mode Flash, up-to double data rate at 2400MT/s High efficiency slim Graphene heatshield Embedded thermal sensor for thermal throttling Operating Temperature: 0 ~ 70°C SmartECC technology • O/S Supported: Windows® 7/8.0/8.1/10/11

Environmental
Operating Temperature	0°C ~ +70°C

Additional Information
First Listed on Newegg	April 07, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.ca's Standard Return Policy.
Read full return policy for details.

Manufacturer Contact Info

The Patriot P400 Lite is a 2TB M.2 2280 PCIe 4.0 x4 NVMe SSD for desktop or laptop users seeking fast internal storage, with sequential speeds up to 3,500MB/s read and 2,700MB/s write. Its slim graphene heatshield and thermal throttling support suit everyday computing, gaming, and creative workloads.

Recommended For

PC gamers adding room for a sizable game library who want a 2TB internal drive for installs and everyday loading rather than a top-tier sequential-speed upgrade.
Desktop or laptop owners replacing or adding an M.2 2280 drive for Windows, applications, and routine file storage, provided their system supports PCIe NVMe.
ROG Xbox Ally owners seeking internal storage expansion: Patriot lists the P400 Lite as compatible with the handheld.
Budget-conscious PC builders who prioritize 2TB capacity and everyday responsiveness over premium-drive speeds; an independent 2TB test includes file-copy and benchmark results for this model.

Real-World Use Scenarios

When upgrading a PC from a hard drive, users can install Windows and everyday apps on the P400 Lite; the SSD-based system should feel more responsive during startup and app launches, though results depend on the rest of the PC.
For a PC game library, users can keep multiple games installed on the 2TB drive and load game files from SSD storage; actual load times vary by game and system.
When moving folders between drives or backing up large files, users can use the P400 Lite as an internal working or destination drive; its tested copy results cover large files as well as mixed game and program folders.
In a compatible laptop or desktop with an available M.2 2280 slot, users can add the P400 Lite for extra storage or replace an existing drive; check the device’s supported drive length and PCIe/NVMe compatibility before installation.

Spec Summary

Attribute	Value
Best For	Consumer internal storage for PC and laptop multimedia and gaming, with PS5 compatibility
Capacity	2TB (2000GB)
Interface And Form Factor	M.2 2280 SSD using PCIe Gen 4 x4 and NVMe 2.0
Read Write Performance	Sequential speeds up to 3,500 MB/s read and 2,700 MB/s write
Cache And Flash Features	No DRAM; uses Host Memory Buffer. Supports Toggle 5 and ONFi 5-mode flash up to 2400 MT/s, with SmartECC technology
Endurance	Rated for 2,000 TBW
Thermal Management	Slim graphene heatshield, embedded thermal sensor, and thermal throttling; operating temperature 0–70°C
Compatibility	Supports Windows 7, 8.0, 8.1, 10, and 11
Model Identifiers	Patriot Viper P400 Lite; model and part number P400LP2KGM28H
