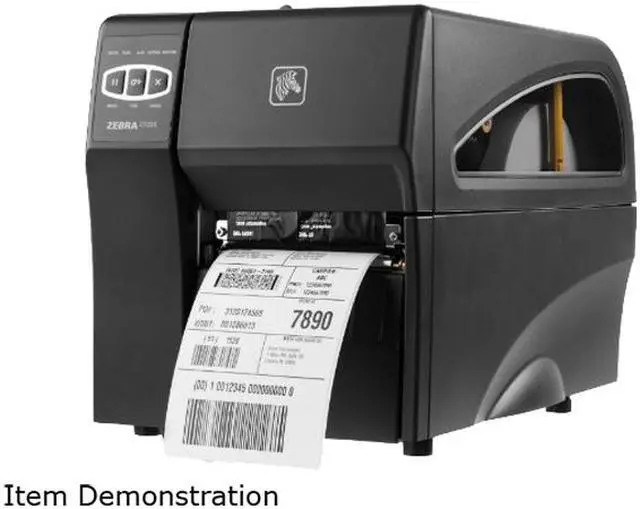

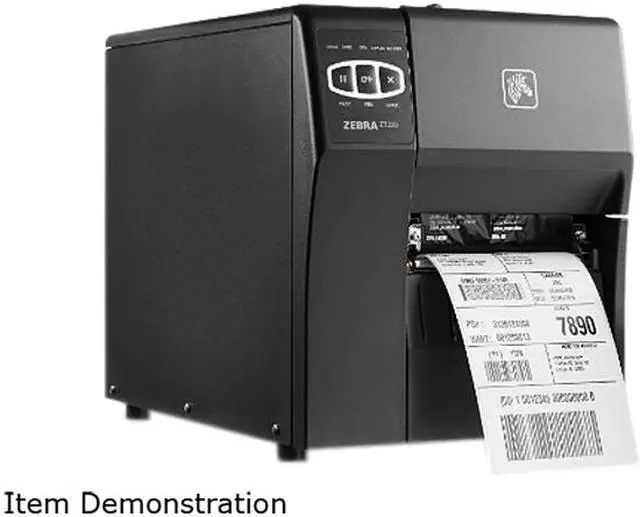

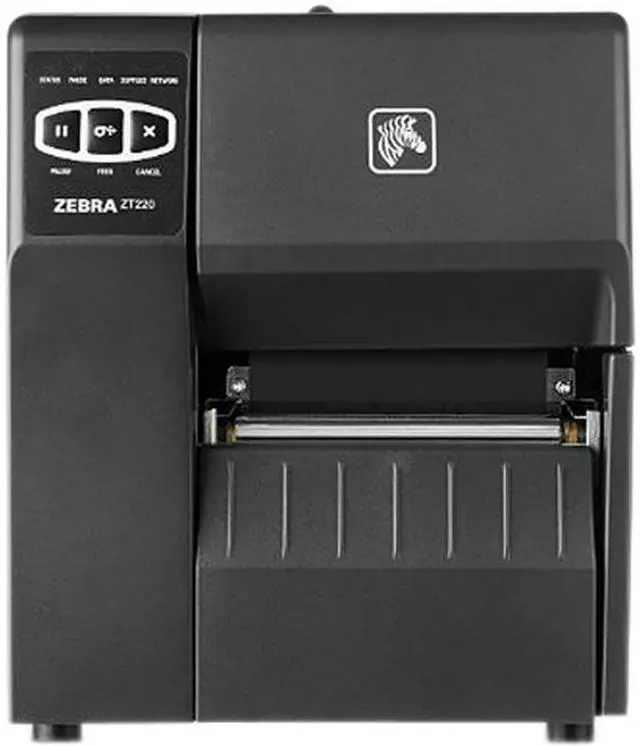

Zebra ZT230 4” Industrial Thermal Transfer Label Printer, LCD, 300 dpi, Serial, USB, Int 10/100, ZPL, XML Support, BAA/TAA, US Cord - ZT23043-T01200GA

300 dpi @ 6 ips
32bit 400MHz, 128MB RAM/128MB Flash
Icon-based LCD multilingual graphical user interface & full function keypad
Rugged all-metal case for long-lasting use
Thermal Transfer core-to-core ribbon handling system
Ribbon width: 1.57" to 4.33"
Max. ribbon length/roll size: 984'/2.7” OD on a 1” core
Thin film printhead w/ E3 Element Energy Equalizer
Dual media sensors, transmissive & reflective sensing technology, selectable through software or front panel
Side-loading metal print mechanism w/ head-open lock withstands general wear & tear & facilitates media loading
Robust gold user touch points simplify operation by directing user to key areas for adjustment
Space saving design w/ unique bi-fold door (requires 4” of opening space)
Tool-less platen & printhead removal for easy cleaning & replacement
Supports 10/100 Ethernet networks internally integrated option that enables the use of ZebraLink WebView & Alert features

Specs

Reviews

General
Brand	Zebra
Model	ZT23043-T01200GA

Printer
Print Technology	Direct Thermal
Printer Type	Industrial
Print Speed	6" / 152 mm per second
Max Resolution(B&W)	300 dpi/12 dots per mm
Memory	128 MB RAM, 128 MB Flash memory
Barcode Type	Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2-Dimensional: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)

Media Handling
Media Type	Continuous, die-cut, notch, black mark

Connections
Interface	Ethernet / Serial / USB

Features
Features	Construction: metal frame with choice of metal (ZT230) or plastic (ZT220) media cover Bi-fold media door with large clear window Side-loading supplies path for simplified media and ribbon loading Element Energy Equalizer(E3?) for superior print quality Bi-color LEDs for quick printer status Icon-based LCD multilingual graphical user interface and full function keypad (ZT230) Simple keypad (ZT220) USB 2.0 and RS-232 Serial ports ENERGY STAR qualified

Dimensions & Weight
Dimensions	10.90" x 9.50" x 17.00"
Weight	20.00 lbs.

Additional Information
First Listed on Newegg	May 12, 2023

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
