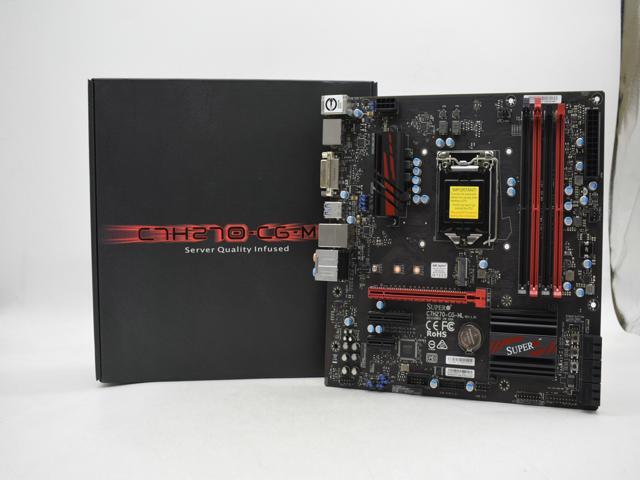

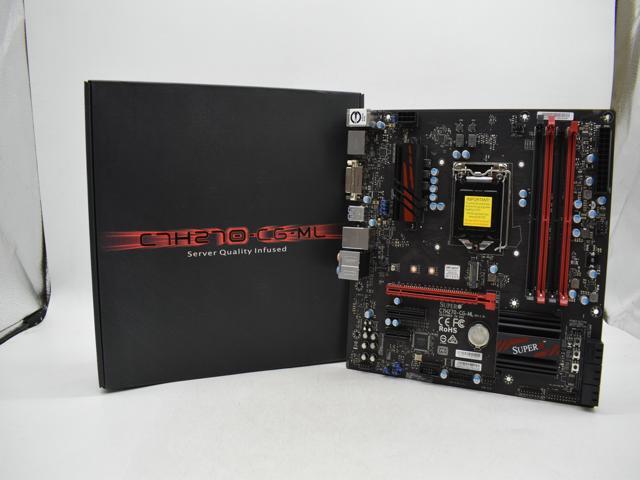

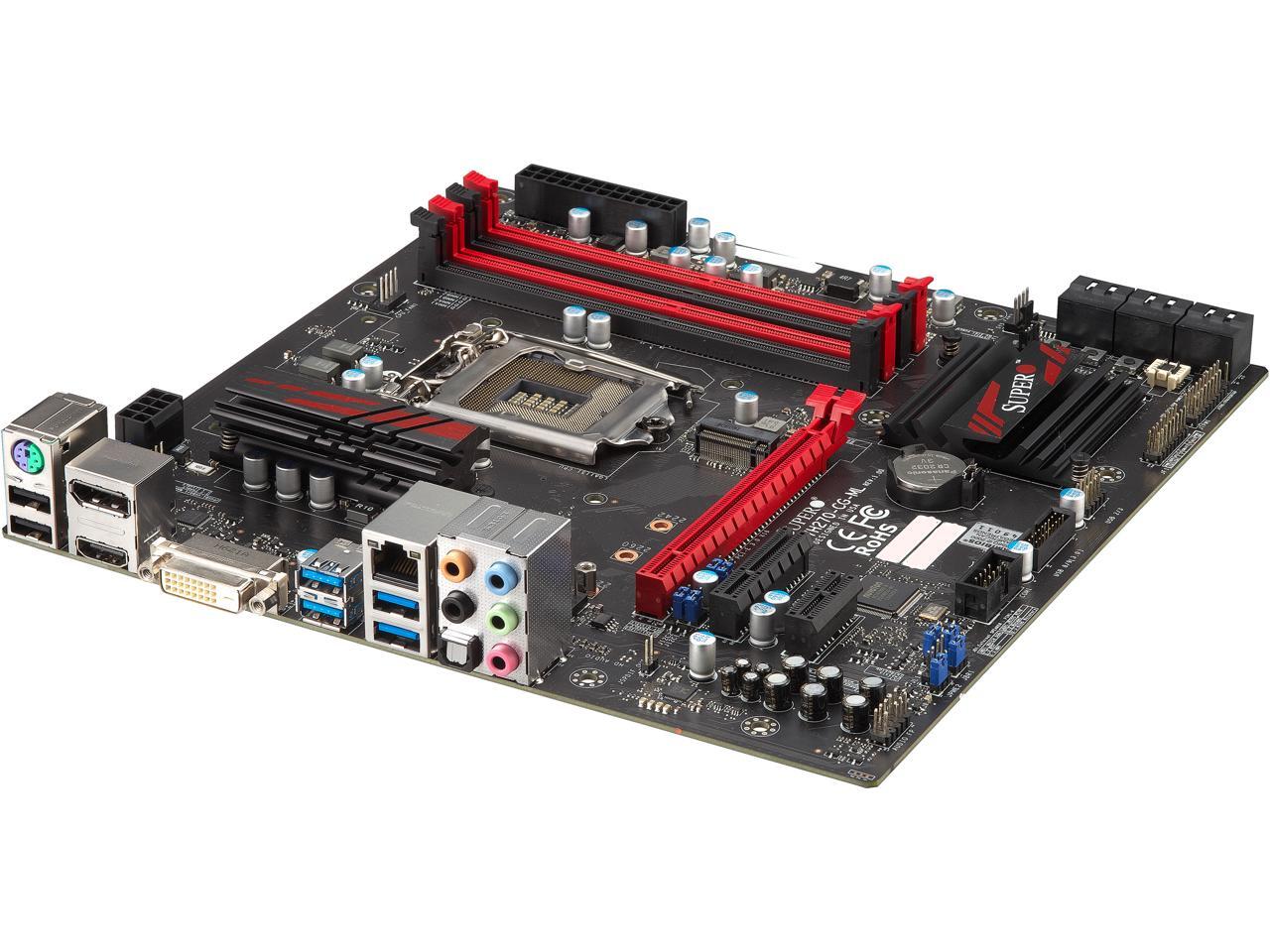

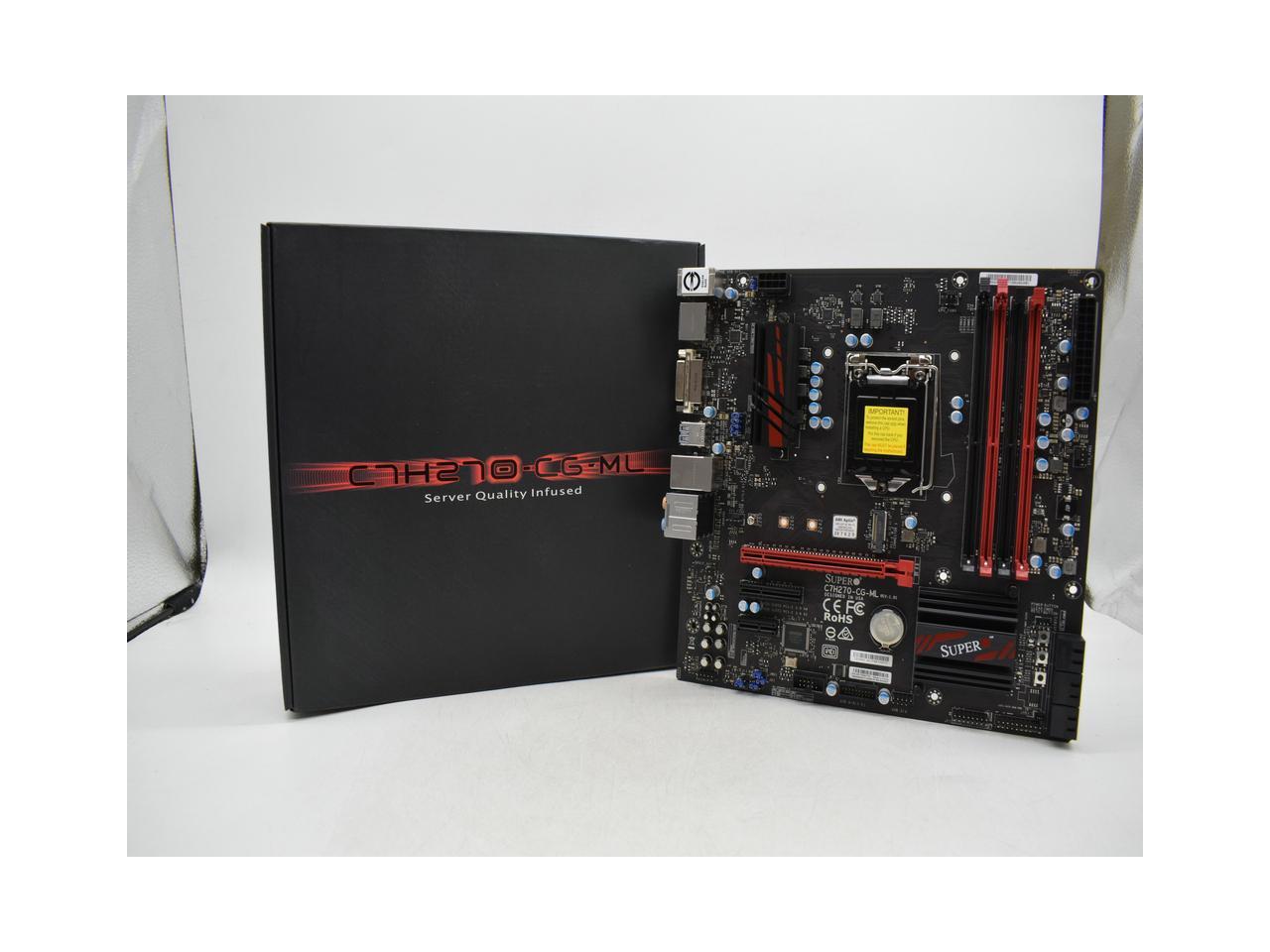

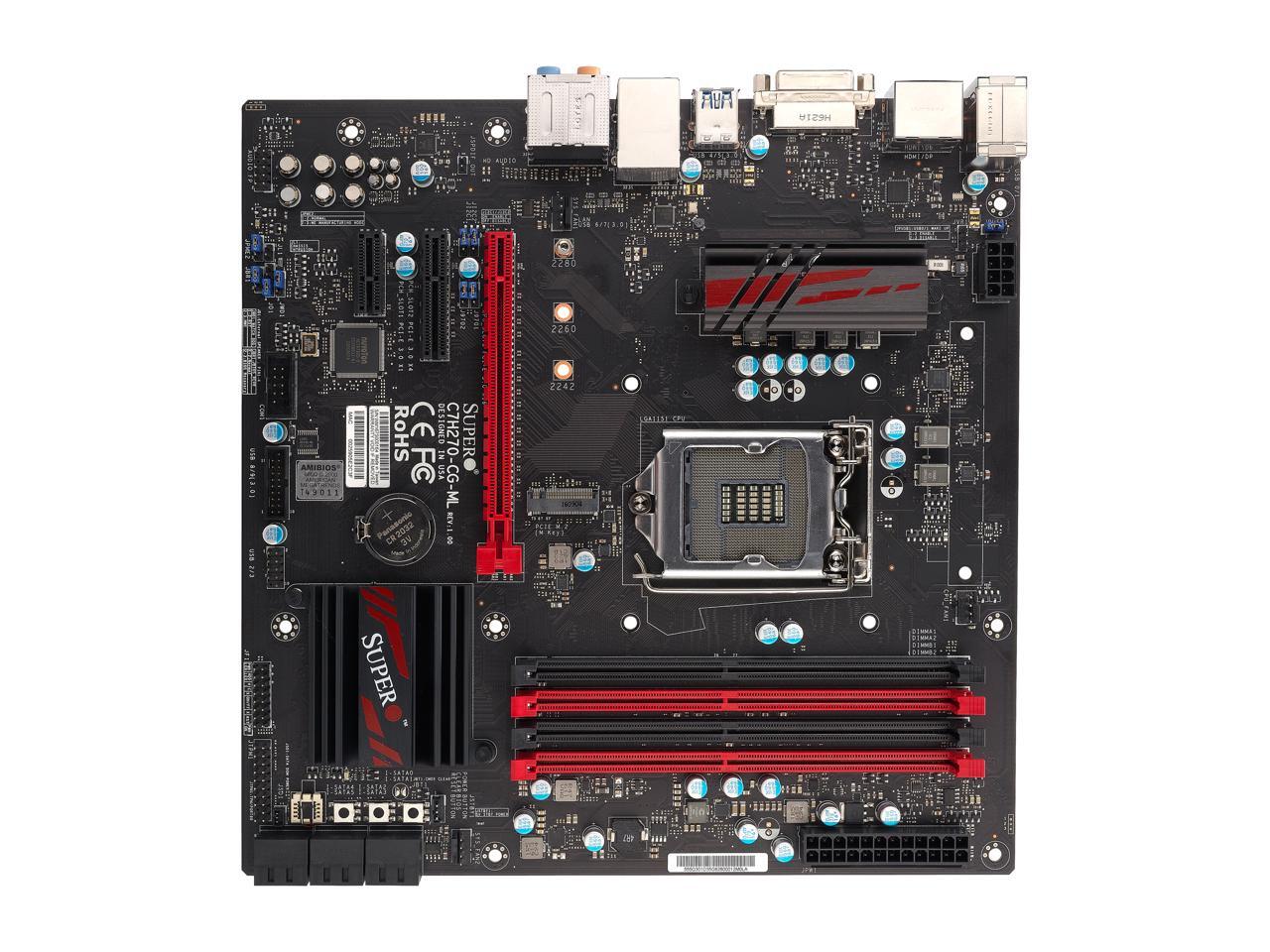

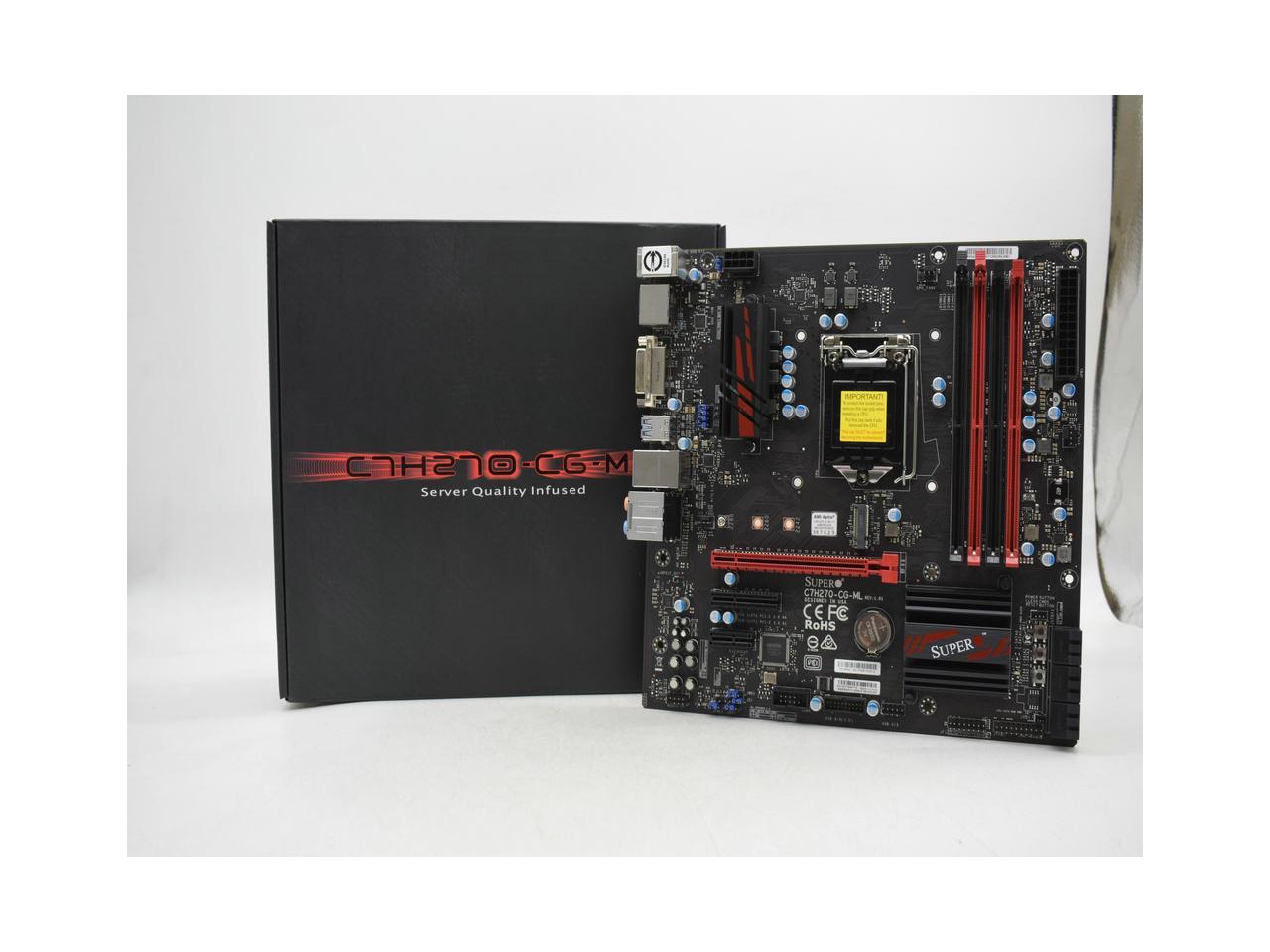

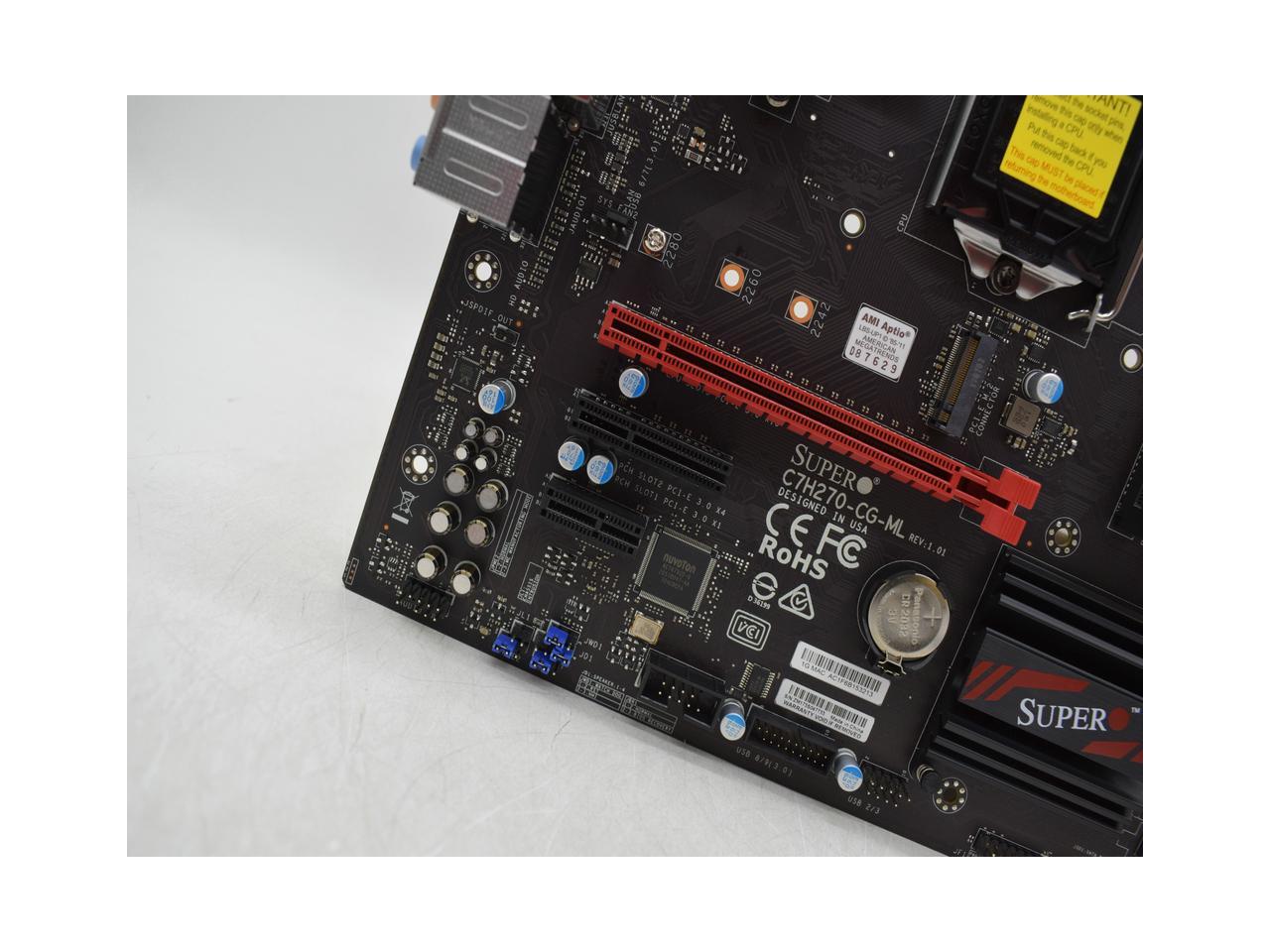

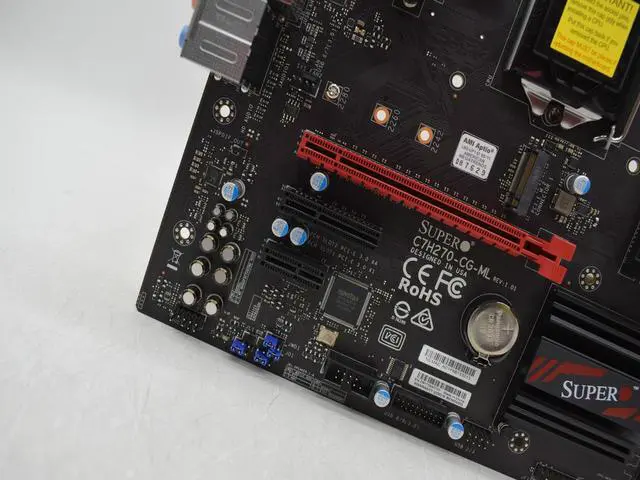

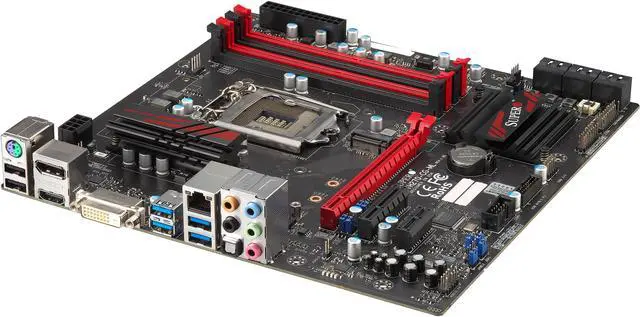

SUPERMICRO C7H270-CG-ML LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.0 Micro ATX Motherboards - Intel
See more "supermicro motherboard"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock.
Ships from China.
Fees for brokerage and duty included in price.
- Intel H270
- Intel 6th/7th Generation Core i7/Core i5/Core i3/Pentium/Celeron series processor
- * Not Compatible with Intel 8th Gen CPUs
- DDR4 2400/ 2133
+
+
Specs
Reviews
Learn more about the Supermicro C7H270-CG-ML
| Brand | SUPERMICRO |
|---|---|
| Model | C7H270-CG-ML |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel 6th/7th Generation Core i7/Core i5/Core i3/Pentium/Celeron series processor * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel H270 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2400/ 2133 |
| Maximum Memory Supported | 64GB |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI-E 3.0 x4 slot |
| PCI Express x1 | 1 x PCI-E 3.0 x1 slot |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | Interface: PCIe 3.0 x4 Form Factor: 2280 |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

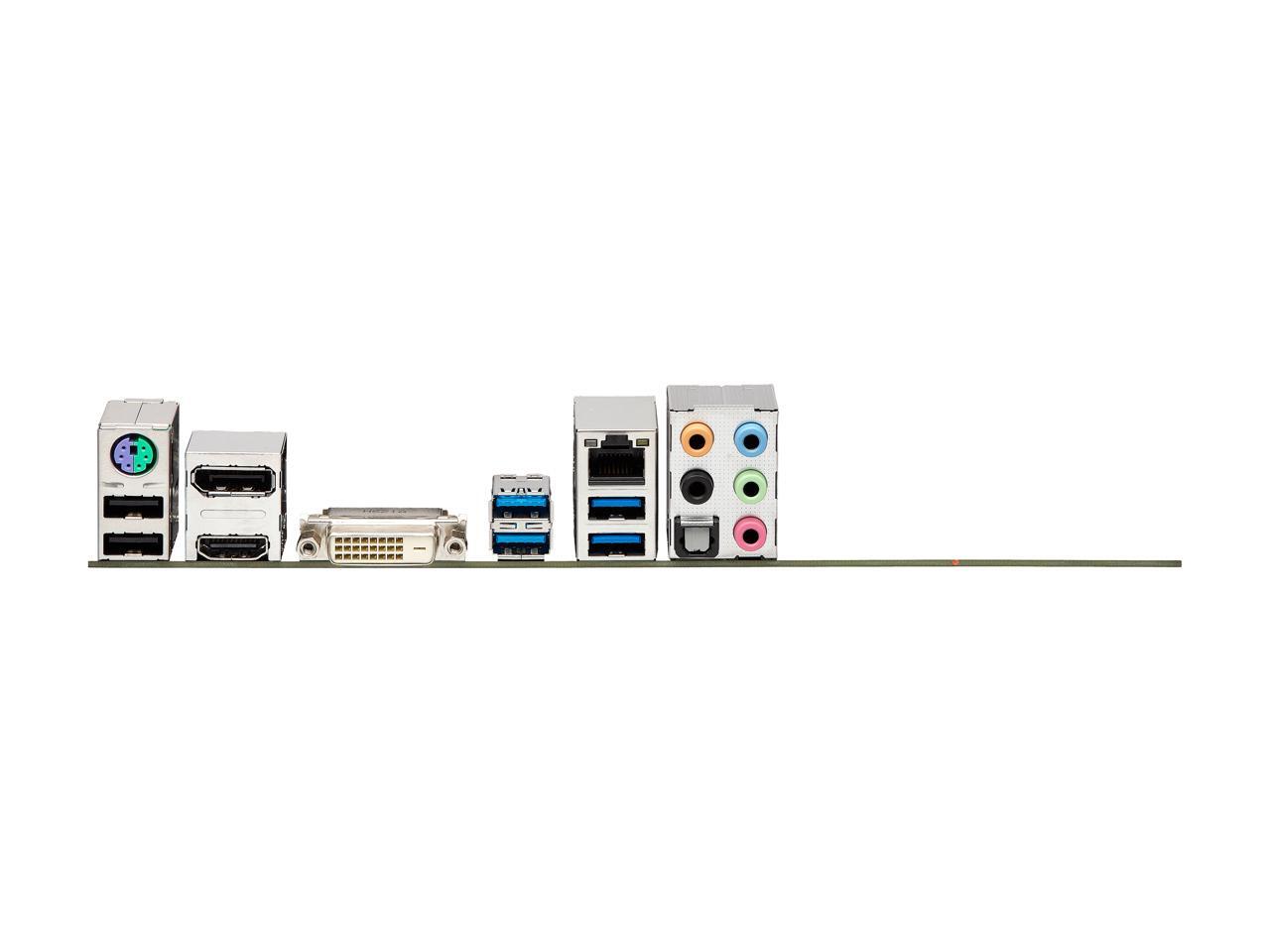

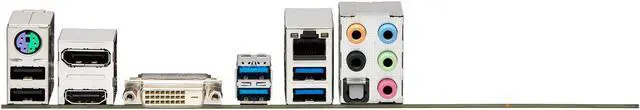

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D |
| HDMI | 1 x HDMI 1.4b |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort 1.2 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 3.0 + 2 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | April 01, 2021 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 60 days
- This item is covered by Bill's markerplace Return Policy
