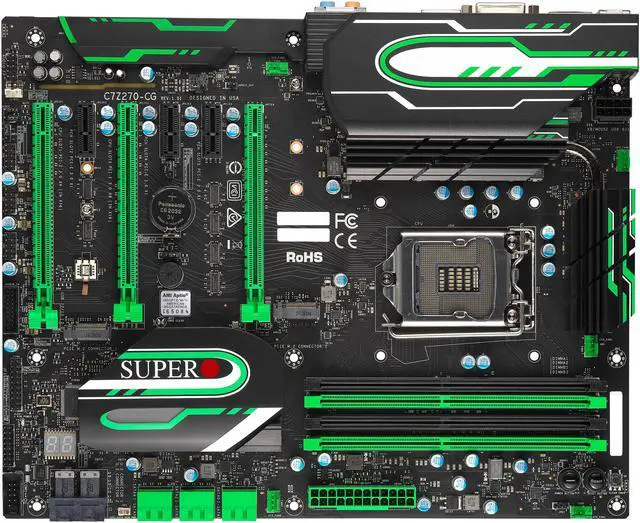

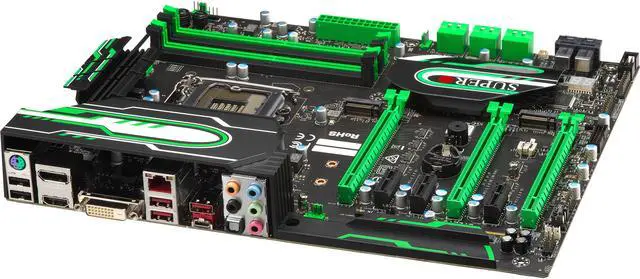

SUPERMICRO C7Z270-CG LGA 1151 Intel Z270 HDMI USB 3.1 ATX Motherboards - Intel

(3) Write a Review
  • Intel Z270
  • Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 160W TDP
  • DDR4 up to 3733(OC)
Specs
Reviews (3)

Learn more about the Supermicro C7Z270-CG

Model
Brand SUPERMICRO
Model C7Z270-CG
Supported CPU
CPU Socket Type LGA 1151
CPU Type Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 160W TDP
Supported CPU Technologies * Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset Intel Z270
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 up to 3733(OC)
Maximum Memory Supported 64GB
Expansion Slots
PCI Express 3.0 x16 3 x PCI-E 3.0 x16 slots (run at 16/NA/NA, 8/8/NA, 8/4/4, Auto Switch)
PCI Express x4 2 x PCIe 3.0 x4 M.2 (1 supports 22110, 1 supports 2280) (RAID 0,1 support)
2 x PCIe 3.0 x4 U.2 (1 share with M.2, RAID 0, 1 support)
PCI Express x1 3 x PCI-E 3.0 x1 slots
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps

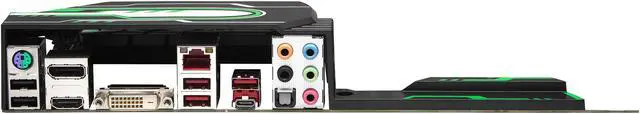

Rear Panel Ports
Back I/O Ports 1 x DisplayPort / 1 x HDMI / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
Video Ports 1 x DVI-D
HDMI 1 x HDMI 2.0
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort 1.2
USB 3.1 4 x USB 3.1 ports (3 Type A, 1 Type C)
USB 1.1/2.0 2 x USB 2.0
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Features
Features Single socket H4 (LGA 1151) supports Intel 7th/6th Gen. Core i7/i5/i3 series

Intel Z270 Express Chipset

Up to 64GB Non-ECC UDIMM, DDR4-3733MHz (OC), in 4 DIMM slots

1 x GbE LAN port via Intel i219V

6 x ATA3 (6Gbps); RAID 0, 1, 5, 10

3 x PCI-E 3.0 x16 (run at 16/NA/NA, 8/8/NA, 8/4/4, Auto Switch), 3 x PCI-E 3.0 x1

2 x PCIe 3.0 x4 M.2

2 x PCIe 3.0 x4 U.2 (1 share with M.2)

2 x USB 3.0 (2 via header)
8 x USB 2.0 (2 rear, 6 via headers)
4 x USB 3.1 (3 Typa A, 1 Type C)

1 x DP (Display Port), 1 x HDMI, 1 x DVI-D

HD Audio 7.1 channel connector by Realtek ALC1150, support SPDIF-Out
Additional Information
First Listed on Newegg January 05, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
