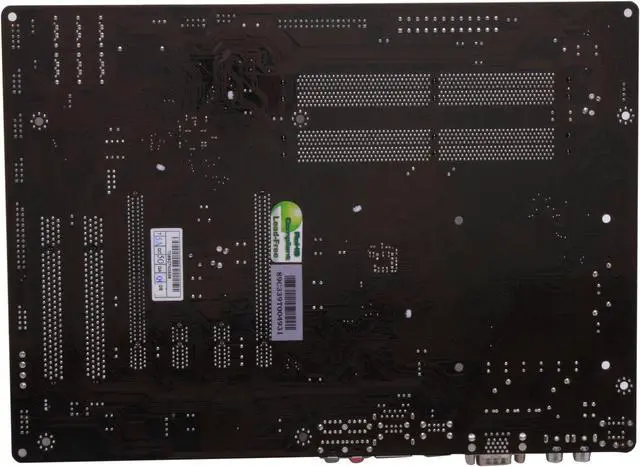

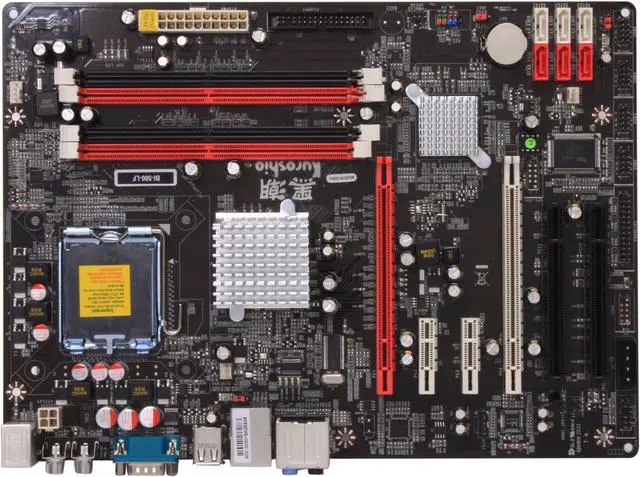

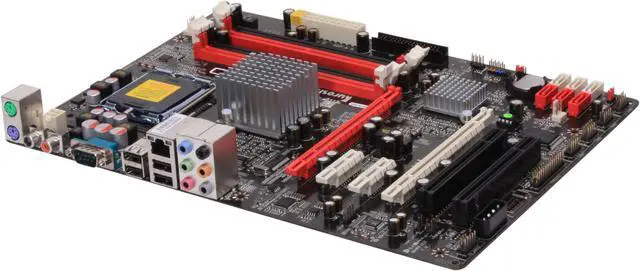

JetWay JBI500-LF LGA 775 Intel P45 ATX Intel Motherboard

(9) Write a Review
  • Intel P45
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 800
Specs
Reviews (9)

Learn more about the JETWAY JBI500-LF

Model
Brand JetWay
Model JBI500-LF
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1600/1333 MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI-Express x16 slot by 16-lane
1 x PCI-Express x16 slot by 4-lane
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Onboard Audio
Audio Chipset Realtek ALC883
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Coaxial
S/PDIF In 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0/1.1 headers for 8 USB 2.0/1.1 ports
Physical Spec
Form Factor ATX
Power Pin 24 Pin

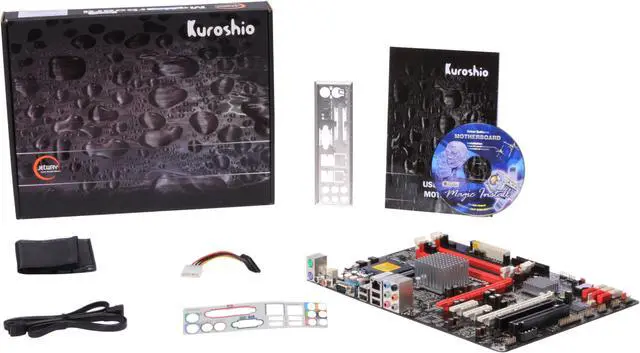

Packaging
Package Contents JBI500-LF
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
First Listed on Newegg September 25, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
