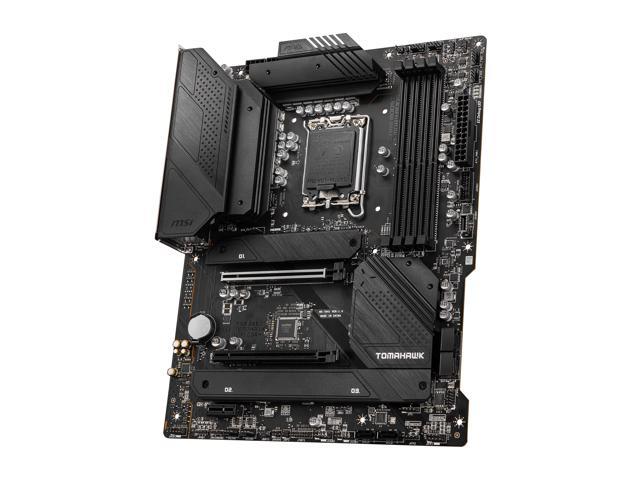

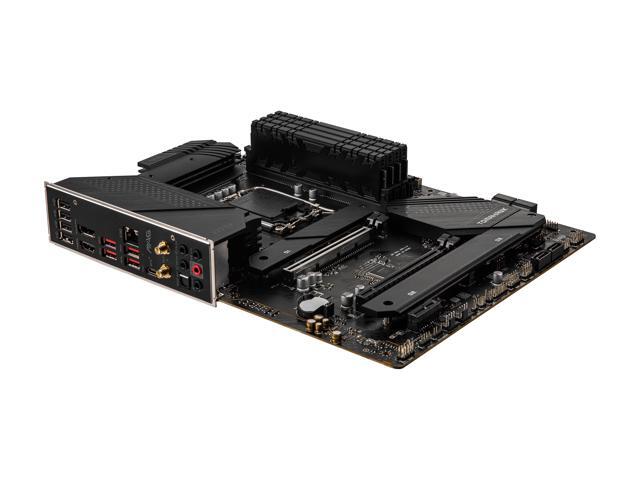

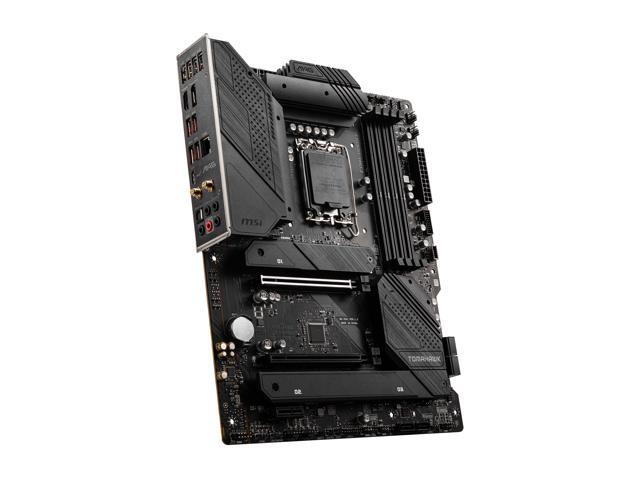

MSI MAG B660 TOMAHAWK WIFI DDR4 LGA 1700 Intel B660 SATA 6Gb/s ATX Intel Motherboard
OPEN BOX Product Type
- BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
- Supports 14th / 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
- May require a BIOS update to boot the 13th gen Intel Core desktop processors.
- MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- The latest Gen4 PCI-E and M.2 solution with up to 64GB/S bandwidth for maximum transfer speed.
- M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
- Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Specs
Learn more about the MSI MAG B660 TOMAHAWK WIFI DDR4
| Brand | MSI |
|---|---|
| Model | MAG B660 TOMAHAWK WIFI DDR4 |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | Intel B660 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4800+ (OC) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Other Slots | 1 x M.2 Key E (CNVi) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 3 x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) - M2_2 supports up to PCIe 4.0 x4 - M2_3 supports up to PCIe 4.0 x2 - Supports SATA up to 6Gb/s - Supports 2242/ 2260/ 2280 storage devices - Intel Optane Memory |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC1220P |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | INTEL WI-FI 6 |
| Bluetooth | Bluetooth 5.2 |

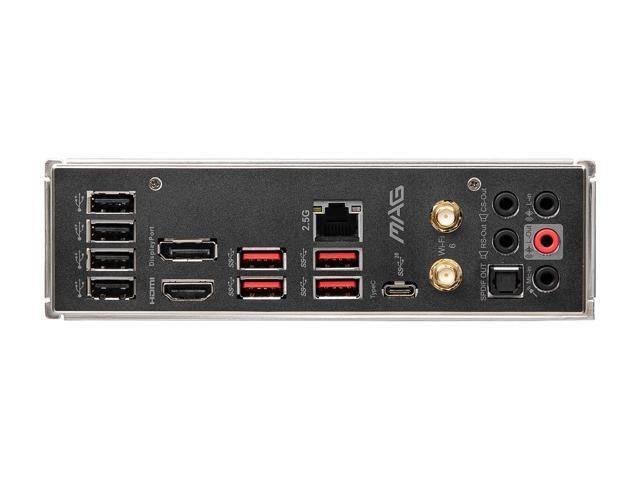

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 2 x Antenna Bracket 1 x Optical S/PDIF Out 5 x Audio Jacks 1 x USB 3.2 Gen 2x2 Type-C 4 x USB 3.2 Gen 2 Type-A 4 x USB 2.0/1.1 |
|---|
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| First Listed on Newegg | June 04, 2022 |
|---|
