MSI H110M GAMING LGA 1151 Intel H110 HDMI USB 3.1 Micro ATX Intel Motherboard

REFURBISHED Product Type
(2) Write a Review
  • Intel H110
  • Supports 6th Gen Intel Core i3/i5/i7, and Intel Pentium and Celeron processors for Socket LGA1151
  • Please refer to MSI CPU Support for compatible CPU; the above description is for reference only.
  • DDR4 2133
  • * Please refer to MSI Compatibility reports for more information of compatible memory
Specs
Reviews (2)

Learn more about the MSI H110M GAMING

Model
Brand MSI
Model H110M GAMING
Supported CPU
CPU Socket Type LGA 1151
CPU Type Supports 6th Gen Intel Core i3/i5/i7, and Intel Pentium and Celeron processors for Socket LGA1151
Please refer to MSI CPU Support for compatible CPU; the above description is for reference only.
Chipsets
Chipset Intel H110
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 2133
* Please refer to MSI Compatibility reports for more information of compatible memory
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 2 x PCIe 2.0 x1 slots
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps

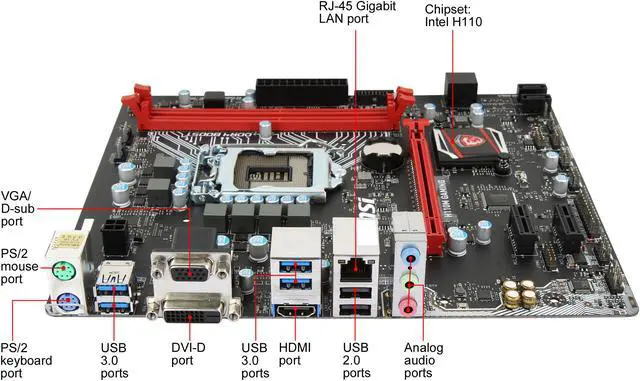

Rear Panel Ports
Back I/O Ports 1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
PS/2 1 x PS/2 keyboard port
1 x PS/2 mouse port
Video Ports 1 x DVI-D port
1 x VGA port
HDMI 1 x HDMI
RJ45 1 x RJ45
USB 3.1 4 x USB 3.1 Gen1 ports
USB 1.1/2.0 2 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
Other Connectors 1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX

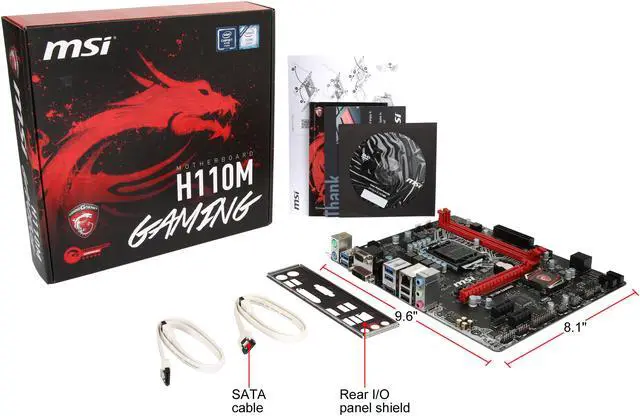

Dimensions (W x L) 9.6" x 8.1"
Power Pin 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
Features
Features Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket

Supports DDR4-2133 Memory

DDR4 Boost: Give your DDR4 memory a performance boost

SATA 6Gb/s + USB 3.1 Gen 1

GAMING DNA: Awesome look & feel with stylish red led

GAMING LAN powered by Intel: The best online gaming experience with lowest latency

LAN Protect: 15KV Anti-surge protection

Audio Boost: Reward your ears with studio grade sound quality

Military Class 4: Top Quality & Stability

Guard-Pro: Improved Protection and Power Efficiency

OBS Streaming software: Share your gaming achievements with the world!

EZ Debug LED: Easiest way to troubleshoot

Overvoltage Protection: Prevent Unforeseen Damage

GAMING Hotkey: Launch your favorite games with a single button

Click BIOS: Secure and Reliable UEFI BIOS solution

SteelSeries Certified: Optimized for SteelSeries gaming gear

GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience
Additional Information
First Listed on Newegg October 09, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 30 days
  • Limited Warranty period (labor): 30 days
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.ca's Replacement Only Return Policy.
  • Read full return policy for details.
