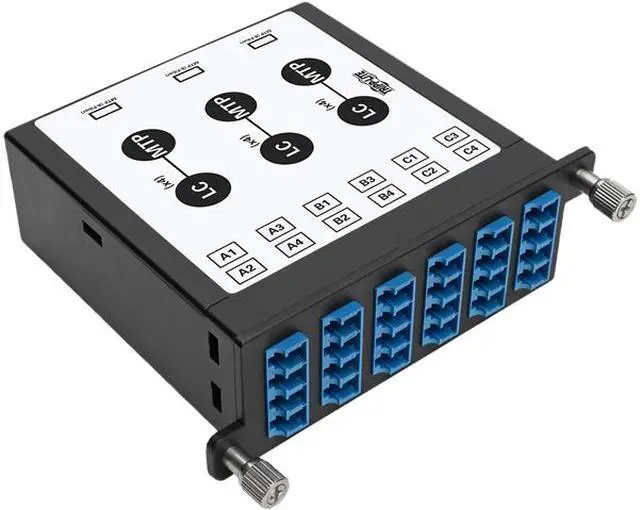

Singlemode fiber cassette installs in Tripp Lite N484-Series chassis to connect 12 duplex LC fiber cables with three 8-fiber MTP/MPO (APC) connections in high-density network applications
Supports 40/100 GbE internally using singlemode fiber optic cable. For use with Tripp Lite N484-01U or N484-00U chassis.
Optimized for parallel optics and Base-8 connectivity
Simple installation with no tools required
+
+
Overview
Specs
Reviews
Learn more about the Tripp Lite N484-3M8L12S
Model
Brand
Tripp Lite
Model
N484-3M8L12S
Type
Breakout Cassette
Details
Connector Number
12
Connector Detail

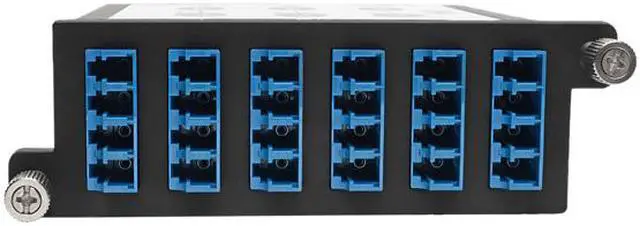

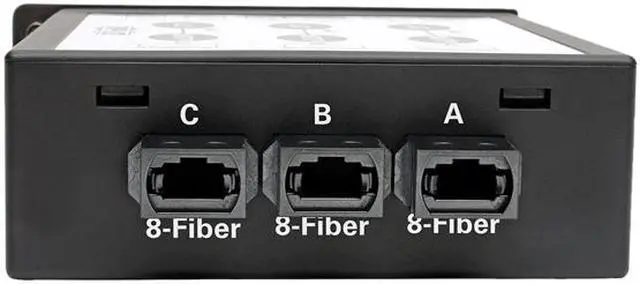

Side A - Connector 1: 3x 8-STRAND MTP (MALE) Side B - Connector 1: 12x LC DUPLEX (FEMALE)
Features
Features
Elegant, Simple Solution for 40/100 Gb to 10 Gb LC Cable Connections High-density singlemode fiber cassette for use with Tripp Lite N484-01U and N484-00U fiber enclosure panels Breaks out three 8-fiber MTP/MPO connections into 12 duplex LC fiber cables Perfect for use with QSFP fabric switches to support 4 lanes parallel to 40 Gb Supports 40/100 GbE internally using singlemode fiber optic cable 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity
Designed Specifically for Use with Tripp Lite Cabling Guaranteed compatibility with recommended Tripp Lite cables, including N370- and N390-Series

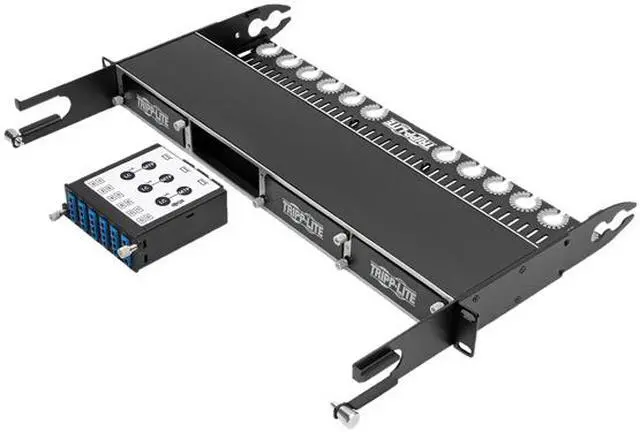

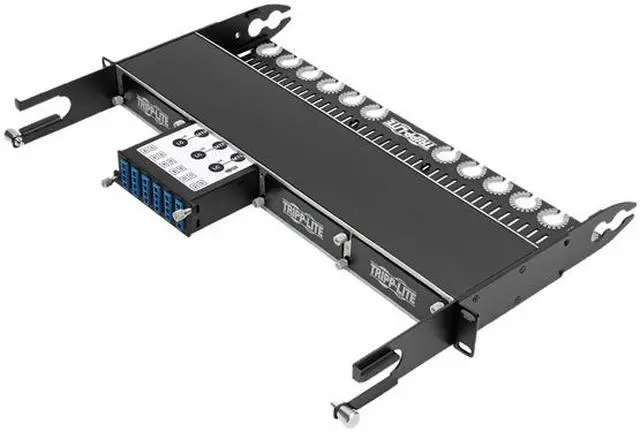

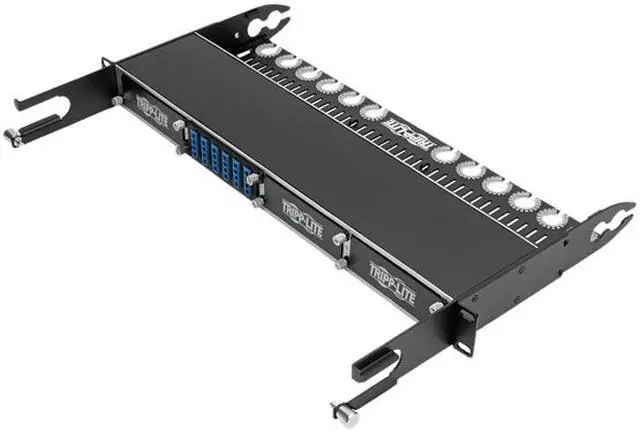

Simple Fiber Installations Save Time and Money Easy installation with no tools required Installs neatly in N484-00U 0U chassis Install up to 4 cassettes in N484-01U 1U enclosure panel Supports devices of varying speeds, including 10 Gb, 40 Gb and 100 Gb network equipment
Easy to Modify, Upgrade or Expand Fiber Infrastructure By Adding or Swapping Cassettes Futureproof-friendly modular design allows removal of cassette without replacing panel or removing other cassettes Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements 0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB
Premium Construction for Optimal Performance Durable plastic construction Factory-terminated connectors reduce installation time and labor costs Dust caps protect unused ports
Additional Information
First Listed on Newegg
March 28, 2025
Customer Reviews of the Tripp Lite N484-3M8L12S
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
