| Specifications | 1x1 802.11ac Dual Band Wi-Fi + BLUETOOTH 4.2 card

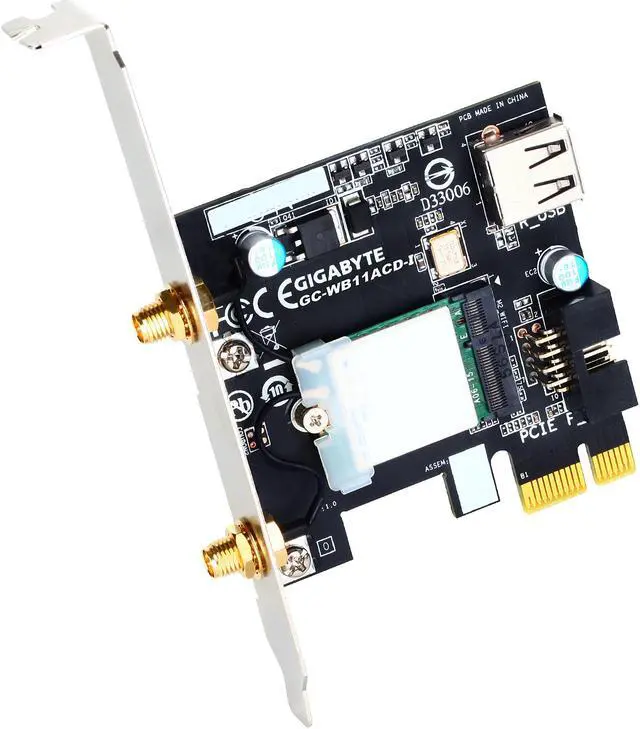

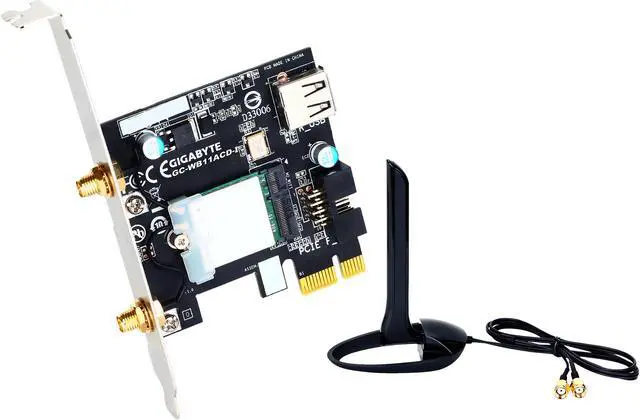

GC-WB11ACD-I is an exclusive PCIe expansion card that offers support for 1x1 802.11ac Dual Band Wi-Fi and BLUETOOTH 4.2 connectivity
More Speed Better Coverage Larger Capacity 802.11ac, Dual Band, 80MHz, 1x1
Bluetooth Function
Standard: Dual Module Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 4.1, BLE, 4.2
Wi-Fi Function
Standard: IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Network Architecture: Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Security:
WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA,PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
64-bit and 128-bit WEP, AES-CCMP, TKIP
WPA2, AES-CCMP), UL, C-UL, CB (IEC 60950-1)
802.11w (WFA-Protected Management Frames)
