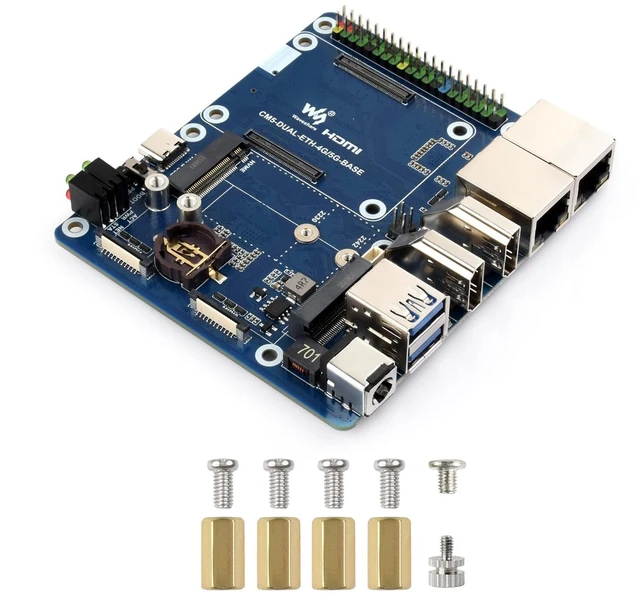

Dual Ethernet Base Board, Compatible with Raspberry Pi CM5, Supports 4G/5G, Dual 4K Display Outputs, Dual MIPI Interfaces, 40PIN GPIO Header, Dual USB 3.2 Gen1 Ports, PoE Module Support

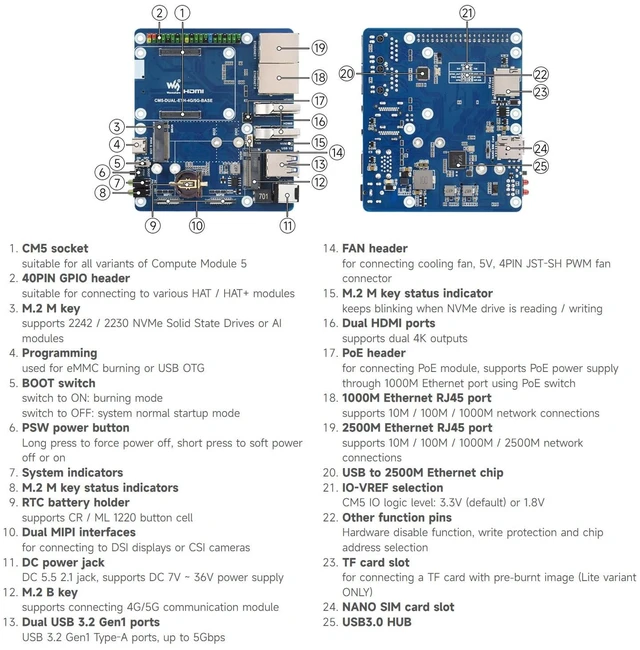

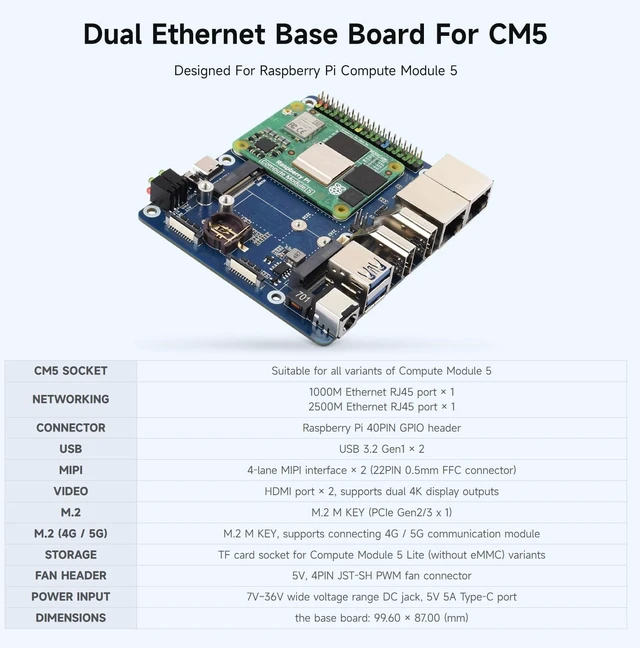

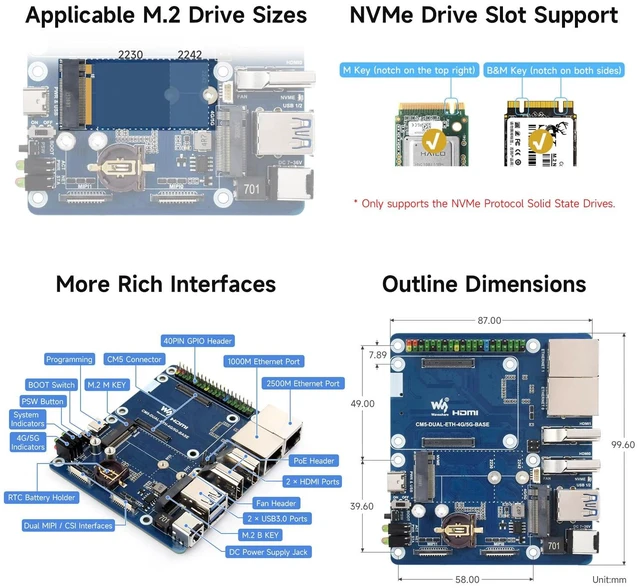

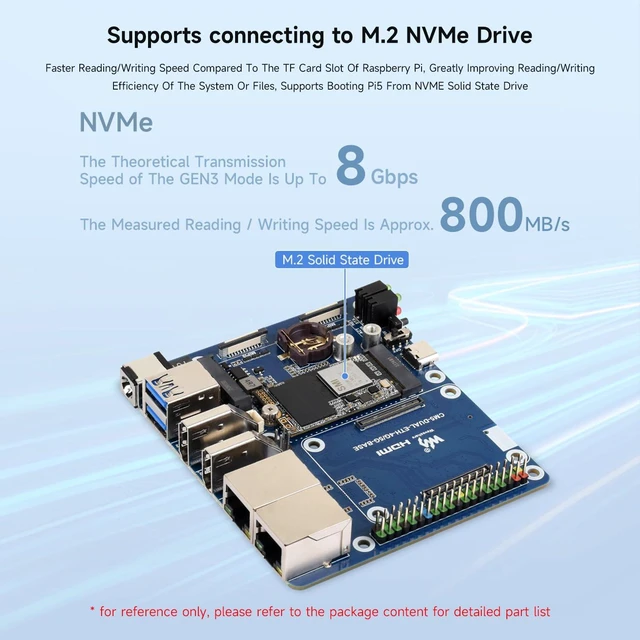

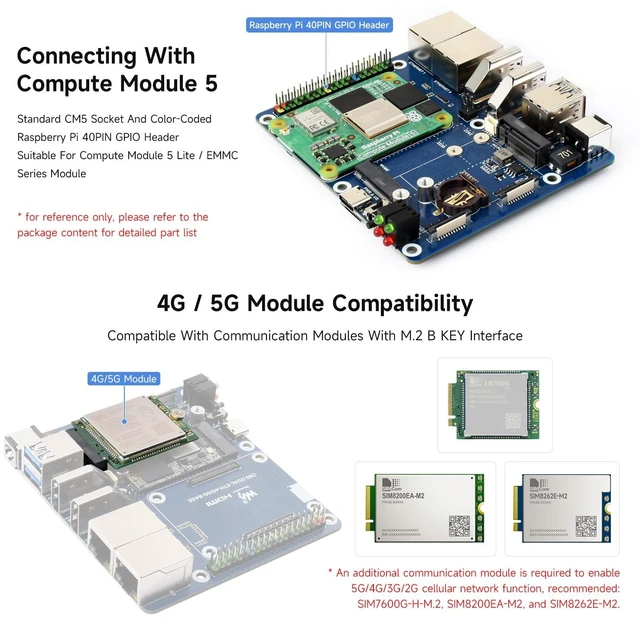

- Compatible with all variants of the Compute Module 5; Includes 1 × 1000M Ethernet RJ45 port and 1 × 2500M Ethernet RJ45 port; Features a Raspberry Pi 40-pin GPIO header for flexible peripheral connections; Equipped with 2 × USB 3.2 Gen1 ports and 2 × 4-lane MIPI interfaces (22-pin 0.5mm FFC connectors); Dual HDMI ports supporting 4K display outputs, M.2 M Key for PCIe Gen2/3 x1, and TF card socket for Compute Module 5 Lite variants without eMMC
+
+
Overview
Specs
Reviews
Compatible with all variants of the Compute Module 5; Includes 1 × 1000M Ethernet RJ45 port and 1 × 2500M Ethernet RJ45 port; Features a Raspberry Pi 40-pin GPIO header for flexible peripheral connections; Equipped with 2 × USB 3.2 Gen1 ports and 2 × 4-lane MIPI interfaces (22-pin 0.5 mm FFC connectors); Dual HDMI ports supporting 4K display outputs, M. 2 M Key for PCIe Gen2/3 x1, and TF card socket for Compute Module 5 Lite variants without eMMC
