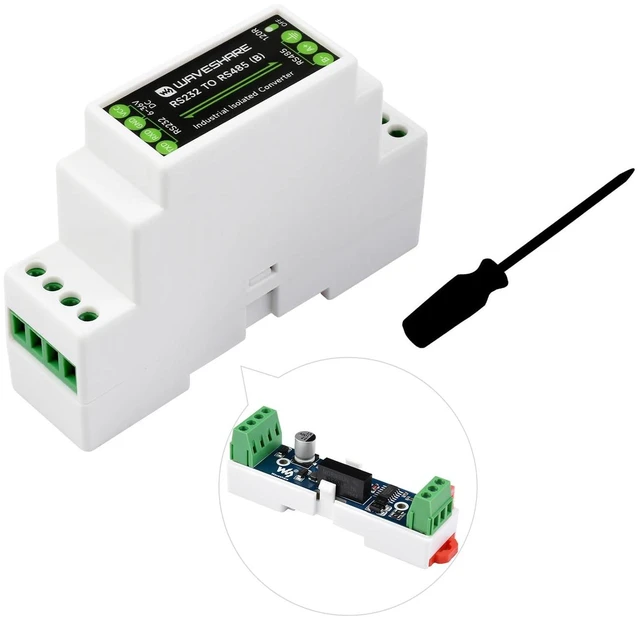

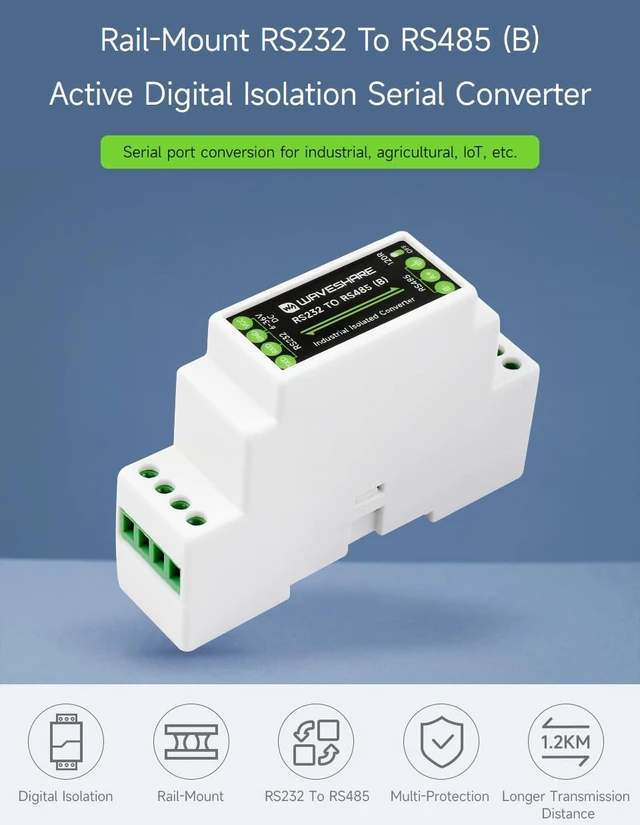

RS232 to RS485 Converter, Active Digital Isolator, Rail-Mount Support,Multi-Isolation Protection
- Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal. Stable transmission at the rate of 300~115200bps; Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong interference-free, low power consumption; Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, Non-electrostatic; Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance; Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch. The onboard power supply screw terminal, allows 6V~36V DC wide range input. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
+
+
Overview
Specs
Reviews
Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal. Stable transmission at the rate of 300~115200bps; Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong interference-free, low power consumption; Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, Non-electrostatic; Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance; Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch.
The onboard power supply screw terminal, allows 6V~36V DC wide range input. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
The onboard power supply screw terminal, allows 6V~36V DC wide range input. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
