  6. Item#: 9SIC43MKRZ0054

  • $181.38
  • Free 30-day Returns
  • Volume Discounts Available
    • $180.88 ea.
    • $180.38 ea.
    Limit 99999 per customer.
    Ships from China.
    Price alert
    Add to wish list
    Sold by GGnix

    Shipped by GGnix

    Shop it at NeweggBusiness.

    Meet Your Seller

    GGnix
    Shop All Enfain Products | Visit GGnix Store
    FOLLOW

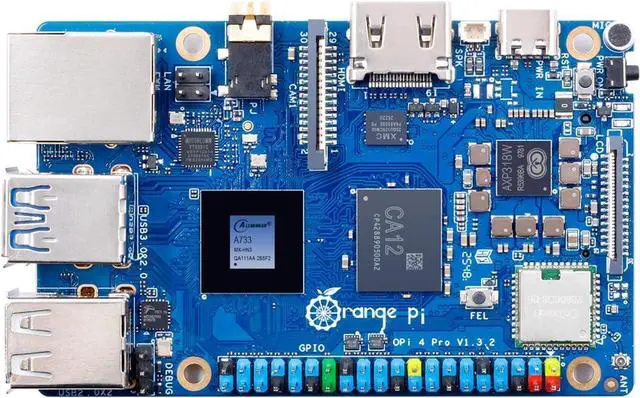

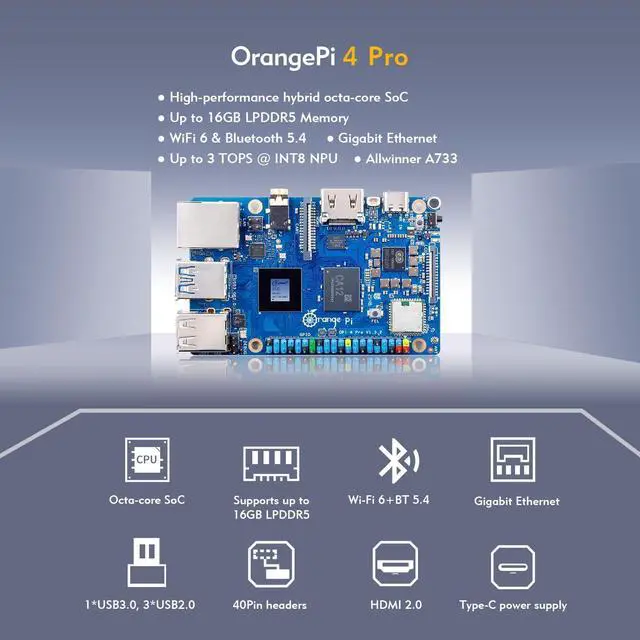

    Orange Pi 4 Pro 4GB/6GB/8GB/12GB LPDDR5 Allwinner A733 8-Core Single Board Computer with 3 Tops NPU, WiFi 6/Bluetooth 5.4,Development Board with eMMC Socket Run Ubuntu/Debian/Android (4GB)

    Limited time offer, ends 01/29 By GGnix

    Be the first to review this product...
    • 8GB
    • 4GB
    • 6GB
    • 12GB
    • Hardware parameters
    • SoC: Allwinner A733
    • CPU: 2x Cortex-A76 Cores + 6x Cortex-A55 Cores, Max. Frequency 2.0GHz
    • GPU: Imagination BXM-4-64
    • NPU: 3 TOPS @ INT8, supports INT8/INT16/FP16/BF16 mixed precision
    • MCU: RISC-V E902 Co-processor (200MHz)
    • PMIC: AXP318
    • Memory: Supports up to 16GB LPDDR5

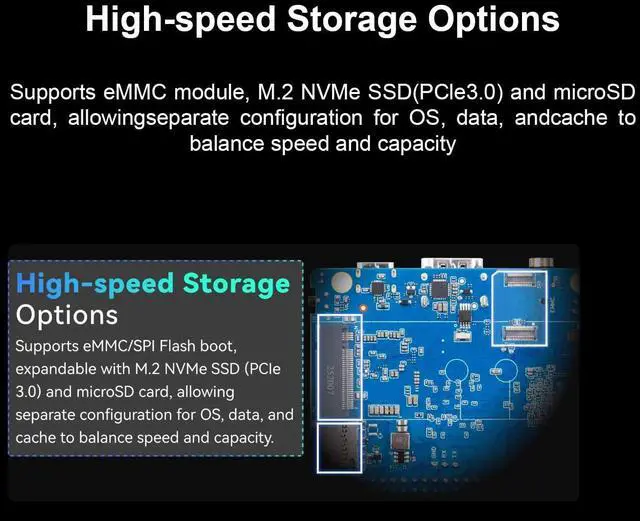

    • Storage: Optional eMMC Module: 16GB/32GB/64GB/128GB
    • M.2 M-Key Slot: (PCIe 3.0, supports NVMe SSD)
    • microSD Card Slot: supports up to 128GB
    • WiFi + Bluetooth: Integrated WiFi 6 & Bluetooth 5.4, supports BLE
    • Ethernet Transceive: Gigabit Ethernet (Onboard PHY: YT8531CA), supports PoE power
    • Display: 1x HDMI 2.0 port, supports up to 4K@60Hz/1x 4-lane MIPI DSI display interface

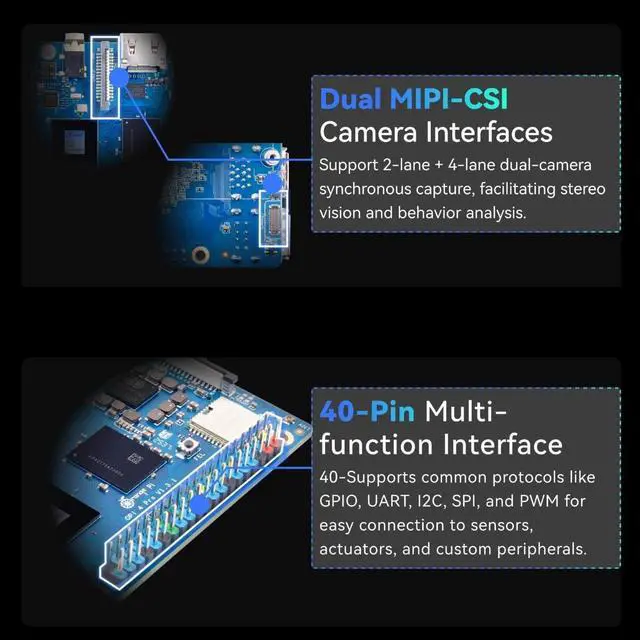

    • Camera: 1x 2-lane MIPI CSI camera interface/1x 4-lane MIPI CSI camera interface
    • USB: 1x USB 3.0 Host ports/3x USB 2.0 Host ports
    • Audio: 3.5mm headphone jack (supports input/output), single speaker, single microphone
    • Buttons: 1x BOOT button, 1x Reset button, 1x Power button
    • FAN: 2-pin 5V DC fan header

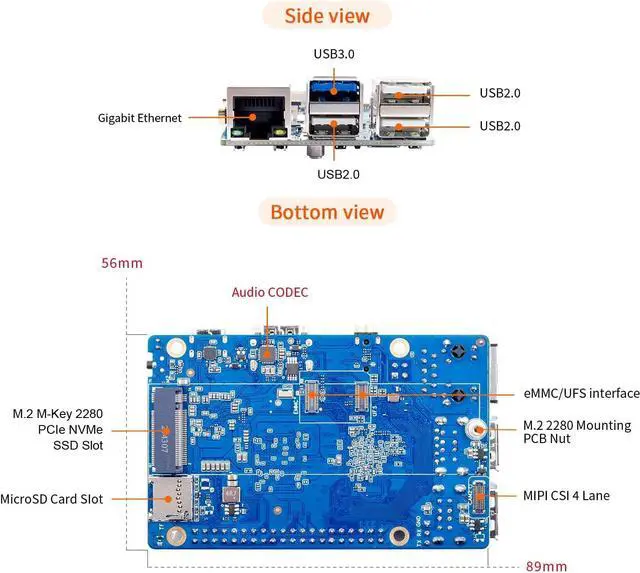

    • PCB size: 89x56mm
    • Weight: 58g
    +
    +
    Overview
    Specs
    Reviews

    Hardware parameters

    1. SoC: Allwinner A733
    2. CPU: 2x Cortex-A76 Cores + 6x Cortex-A55 Cores, Max. Frequency 2.0GHz
    3. GPU: Imagination BXM-4-64
    4. NPU: 3 TOPS @ INT8, supports INT8/INT16/FP16/BF16 mixed precision
    5. MCU: RISC-V E902 Co-processor (200MHz)
    6. PMIC: AXP318
    7. Memory: Supports up to 16GB LPDDR5
    8. Storage: Optional eMMC Module: 16GB/32GB/64GB/128GB
    9. M.2 M-Key Slot: (PCIe 3.0, supports NVMe SSD)
    10. microSD Card Slot: supports up to 128GB
    11. WiFi + Bluetooth: Integrated WiFi 6 & Bluetooth 5.4, supports BLE
    12. Ethernet Transceive: Gigabit Ethernet (Onboard PHY: YT8531CA), supports PoE power
    13. Display: 1x HDMI 2.0 port, supports up to 4K@60Hz/1x 4-lane MIPI DSI display interface
    14. Camera: 1x 2-lane MIPI CSI camera interface/1x 4-lane MIPI CSI camera interface
    15. USB: 1x USB 3.0 Host ports/3x USB 2.0 Host ports
    16. Audio: 3.5mm headphone jack (supports input/output), single speaker, single microphone
    17. Buttons: 1x BOOT button, 1x Reset button, 1x Power button
    18. FAN: 2-pin 5V DC fan header
    19. PCB size: 89x56mm
    20. Weight: 58g


    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
    • CONTACT

    Return Policies

    • Return for refund within: 30 days
    • Return for replacement within: 30 days
    • This item is covered by GGnix Return Policy
