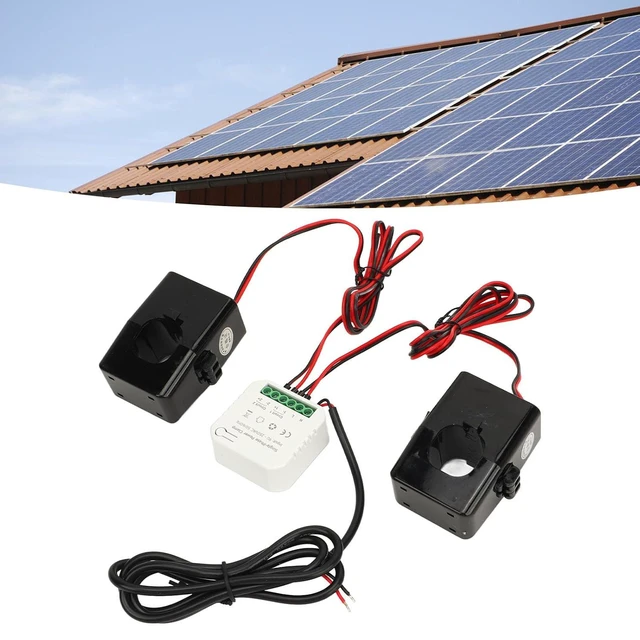

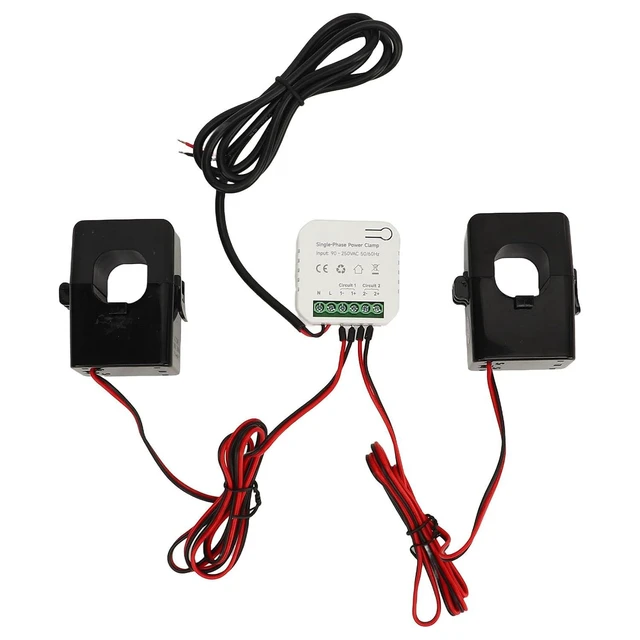

Single Phase Smart Power Meter Consumption Monitor Electricity Meter with 2 200ACT Current Transformer 90250VAC
Limited time offer, ends 11/01 By Kepler Forge

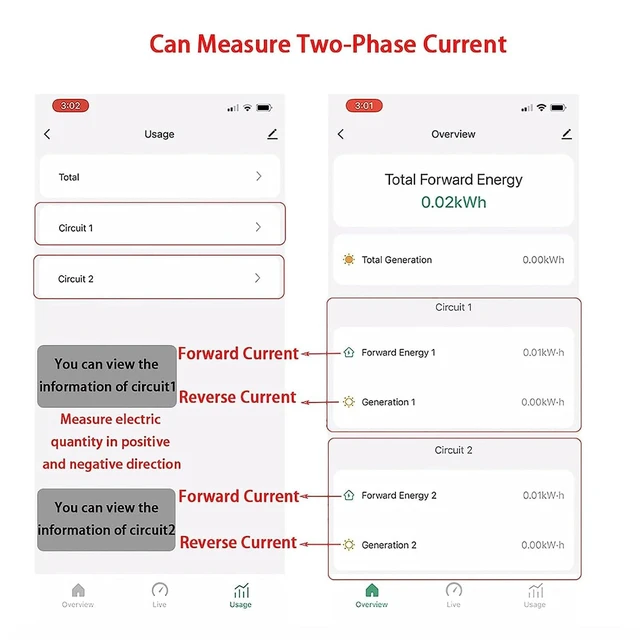

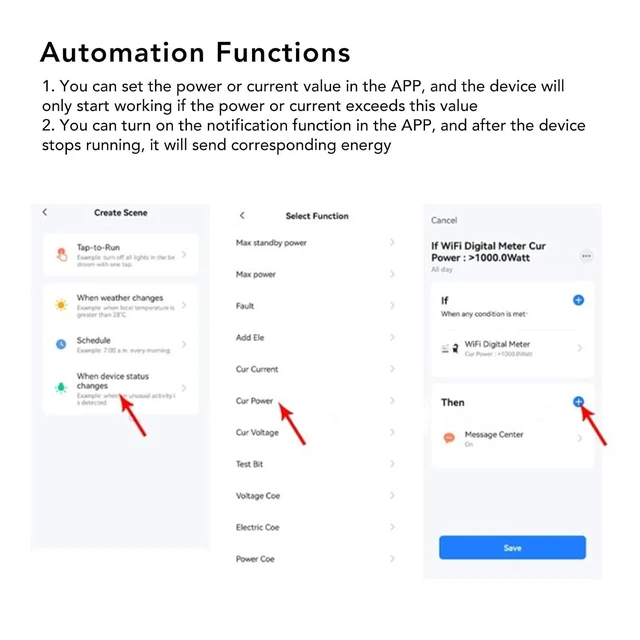

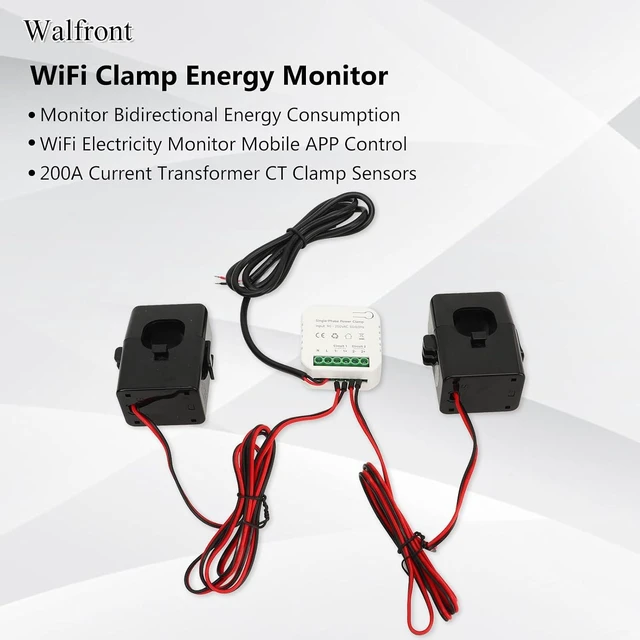

- Energy Monitoring: This device can monitor bidirectional energy consumption, can monitor the electricity generated by solar photovoltaic systems and the energy consumed by urban power grids.; Mobile APP Control: After the smart meter is connected to (with internet access), users can monitor the device status anytime and anywhere on the for Tuya or for SMART LIFE APP (with phone ).; Current Transformer: This intelligent electric is equipped with two 200A current transformer CT clamp sensors, with a current measurement range of 200A+200A, efficient and practical.; Multiple Functions: This single phase monitor supports real time monitoring of voltage, current, power factor, active power, and frequency, the working voltage is AC90250V, the measuring current is 0.280A.; Consumption Records: You can view energy consumption records for hours, days, months, and years on the APP, with a maximum retention time of over 1 year, supports click to run and automation of other devices.
+
+
Overview
Specs
Reviews
Product description
Specification Item Type: Smart Energy
Monitor Current Transformer: 2 x 200A
WiFi: 802.11B /G/N20/N40 at 2.4GH z
BLE: Bluetooth 4.2
Low Energy RF Characteristic: Working
Frequency: 2.4GH z, built in
Antenna Working Voltage: AC90-250V 50/60Hz Measuring
Current Range: 0.2A -80A
Calibration Accuracy: 100W (within ±2W), >100W (within ±2%)
Report Cycle: Every 15 seconds
Temperature Range: -20-55
Humidity Range: 90% non condensing
Installation Method: 35MM DIN Rail How to

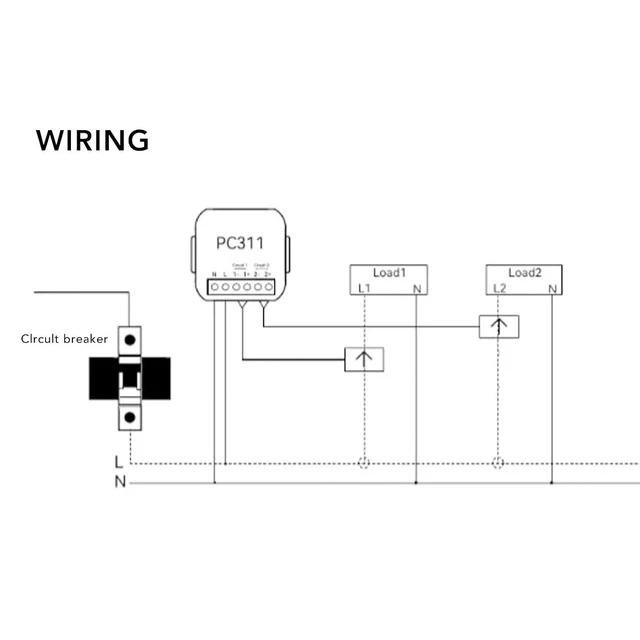

Use: Wiring installation and use, please check the user manual for specific operation. Package List 1 x Energy Monitor; 1 x User Manual
Specification Item Type: Smart Energy
Monitor Current Transformer: 2 x 200A
WiFi: 802.11B /G/N20/N40 at 2.4GH z
BLE: Bluetooth 4.2
Low Energy RF Characteristic: Working
Frequency: 2.4GH z, built in
Antenna Working Voltage: AC90-250V 50/60Hz Measuring
Current Range: 0.2A -80A
Calibration Accuracy: 100W (within ±2W), >100W (within ±2%)
Report Cycle: Every 15 seconds
Temperature Range: -20-55
Humidity Range: 90% non condensing
Installation Method: 35MM DIN Rail How to
Use: Wiring installation and use, please check the user manual for specific operation. Package List 1 x Energy Monitor; 1 x User Manual
