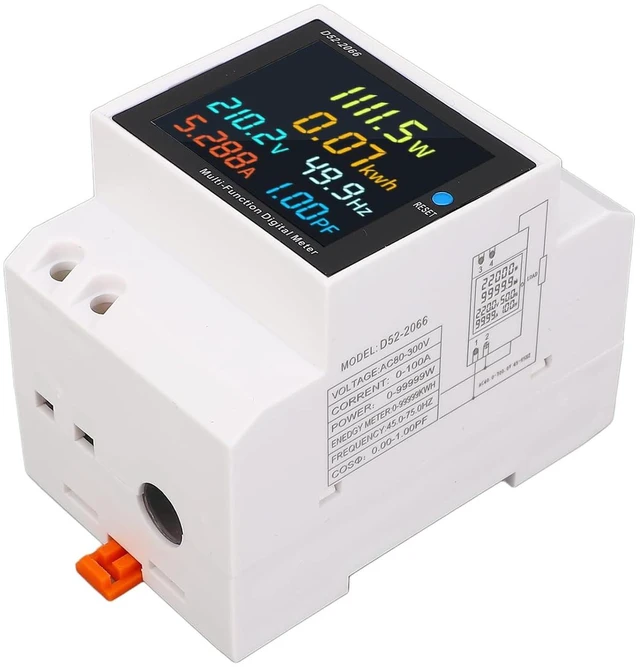

WALFRONT Digital Single Phase Energy Meter Din Rail Electricity Usage Monitor for Voltage Current KWh Frequency Power Factor Tester

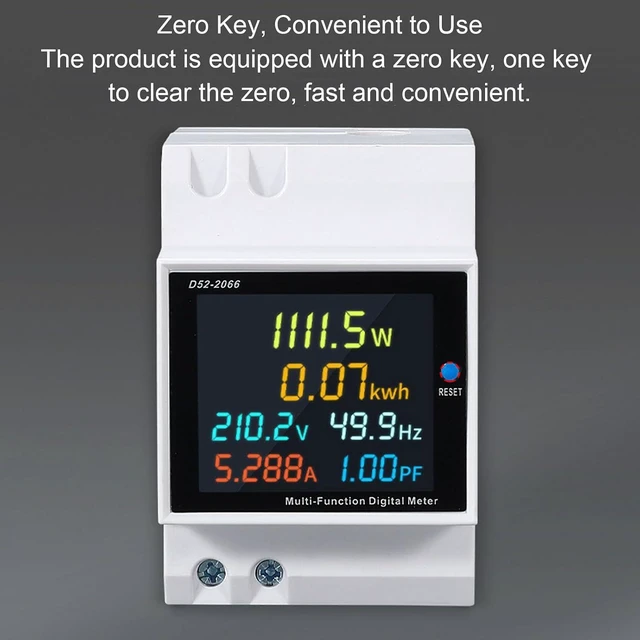

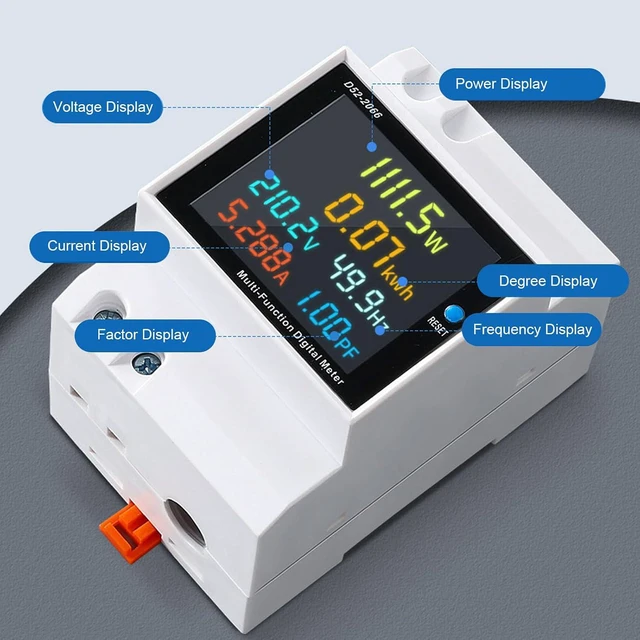

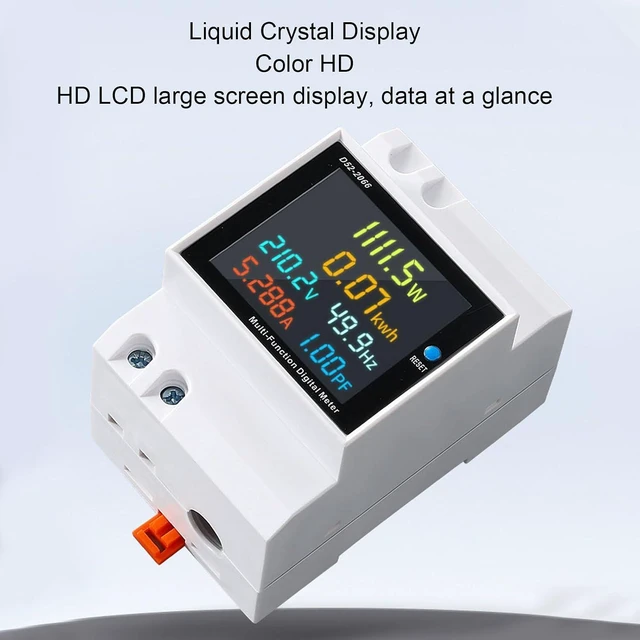

- Enhanced Visual Experience: The electricity single phase energy meter features a HD color LCD display with a wide 178° viewing angle, ensuring a clear and unobstructed view from any position. The backlit function makes it easy to read in both daylight and low light conditions, enhancing usability in various environments.; Rugged Construction: Made from excellent PC flame retardant materials and equipped with sensitive chips, this frequency power factor meter multimeter guarantees safe usage. Its rugged design ensures reliability and longevity, making it a trustworthy tool for monitoring electricity consumption.; 6 In 1 Multifunctionality: This digital single phase energy meter displays six essential parameters including AC voltage, AC current, active power, power factor, frequency, and energy consumption. This comprehensive capability allows users to monitoring a wide range of electrical metrics, providing valuable insights for efficient energy management.; User Friendly Operating: Resetting the measurement on the digital power voltmeter ammeter is simple and intuitive. To begin measuring from zero, users can easily long press the RESET key located on the right side of the panel for 5 seconds until the display shows zero. This straightforward process enhances convenience for users of all skill levels.;
+
+
Overview
Specs
Reviews
Specification: Item
Type: Digital Single Phase Energy Meter Model: D52-2066
Material: Flame

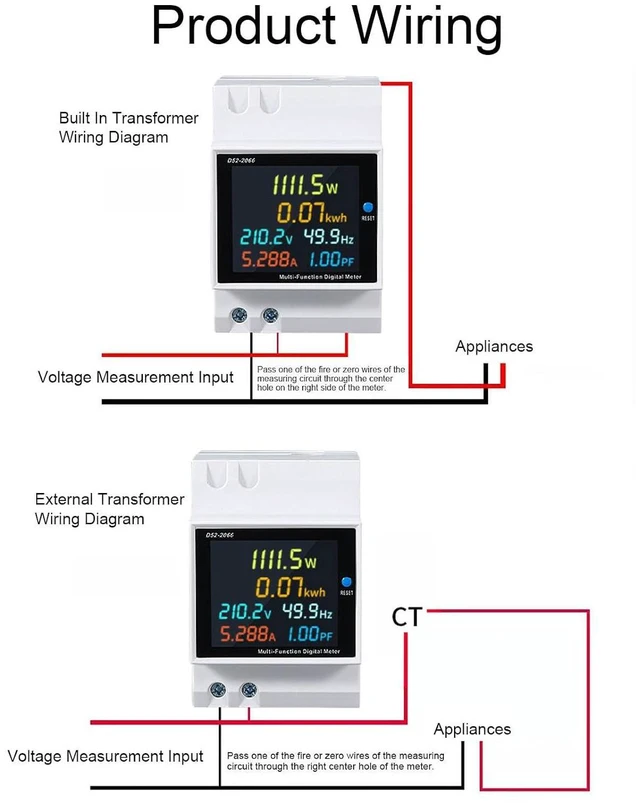

Retardant PC Type: Internal Transformer, External Transformer (Optional)
Measurement Range: AC 40-300V
Measurement Accuracy: 1%±2
Digits AC Current: AC 0-100A, Current Display Resolution 0.01A
Power Frequency: 45.0H z- 65.0H z
Power Factor: 0.00 - 1.00PF
Active Power: Measurement
Range: 0-450000W, Resolution of 0.1W Between 0- 9999.9W, 1W for
Others Electric Energy: Measurement
Range: 0-999999kWh, Minimum Display Resolution 0.01 kWh for 0-9 99.99 kWh, 0.01 kWh for 10000- 9999.99 kWh, 0.01 kWh for 10000-99999kWh
Measurement Speed: Approximately 2
Times Per Second Installation: Rail

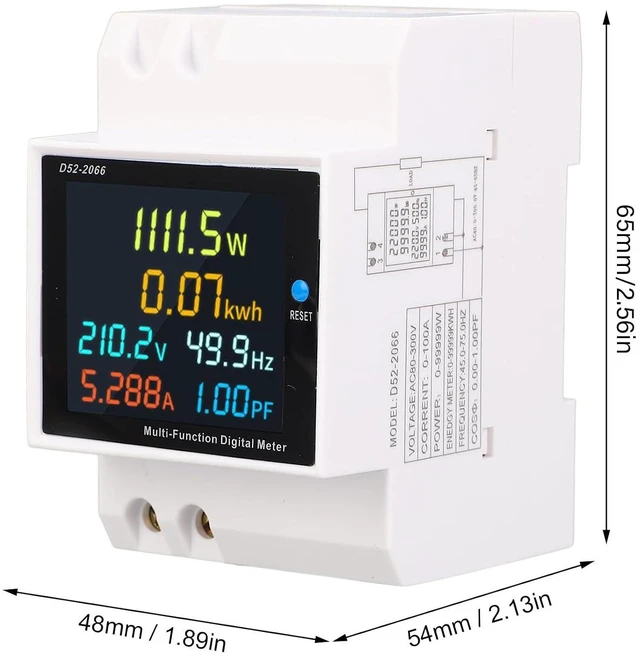

Mounted Size: Approx. 80 x 54 x 64mm / 3.15 x 2.12 x 2.51 in How to
Use: Follow the manual instructions.
PackageList: 1 x Smart Electric Meter 1 x Manual
Type: Digital Single Phase Energy Meter Model: D52-2066
Material: Flame
Retardant PC Type: Internal Transformer, External Transformer (Optional)
Measurement Range: AC 40-300V
Measurement Accuracy: 1%±2
Digits AC Current: AC 0-100A, Current Display Resolution 0.01A
Power Frequency: 45.0H z- 65.0H z
Power Factor: 0.00 - 1.00PF
Active Power: Measurement
Range: 0-450000W, Resolution of 0.1W Between 0- 9999.9W, 1W for
Others Electric Energy: Measurement
Range: 0-999999kWh, Minimum Display Resolution 0.01 kWh for 0-9 99.99 kWh, 0.01 kWh for 10000- 9999.99 kWh, 0.01 kWh for 10000-99999kWh
Measurement Speed: Approximately 2
Times Per Second Installation: Rail
Mounted Size: Approx. 80 x 54 x 64mm / 3.15 x 2.12 x 2.51 in How to
Use: Follow the manual instructions.
PackageList: 1 x Smart Electric Meter 1 x Manual
