Double LED Display Single Phase Adjustable Voltage Current Protector Voltage Protective Device AC230V 63A x 36 x 60mm
- LED display: Double LED display, this protector can display voltage, current, etc.; Protector function: The protector has over voltage protection, under voltage and other functions. Rated voltage: 230VAC 50/60Hz; Rated current: 1-63A adjustable(default 63A); Adjustable protector: Overvoltage value, undervoltage value, overcurrent and fault recovery delay time are adjustable. Installation method: DIN rail; Overvoltage value range: 230V-300V adjustable(default270V); Undervoltage value range: 210V-145V adjustable(default170V); Reasonable design: This protector has reset mode selection. Low power consumption and long mechanical life. Power consumption: 2W
+
+
Overview
Specs
Reviews
Product description
Package List: 1 x
Protector Rated voltage: 230VAC 50/60Hz
Rated current: 1-63A adjustable (default 63A)
Overvoltage protection value range: 230V-300V adjustable (default270V)
Undervoltage protection value range: 210V-145V adjustable (default170V)
Power consumption: 2W
Electrical mechanical life: 4000 times
Installation method: DIN rail Working environment
Temperature: -25 ~+40
Humidity: <90%

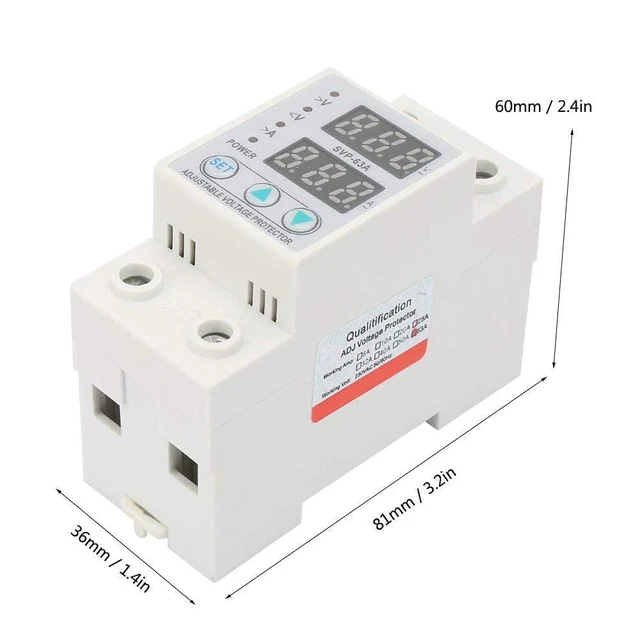

Size: Approx. 81 x 36 x 60mm / 3.2 x 1.4 x 2.4 in
Altitude: no more than 2000m
Failure recovery delay time: 3s-300s adjustable (default30 seconds) 2P 230/400V 50/60Hz IP20 Electric Leaking Protector Current Circuit Breaker 63A 4P 400VAC Current Circuit Breaker AC Current Transmitter Transducer Overload Protector AC 0-200A Output DC 0-10V Buying Options Add to Cart Add to Cart Customer Reviews 4.0 out of 5 stars 1 4.7 out of 5 stars 4 5.0 out of 5 stars 3 Price no data $ 25.59 $25. 59 $ 28.78 $28.
78 Pole: 2P 4P
Output type: 0-10V DC
Package List: 1 x
Protector Rated voltage: 230VAC 50/60Hz
Rated current: 1-63A adjustable (default 63A)
Overvoltage protection value range: 230V-300V adjustable (default270V)
Undervoltage protection value range: 210V-145V adjustable (default170V)
Power consumption: 2W
Electrical mechanical life: 4000 times
Installation method: DIN rail Working environment
Temperature: -25 ~+40
Humidity: <90%
Size: Approx. 81 x 36 x 60mm / 3.2 x 1.4 x 2.4 in
Altitude: no more than 2000m
Failure recovery delay time: 3s-300s adjustable (default30 seconds) 2P 230/400V 50/60Hz IP20 Electric Leaking Protector Current Circuit Breaker 63A 4P 400VAC Current Circuit Breaker AC Current Transmitter Transducer Overload Protector AC 0-200A Output DC 0-10V Buying Options Add to Cart Add to Cart Customer Reviews 4.0 out of 5 stars 1 4.7 out of 5 stars 4 5.0 out of 5 stars 3 Price no data $ 25.59 $25. 59 $ 28.78 $28.
78 Pole: 2P 4P
Output type: 0-10V DC
