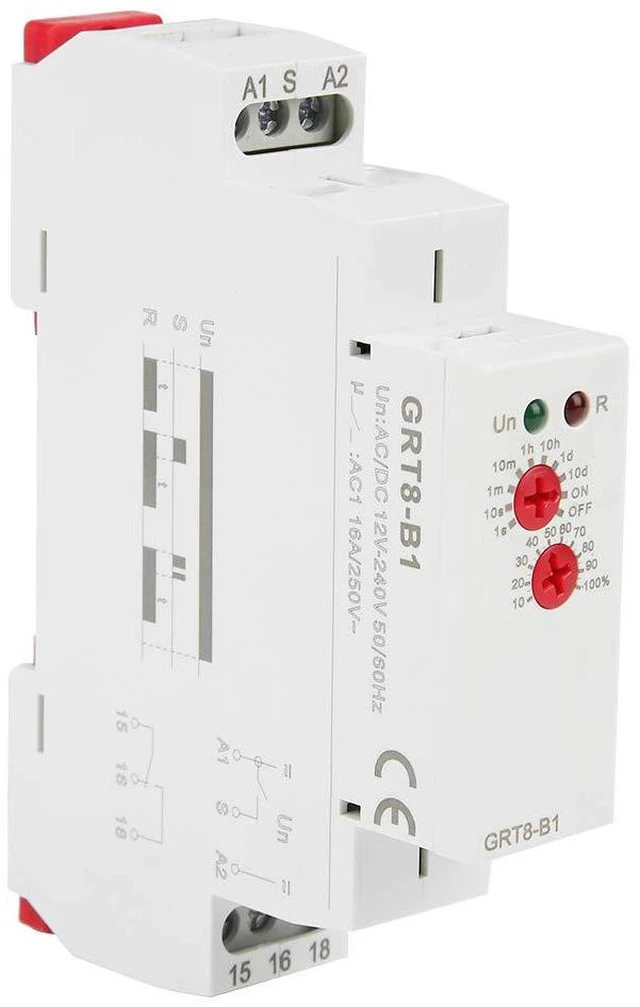

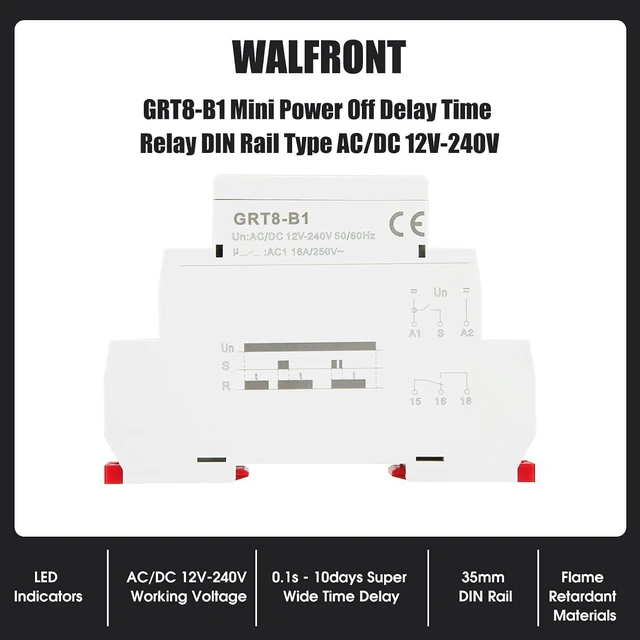

GRT8-B1 AC/DC 12V~240V Delay Time Relay Mini Power Off Delay Time Relay DIN Rail Type with LED Indicators Single Function Power Off Delay Relay
- [Single function relay]:Mini power off delay time relay is a single function power-off delay relay and time delay can be set by panel knob.; [DIN rail type]:DIN rail type, can be mounted on 35mm DIN rail.; [Super wide delay time]:This time relay has super wide delay time, the range is between 0.1s and 10days.; [Relay status]:Designed with LED indicators, you can know the relay working status at anytime.; [Working voltage]:Delay time relay is with AC/DC 12V-240V working voltage.
+
+
Overview
Specs
Reviews
Product description
Specification:
Function: Delay
OFF Nominal supply voltage: AC / DC 12-240V (50-60Hz)
Power terminal: A1-A2
Power Consumption: AC 0.09 -3VA / DC 0.05 - 1.7W
Setting method: knob

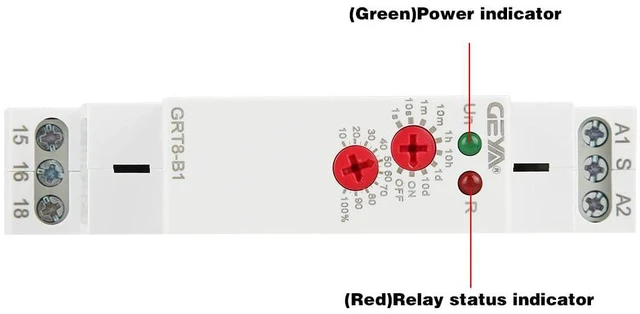

Power Indicator: Green
LED Delay range: 0.1 s-10 days, normally open, normally closed
Setting accuracy: 10%
Output contact: 1 x SPDT, 16A / AC1, 250VAC / 24VDC
Minimum switching power: 500mW
Output relay indication: Red
LED Mechanical life: 1x107
Restart time: maximum 200 ms
Working temperature: -20 ~ 55

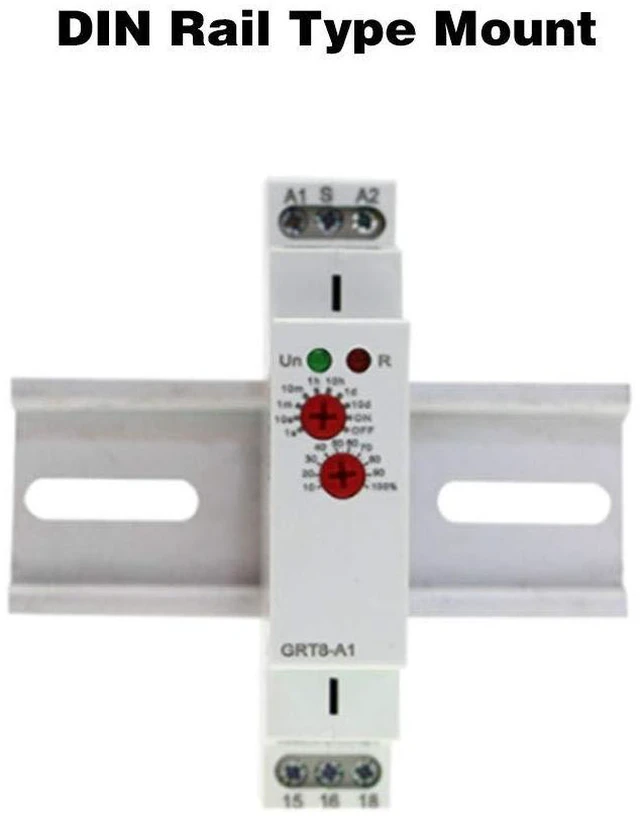

Mounting method: 35mm DIN rail
Mounting altitude: 2000m Approximate weight. 74g / 2.6 oz GRT8-B2 Mini Single Function Control Din Rail Time Relay DH48J-8A Round 8 Pins LCD Display Digital Electronic Counter 0-999900(12VAC/DC) GRT8-K1 Time Relay 4 Delay Modes GRT8-B2 Mini Single Function Control Din Rail Time Relay Buying Options Buying Options Buying Options Add to Cart Customer Reviews 4.6 out of 5 stars 5 Price no data no data no data $ 30.00 $30.
00 Power Terminal: A1-A2
Power Connection: round 8 pin
Power Terminal: A1-A2
Power Terminal: A1-A2
Specification:
Function: Delay
OFF Nominal supply voltage: AC / DC 12-240V (50-60Hz)
Power terminal: A1-A2
Power Consumption: AC 0.09 -3VA / DC 0.05 - 1.7W
Setting method: knob
Power Indicator: Green
LED Delay range: 0.1 s-10 days, normally open, normally closed
Setting accuracy: 10%
Output contact: 1 x SPDT, 16A / AC1, 250VAC / 24VDC
Minimum switching power: 500mW
Output relay indication: Red
LED Mechanical life: 1x107
Restart time: maximum 200 ms
Working temperature: -20 ~ 55
Mounting method: 35mm DIN rail
Mounting altitude: 2000m Approximate weight. 74g / 2.6 oz GRT8-B2 Mini Single Function Control Din Rail Time Relay DH48J-8A Round 8 Pins LCD Display Digital Electronic Counter 0-999900(12VAC/DC) GRT8-K1 Time Relay 4 Delay Modes GRT8-B2 Mini Single Function Control Din Rail Time Relay Buying Options Buying Options Buying Options Add to Cart Customer Reviews 4.6 out of 5 stars 5 Price no data no data no data $ 30.00 $30.
00 Power Terminal: A1-A2
Power Connection: round 8 pin
Power Terminal: A1-A2
Power Terminal: A1-A2
