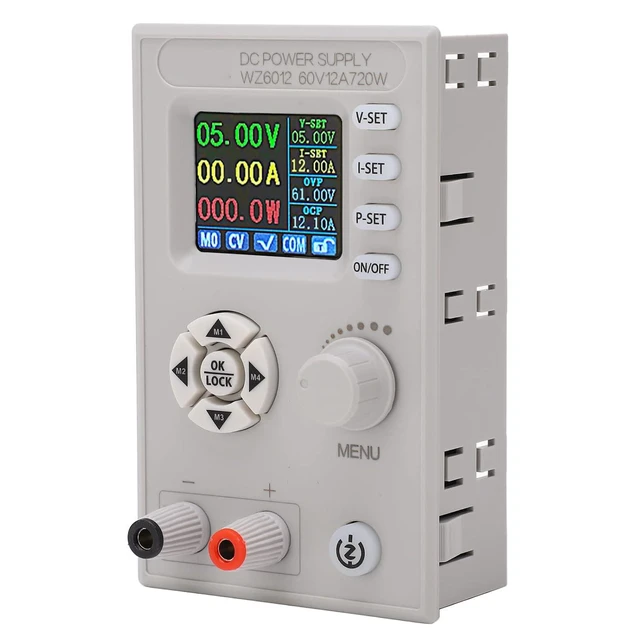

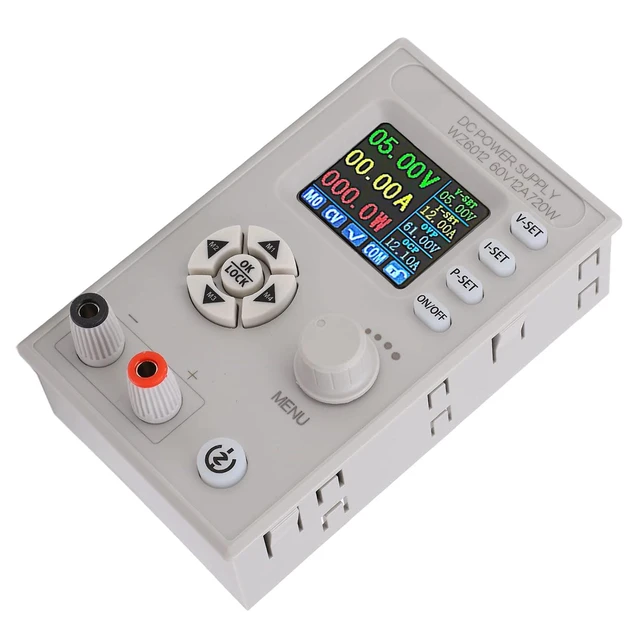

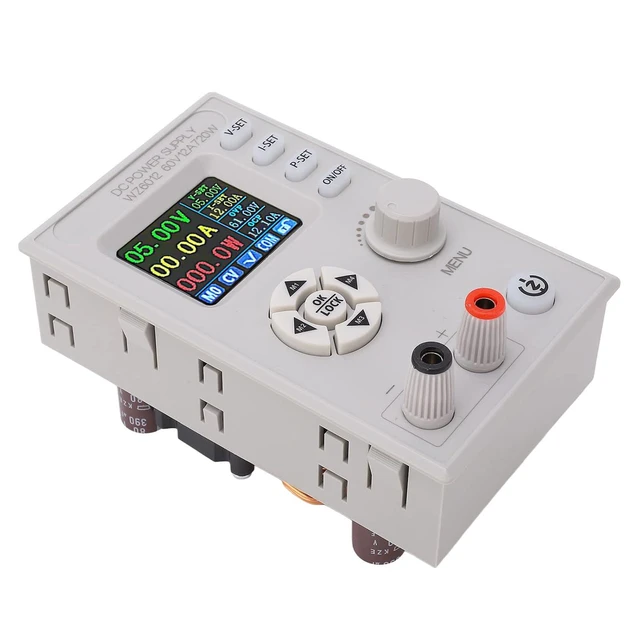

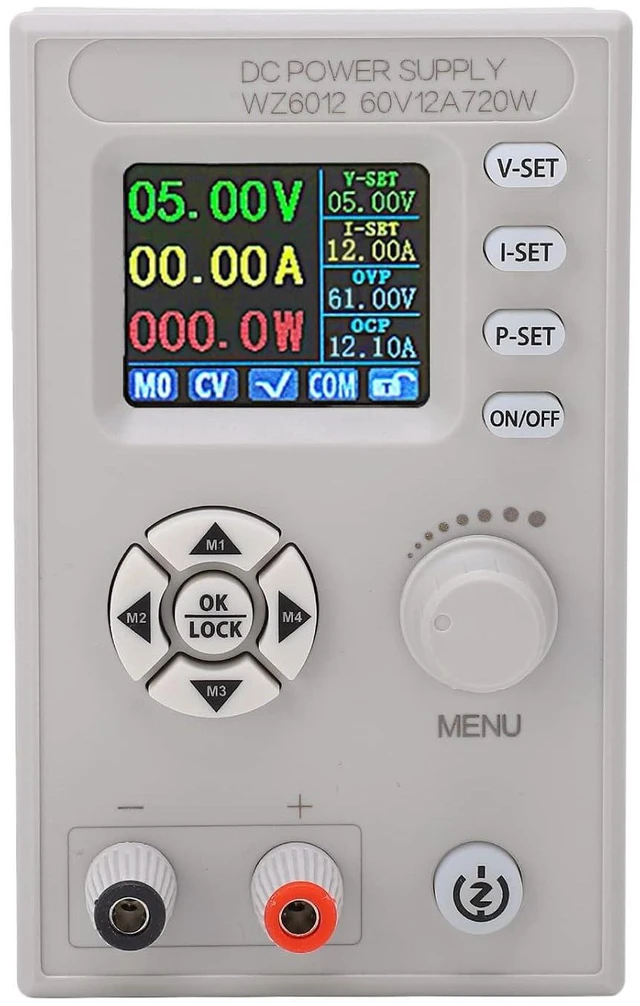

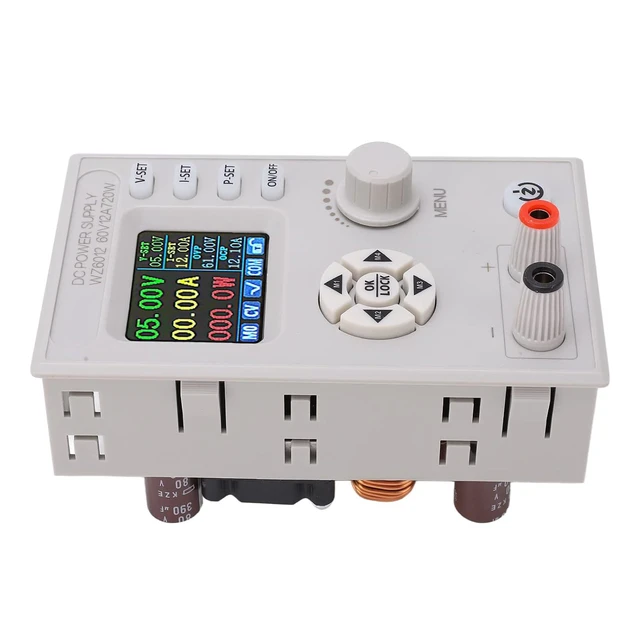

DC Stabilized Power Supply Module Red Copper Coil Adjustable Voltage Regulation Power Module DC 9 to 70V to 0 to 60V 12A 720W
Limited time offer, ends 10/07 By Kepler Forge
- [Wide Application] This power module is widely used in high power solar street light drive, various LED light CV drive, vehicle and mobile device power supply, DIY adjustable CV CC power supply, solar charging.; [High Conversion Efficiency] The high performance components of the power converter module ensure high conversion efficiency of up to 98%, helping you get the job done efficiently.; [Adjustable Voltage] This is a DC power converter module with long service life, high power and stable output, which can convert DC 9 to 70V to DC 0 to 60V.; [Accurate LED Display] The power converter module has a high definition 4 digit display, which can display 3 values of voltage, current and power at the same time, and the data is accurate to 0.01V and 0.01A.; [ABS and Red Copper] The copper coil has good electrical conductivity and can carry more current, and the ABS has good wear and prolongs the service life of the module.
+
+
Overview
Specs
Reviews
Specification: Item
Type: DC Stabilized
Power Supply Module Material: ABS, red copper
Model: WZ6012
Input Voltage Range: 9- 70.00V
Output Voltage Range: 0- 60.00V
Output Current Range: 0- 12.00A
Output Power Range: 0- 720.0W
Output Voltage Accuracy: ±( 0.3 %+3 words) Typical Output 200mV
Statistical Time Range: 0-100 hours (unit S)
Capacity Measurement Range: 0- 9999.99AH
Screen Brightness: 0-6 in total of 7 levels
Screen Display: 1.8 in color
LCD Input Voltage Resolution: 0.01V
Output Voltage Resolution: 0.01V
Output Current Resolution: 0.01A
Input Voltage Accuracy: ±(1%+5 words)
Output Current Accuracy: ±( 0.5 %+5 words) Normal
Working Temperature range: -10-40 Energy
Measurement Range: 0- 9999.99WH Statistical Error of
Capacity Energy: ±2%
Depressurization Working Mode: Dropout> 0.05 %+1V

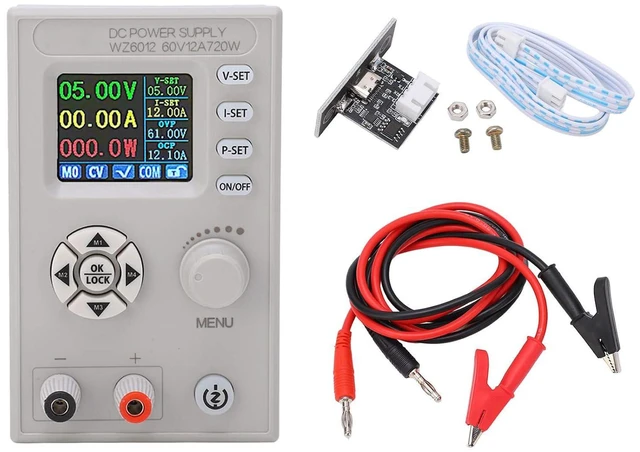

Package List: 1 x DC Stabilized Power Supply Module2 x Power Cable 1 x USB Module 1 x 4Pin Data Cable 2 x Screw 2 x
Nut Note:
1. When using batteries, switching power supplies, solar panels or generators as input power, please lower the battery voltage value. Otherwise, the battery and power supply will be damaged.
2. Download and use the PC host computer and the APP supporting data package.
3. The PC software only supports for 7 and.
4. The host computer software and APP only provide simple demonstration functions. If complex operations are required, you can design and program according to the communication protocol.
Type: DC Stabilized
Power Supply Module Material: ABS, red copper
Model: WZ6012
Input Voltage Range: 9- 70.00V
Output Voltage Range: 0- 60.00V
Output Current Range: 0- 12.00A
Output Power Range: 0- 720.0W
Output Voltage Accuracy: ±( 0.3 %+3 words) Typical Output 200mV
Statistical Time Range: 0-100 hours (unit S)
Capacity Measurement Range: 0- 9999.99AH
Screen Brightness: 0-6 in total of 7 levels
Screen Display: 1.8 in color
LCD Input Voltage Resolution: 0.01V
Output Voltage Resolution: 0.01V
Output Current Resolution: 0.01A
Input Voltage Accuracy: ±(1%+5 words)
Output Current Accuracy: ±( 0.5 %+5 words) Normal
Working Temperature range: -10-40 Energy
Measurement Range: 0- 9999.99WH Statistical Error of
Capacity Energy: ±2%
Depressurization Working Mode: Dropout> 0.05 %+1V
Package List: 1 x DC Stabilized Power Supply Module2 x Power Cable 1 x USB Module 1 x 4Pin Data Cable 2 x Screw 2 x
Nut Note:
1. When using batteries, switching power supplies, solar panels or generators as input power, please lower the battery voltage value. Otherwise, the battery and power supply will be damaged.
2. Download and use the PC host computer and the APP supporting data package.
3. The PC software only supports for 7 and.
4. The host computer software and APP only provide simple demonstration functions. If complex operations are required, you can design and program according to the communication protocol.
