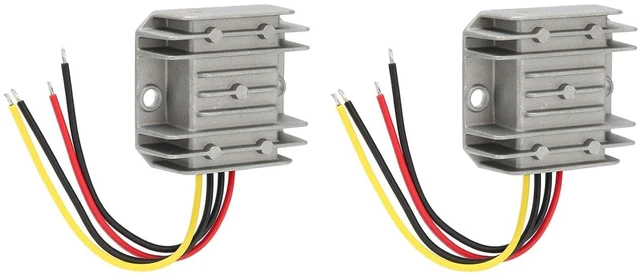

2PCS DC Voltage Reducer Converter Power Supply Transformer DC 36V 48V to 12V 10A 120W Voltage Converter Sealing for LED Display Electric Fan Security Systems

Spec: Item
Type: Voltage
Reducer Material: Silicone +
Aluminum Model: GYVRM-K481210
Input Voltage Range: 36V48V (DC20-60V)
Output Voltage: 12V Rated
Output Current: 10A
Output Power: 120W
Protection Class: IP67
Conversion Efficiency: Up to 96%
Operating Temperature: -20 ~ + 80 Installation
Cable Length: Approx. 13cm / 5.1 in
Note:
1. In order to ensure the normal of the converter, the input voltage shall not be lower than the minimum or maximum input value limited by the product. The input voltage shall be more than 2V higher than the output voltage value. If there is No voltage difference of 2V, the output value will be lower without damaging (affecting) the use of the converter.
2. The input current must be greater than or equal to the power required by the output load device (e. g., the power required by the load device is 100W, so the input power must be greater than or equal to 100W). In the use of the converter, the current of the load device should not be greater than the maximum current value that the converter can withstand. As far as possible, the converter should be left with a margin to ensure the normal of the converter to achieve the highest conversion efficiency.
3. When using, the positive and negative terminals of the converter should not be connected back, which may cause damage to the converter. It is recommended to add a suitable fuze at the input end when using.
4. Without load, the chip works in light load mode, and the output voltage may change within a certain range.
Package List: 2 x Voltage Reducer
