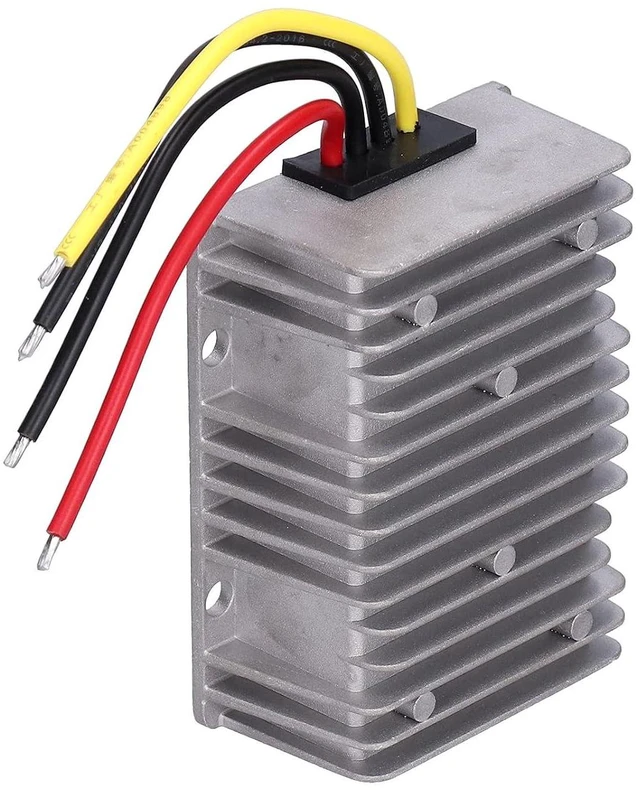

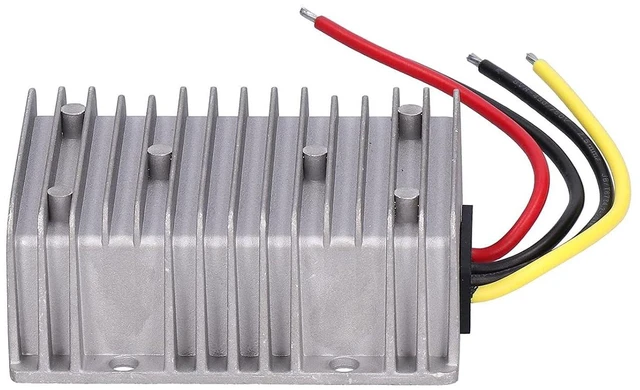

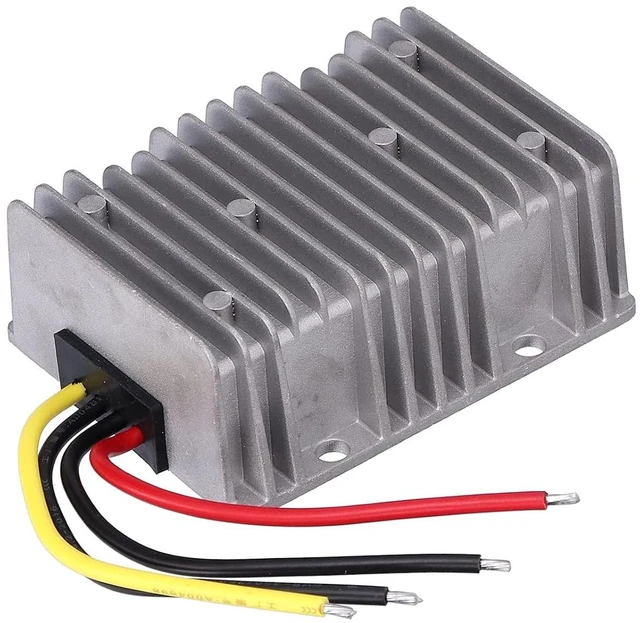

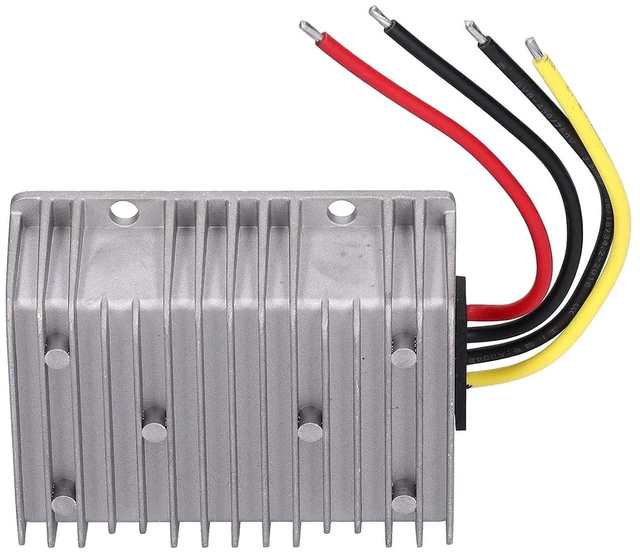

72V to 24V Conversion Module, Voltage Regulator Converter Power 20A 480W, IP67 Rated for Cameras, LED Lights with Silicone Aluminum Design, -20+80
Limited time offer, ends 10/07 By Kepler Forge
- [WIDE APPLICATION] This converter is suitable for various voltage regulator equipment, including cameras, electric fans, water pumps, motors, LED lights, security systems, and more.; [MULTIPLE PROTECTIONS] Built-in protector features automatic cut off for overcurrent, overvoltage, overheating, and short circuit, ensuring and .; [EXCELLENT PERFORMANCE] With a high conversion efficiency of up to 96%, this 72V to 24V converter delivers a stable output power of 480W for efficient .; [IP67 DESIGN] The organic silicone potting technology and IP67 level make this converter , , and shockproof, ideal for harsh environments.; [EASY INSTALLATION] The module comes with an installation line length of 13cm, making it convenient to set up and use in various applications.
+
+
Overview
Specs
Reviews
1. This module is a 72V to 24V DC power converter, which is used for various voltage regulator equipment.
2. When the protected circuit is at an unsafe value, the builtin protector automatically cuts off the circuit, and works normally when the value returns to the normal range.

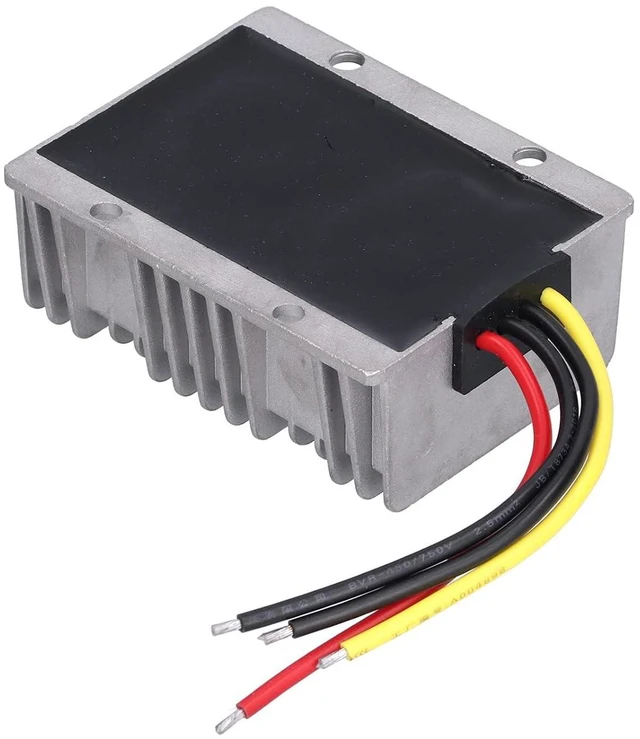

3. Using organic silicone potting technology, it is, and shockproof, suitable for various harsh environments.
4. With automatic functions such as overcurrent, overvoltage, overheating, short circuit, etc., allround of the circuit.
5. Used for cameras, electric fans, water pumps, motors, LED lights, security systems, audio equipment, industrial electrical equipment, etc.
Specification: Item
Type: DCDC

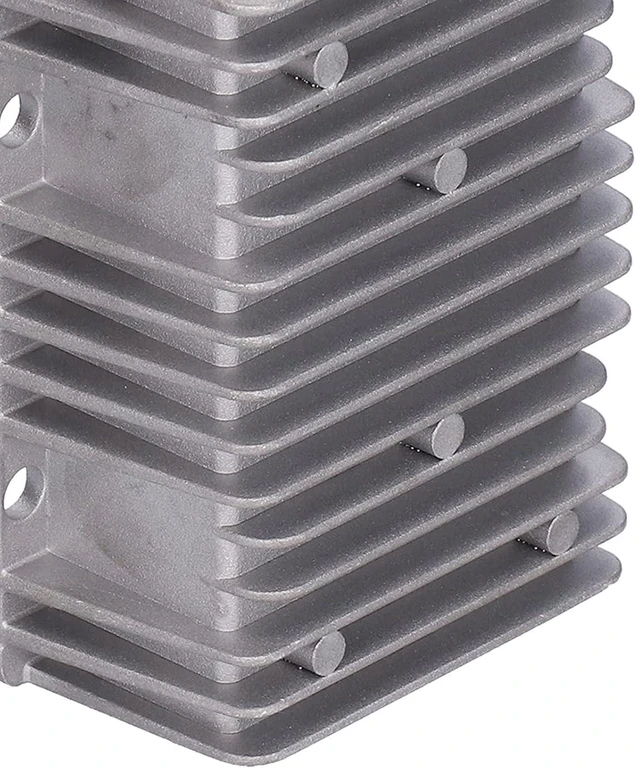

Converter Material: Organic silicone + aluminum
Model: GYVRM-JD1L722420
Input Voltage Range: 72V(DC60-90V)
Output Voltage: 24V Rated
Output Current: 20A
Output Power: 480W
Level: IP67
Conversion Efficiency: Up to 96%
Working Temperature: -20~+80
Installation Line Length: Approx. 13cm / 5.1 in packing list: 1 x Power Converter 1 x
Wiring Drawing Note:
1. In order to ensure the normal of the converter within the input voltage range, the input voltage must not be lower than the minimum or maximum input value restricted by the product during use, and the input voltage value must be higher than the output voltage value by more than 2V. If there is no 2V voltage difference, the output value will be lower, but it will not damage (affect) use of the converter.
2. The input current must be greater than or equal to the power required by the output load device (for example, if the power of the load device needs 100W, then the input power must be greater than or equal to 100W). When the converter is in use, the current of the load device should not be greater than the maximum current value that the converter can withstand, and leave as much margin as possible for the converter to ensure that the converter works normally and achieves the highest conversion efficiency.
3. The positive and negative poles of the converter cannot be reversely connected during use. Reverse connection may cause damage to the converter. It is recommended to add a suitable to the input terminal during use.
4. The chip works in light load mode when there is no load, and the output voltage may vary within a certain range.
2. When the protected circuit is at an unsafe value, the builtin protector automatically cuts off the circuit, and works normally when the value returns to the normal range.
3. Using organic silicone potting technology, it is, and shockproof, suitable for various harsh environments.
4. With automatic functions such as overcurrent, overvoltage, overheating, short circuit, etc., allround of the circuit.
5. Used for cameras, electric fans, water pumps, motors, LED lights, security systems, audio equipment, industrial electrical equipment, etc.
Specification: Item
Type: DCDC
Converter Material: Organic silicone + aluminum
Model: GYVRM-JD1L722420
Input Voltage Range: 72V(DC60-90V)
Output Voltage: 24V Rated
Output Current: 20A
Output Power: 480W
Level: IP67
Conversion Efficiency: Up to 96%
Working Temperature: -20~+80
Installation Line Length: Approx. 13cm / 5.1 in packing list: 1 x Power Converter 1 x
Wiring Drawing Note:
1. In order to ensure the normal of the converter within the input voltage range, the input voltage must not be lower than the minimum or maximum input value restricted by the product during use, and the input voltage value must be higher than the output voltage value by more than 2V. If there is no 2V voltage difference, the output value will be lower, but it will not damage (affect) use of the converter.
2. The input current must be greater than or equal to the power required by the output load device (for example, if the power of the load device needs 100W, then the input power must be greater than or equal to 100W). When the converter is in use, the current of the load device should not be greater than the maximum current value that the converter can withstand, and leave as much margin as possible for the converter to ensure that the converter works normally and achieves the highest conversion efficiency.
3. The positive and negative poles of the converter cannot be reversely connected during use. Reverse connection may cause damage to the converter. It is recommended to add a suitable to the input terminal during use.
4. The chip works in light load mode when there is no load, and the output voltage may vary within a certain range.
