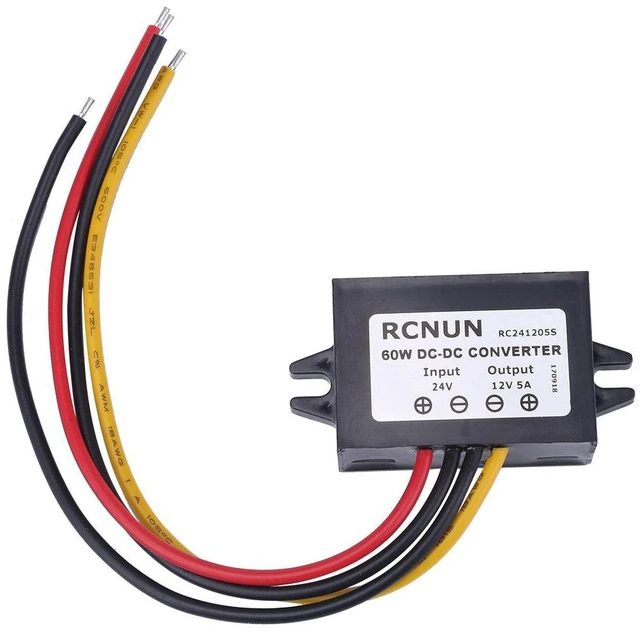

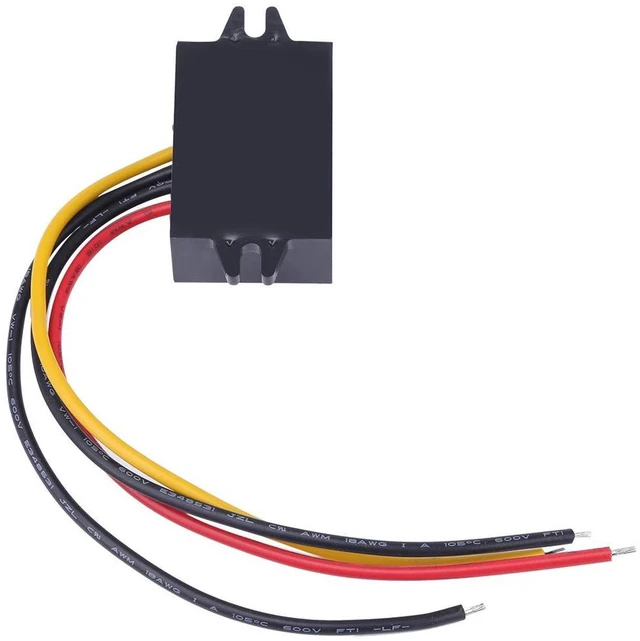

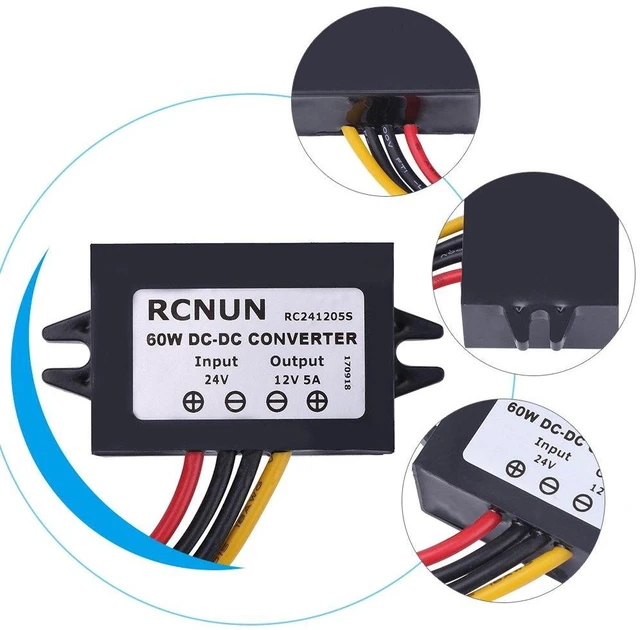

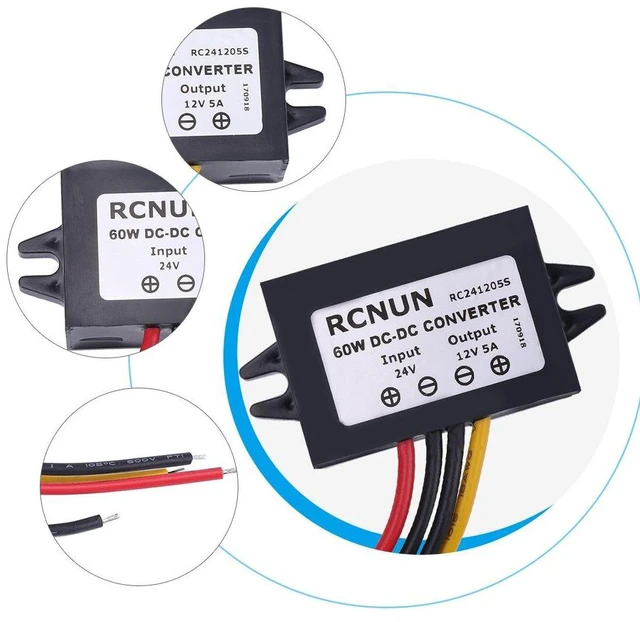

DC24V to 12V Voltage Reducer, Walfront 600W 5A DC to DC IP68 Car Step Down Converter Supply Transformer Volt Inverter for Car Auto Motor Vehicle Automotive

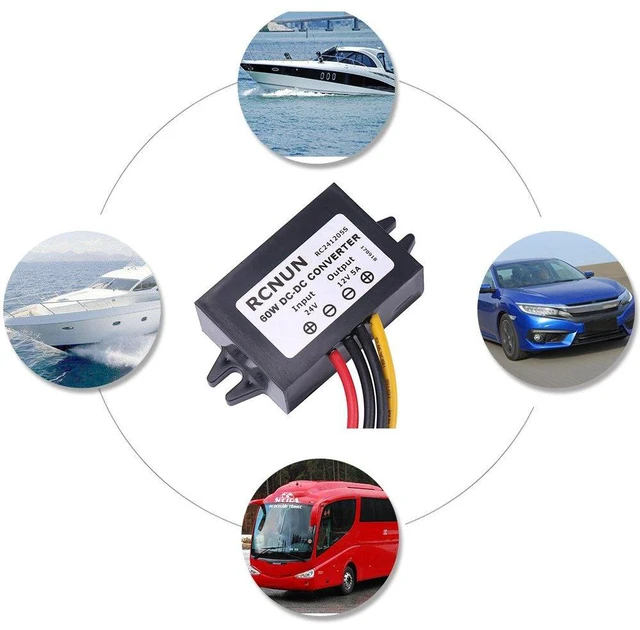

- : High power and stable output converter input voltage range is DC 18-40V, it converts 24VDC to 12VDC, output current 10A, output power 60W.; : Aluminum alloy housing is small and easy to mount; sealed with silicone, it is (IP68), components ensures high conversion efficiency, up to >90% , low heat generated and; Adjustable DC to DC converter: Using a mini screwdriver to increase or decrease output voltage by adjusting the potentiometer screw, clockwise to step up voltage and counterclockwise to step down voltage.; to use: it is water anti-shock, dampproof and anti-dust; high Voltage , output over current , output short circuit , chip overheating .; Wide application: large trucks/taxi radio /emu/car audio/LCD TV/advertising screen/monitoring system/solar power and DIY etc.
+
+
Overview
Specs
Reviews
Features: This is a non-isolation DC regulated power converter module with long service life. High power and stable output, it converts 24VDC to 12VDC. Aluminum alloy housing is small and easy to mount; sealed with silicone, it is (IP68), dust and vibration components ensures high conversion efficiency, up to >90%. Wide input voltage, it supports over current, over voltage, over temperature and short circuit.
Voltage: 24V DC
Input Voltage Range: 18-40V
DC Conversion Efficiency: >90%
Output Voltage: 12V
Output Current: 5A Rated
Output Power: 60W Peak
Output Power: 130%
Voltage Regulation: <1%
Load Regulation: <2%
No-load Current: <20mA <40mV
Operating Temperature: -34~+80
Ingress Rating: IP68
Over Current: YES
Over Voltage: YES
Over Temperature: YES
Short Circuit: YES
Size: 46*32*18mm/ 1.81 * 1.25 * 0.7 in
Package Includes: 1 x
Voltage Converter Note: Please be careful and connect wires correctly, otherwise the module will be damaged.
Specifications
: InputVoltage: 24V DC
Input Voltage Range: 18-40V
DC Conversion Efficiency: >90%
Output Voltage: 12V
Output Current: 5A Rated
Output Power: 60W Peak
Output Power: 130%
Voltage Regulation: <1%
Load Regulation: <2%
No-load Current: <20mA <40mV
Operating Temperature: -34~+80
Ingress Rating: IP68
Over Current: YES
Over Voltage: YES
Over Temperature: YES
Short Circuit: YES
Size: 46*32*18mm/ 1.81 * 1.25 * 0.7 in
Package Includes: 1 x
Voltage Converter Note: Please be careful and connect wires correctly, otherwise the module will be damaged.
