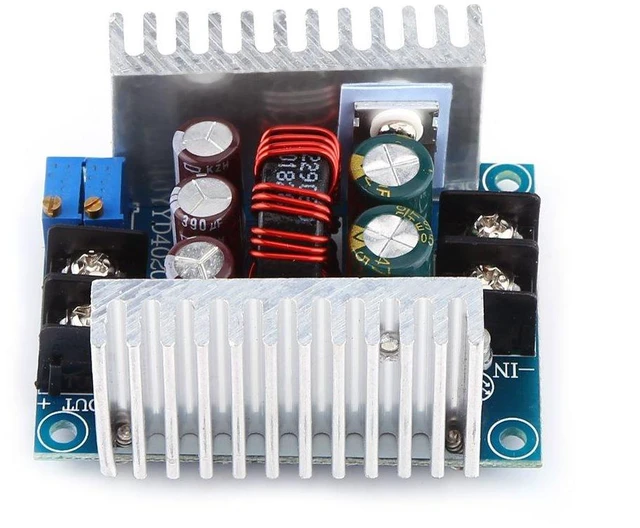

300W 20A DC-DC Step Down Converter Constant Current Adjustable Converter Step Down Voltage Module Volt Reducer Transformer Module
Limited time offer, ends 10/07 By Kepler Forge
- With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current; The efficiency can be up to 96%, measured at 20A, converting 24V to 12V; It is designed with 75V/80A large current dual MOS tube; Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output; Wiring is convenient with these large current 30A screw terminals
+
+
Overview
Specs
Reviews
Product description Features
1. With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current
2. The efficiency can be up to 96%, measured at 20A, converting 24V to 12V
3. It is designed with 75V/80A large current dual MOS tube
4. Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output
5. Wiring is convenient with these large current 30A screw terminals
Voltage: 6V to 40V DC (10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A(max. ), 15A(suggested, )
Efficiency: 95%(24V to 12V, 20A)
Output Ripple: 50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery (cannot short circuit for long time)

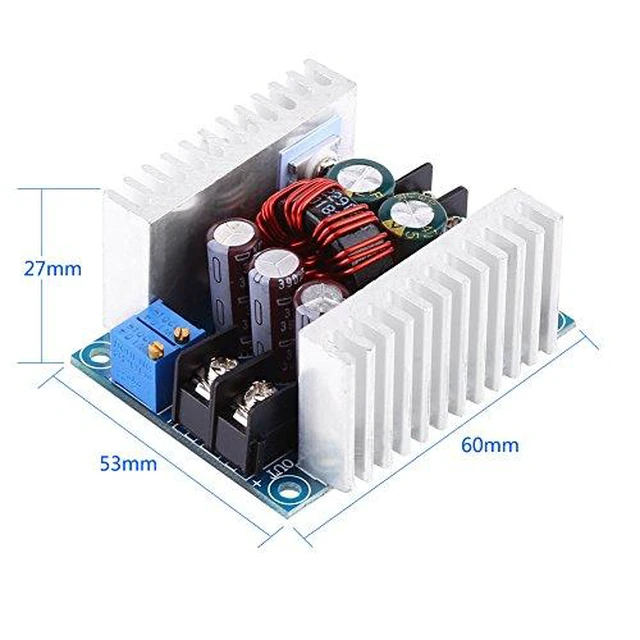

Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
Package Includes: 1 x

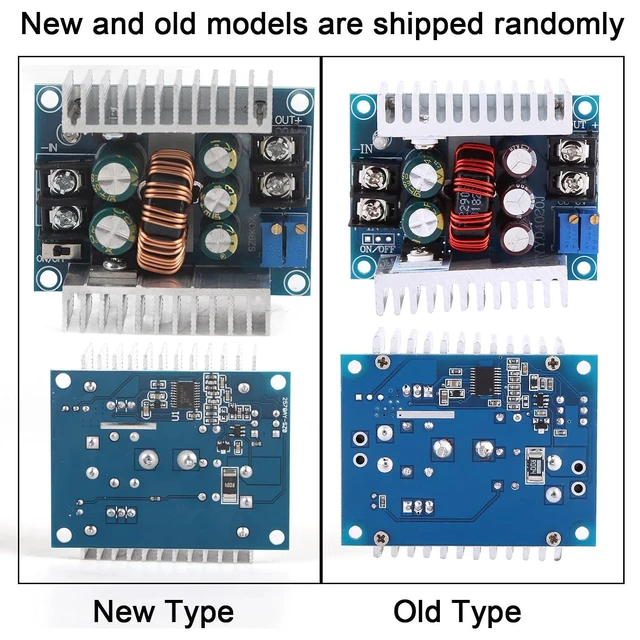

Module Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
1. With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current
2. The efficiency can be up to 96%, measured at 20A, converting 24V to 12V
3. It is designed with 75V/80A large current dual MOS tube
4. Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output
5. Wiring is convenient with these large current 30A screw terminals
Specifications
: InputVoltage: 6V to 40V DC (10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A(max. ), 15A(suggested, )
Efficiency: 95%(24V to 12V, 20A)
Output Ripple: 50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery (cannot short circuit for long time)
Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
Package Includes: 1 x
Module Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
