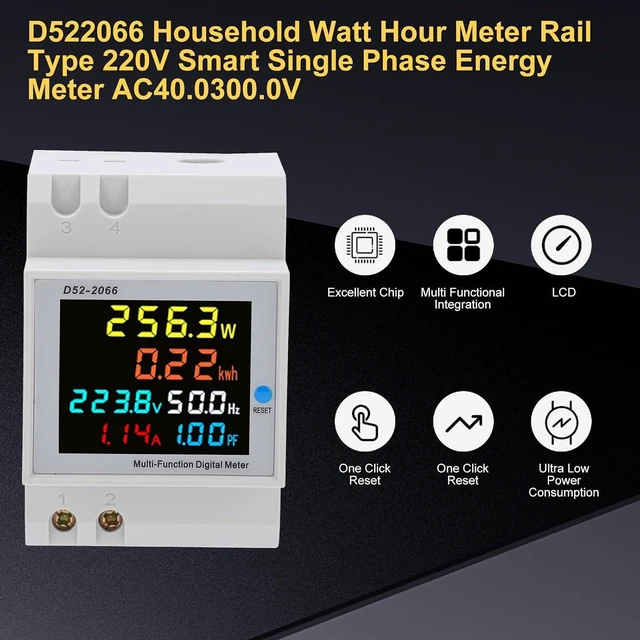

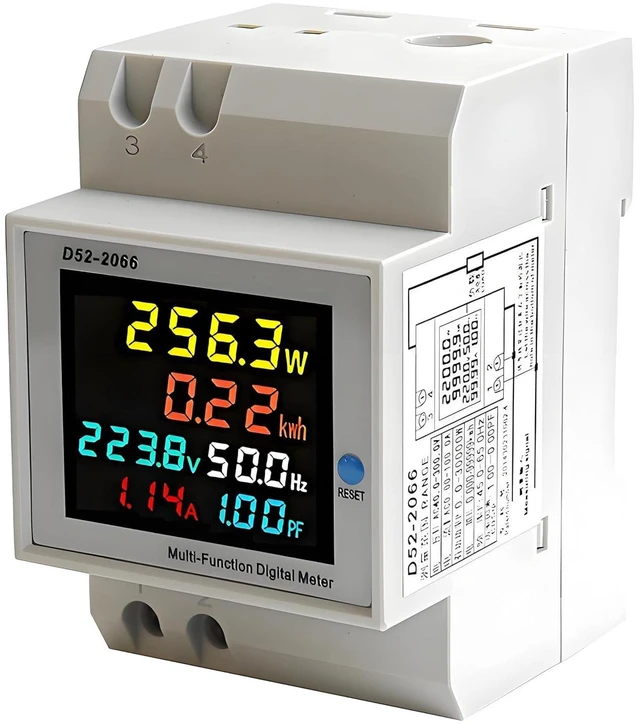

D52-2066 Single Phase Energy Meter with LCD Display Din Rail Electricity Usage Monitor for Voltage Current Power KWh Frequency Power Factor - 220V AC 40V-300V 100A Household & Industrial Use

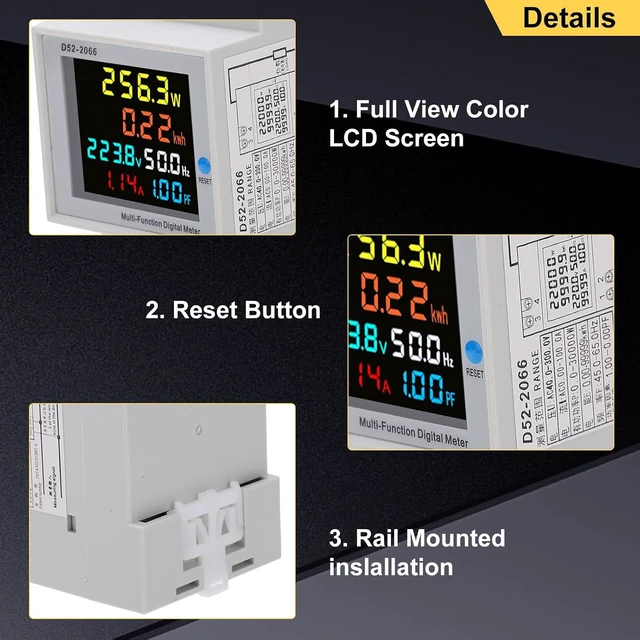

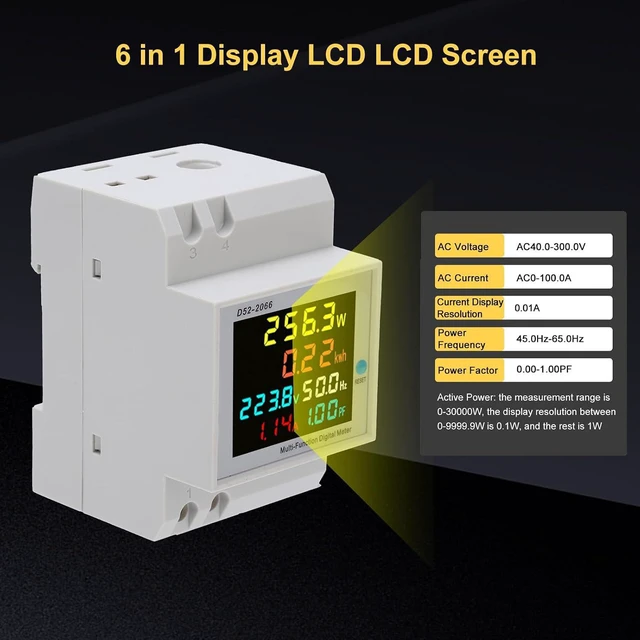

- LCD SCREEN -- Full viewing angle colorful LCD screen, 178° wide viewing angle.; 6 PARAMETERS -- The instrument displays 6 parameters including AC voltage, AC current, active power, power factor, frequency and electric energy at the same time.; CHECK POWER CONSUMPTION -- The electricity consumption of the whole house is clear at a , and the electricity consumption of the house can be monitored at any time.; APPLICATION -- Applicable to the chemical industry, power plant, automation equipment, DOS system, electromechanical equipment and other places.; LIGHTWEIGHT -- Small size, light weight, easy to carry, convenient and practical.
+
+
Overview
Specs
Reviews
Product description
Specification: Item
Type: WattHour
Meter Model: D52-2066
Material: ABS
Measurement Accuracy: 1%±2
Words Measuring Range: AC
Voltage: AC 40.0 - 300.0V, AC
Current: AC0- 100.0A
Current Display Resolution: 0.01A
Power Frequency: 45.0H z- 65.0H z
Power Factor: 0.00 - 1.00PF
Measurement Speed: about 2 times per second
Installation Method: Rail Type How to
Use:
1. Connect the measured voltage to the 1 and 2 terminals on the bottom left of the meter.

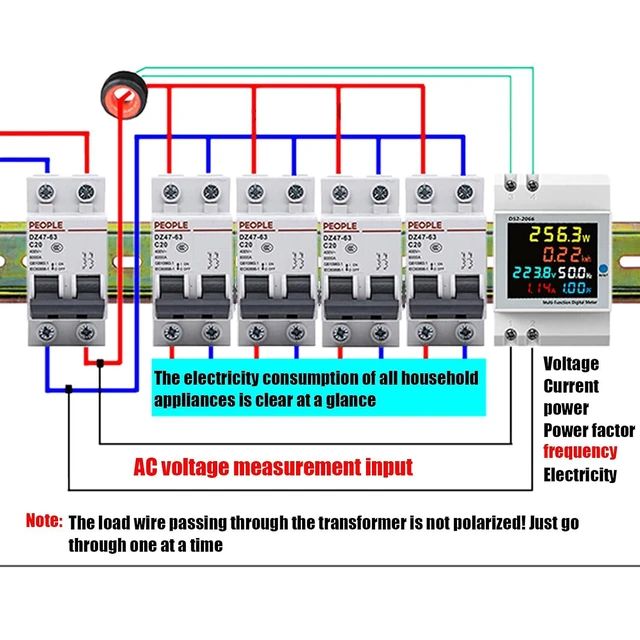

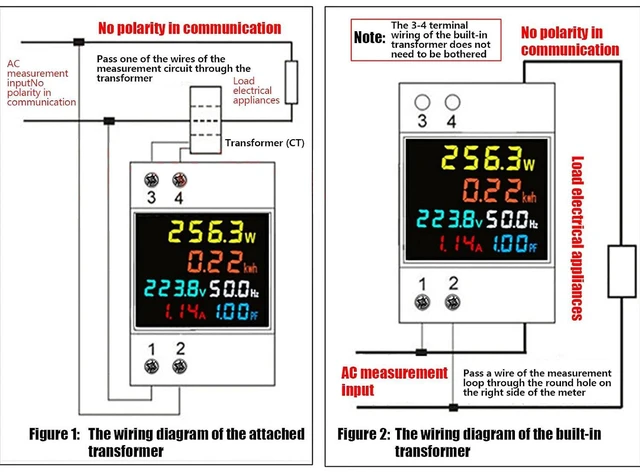

2. The builtin transformer is wired according to the wiring diagram in Figure 1, and the wire of the measurement loop is passed through the hole under the meter. The penetration direction of the wire is arbitrarily selected by the user according to the situation of use. Or penetrate from the circular hole on the top of the meter and come out from the bottom.
3. Connect the external transformer according to the wiring diagram in Figure 2, connect the 2 wires of the secondary end of the accurate current transformer with the meter to the 3 and 4 terminals on the upper left of the meter, and pass the wires of the measurement circuit through the mutual inductance.
4. The meter displays the measurement parameters after the power is turned on.
5. When it is necessary to reset the energy measurement (when measuring from 0), press and hold the button (RESET) on the right side of the instrument panel for 5 seconds (press and hold for 5 seconds) until the energy display is 0, release the button, At this time, the electrical energy is measured from
0.
Package List: 1 x Smart Watt-Hour Meter 1 x
Manual Note: The measuring voltage range of this instrument is 250450V and only suitable for pure AC 4565Hz mains power, and the measuring range is 40300V without limitation.
Specification: Item
Type: WattHour
Meter Model: D52-2066
Material: ABS
Measurement Accuracy: 1%±2
Words Measuring Range: AC
Voltage: AC 40.0 - 300.0V, AC
Current: AC0- 100.0A
Current Display Resolution: 0.01A
Power Frequency: 45.0H z- 65.0H z
Power Factor: 0.00 - 1.00PF
Measurement Speed: about 2 times per second
Installation Method: Rail Type How to
Use:
1. Connect the measured voltage to the 1 and 2 terminals on the bottom left of the meter.
2. The builtin transformer is wired according to the wiring diagram in Figure 1, and the wire of the measurement loop is passed through the hole under the meter. The penetration direction of the wire is arbitrarily selected by the user according to the situation of use. Or penetrate from the circular hole on the top of the meter and come out from the bottom.
3. Connect the external transformer according to the wiring diagram in Figure 2, connect the 2 wires of the secondary end of the accurate current transformer with the meter to the 3 and 4 terminals on the upper left of the meter, and pass the wires of the measurement circuit through the mutual inductance.
4. The meter displays the measurement parameters after the power is turned on.
5. When it is necessary to reset the energy measurement (when measuring from 0), press and hold the button (RESET) on the right side of the instrument panel for 5 seconds (press and hold for 5 seconds) until the energy display is 0, release the button, At this time, the electrical energy is measured from
0.
Package List: 1 x Smart Watt-Hour Meter 1 x
Manual Note: The measuring voltage range of this instrument is 250450V and only suitable for pure AC 4565Hz mains power, and the measuring range is 40300V without limitation.
