DC-DC 36V-72V to 24V Converter Step Down Voltage Module Power Converter Transformer High Efficiency 10A 240W Voltage Regulator
Limited time offer, ends 10/07 By Kepler Forge
- Step Down ConverterThis voltage step down converter would convert 36V/48V/60V/72V DC to 24V DC. With short-circuit protection, over-current protection, over-temperature protection, over-voltage; Adjustable Output PowerHigh power and stable output, output power is 240W. Adjustable output power supply transformer.The module is waterproof, anti-shock, and moisture-proof and has stronger durability.; 92% Conversion EfficiencyHigh quality components ensures high conversion efficiency, up to 92%. adopts synchronous rectification technology. Tiny in size and light in weight, hence is convenient to carry out for usage.; Easy InstallationSturdy housing is small and easy to mount. Before using, please select the input voltage 36-72V according to your local voltage, to avoid damaging.; Wide ApplicationWidely used for electric motors, fans, and many other devices. mainly used for a variety of DC equipment, DC motor stepless speed regulation, research and testing, student experiment and so on.
+
+
Overview
Specs
Reviews
Product description DC-DC 36V-72V to 24V Converter Step Down Voltage Module Power Converter Transformer High Efficiency 10A 240W
Voltage Regulator Features: Easy Installation Sturdy housing is small and easy to mount. Before using, please select the input voltage 36-72V according to your local voltage, to avoid damaging. Step Down Converter This voltage step down converter would convert 36V/48V/60V/72V DC to 24V DC. With short-circuit, over-current, over-temperature, over-voltage. 92% Conversion Efficiency High quality components ensures high conversion efficiency, up to 92%. adopts synchronous rectification technology. Tiny in size and light in weight, hence is convenient to carry out for usage. This voltage step down converter would convert 36V/48V/60V/72V DC to 24V DC. High power and stable output, output power is 240W. High quality components ensures high conversion efficiency, up to 92%. Sturdy housing is small and easy to mount. Widely used for electric motors, fans, and many other devices.
Specification:
Model: HDC-2410
Type: DC/DC power supply

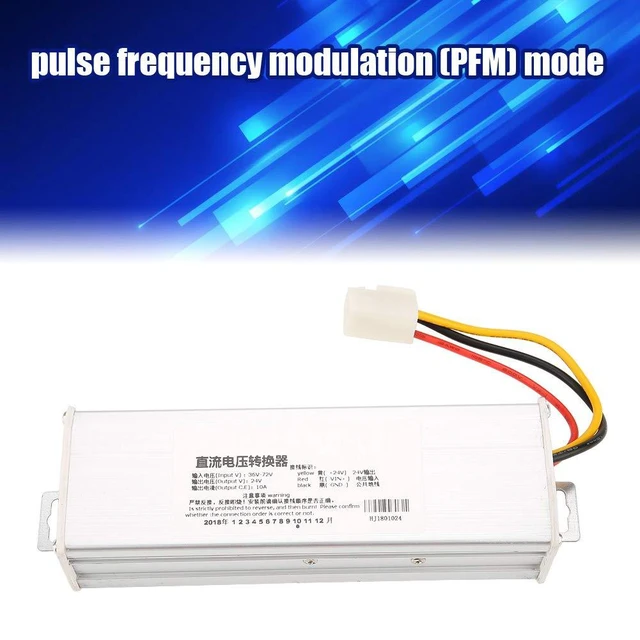

Modulation Mode: Pulse frequency modulation (PFM) Transistor
Connection Mode: Single end
Input Voltage: 36-72V
Output Power: 240W
Output Voltage: 24V
Working Efficiency: 92%
Output Noise: 1db
Output Voltage Accuracy: 3%
Voltage Regulation: 2%
Load Regulation: 4%
Output Current: 10A
Operating Temperature: -45~80
Size: 150*35*50mm / 5.9 * 1.4 *2i
Weight: 188g / 6.6 oz (approx. )

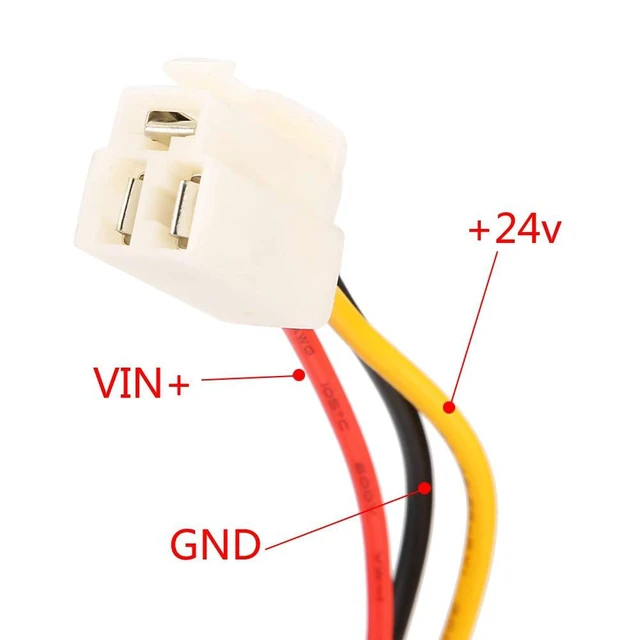

Wiring:
Yellow(+24V): 24V output
Red(VIN+): Voltage input
Black (GND): Ground
Package list: 1 * Converter
Voltage Regulator Features: Easy Installation Sturdy housing is small and easy to mount. Before using, please select the input voltage 36-72V according to your local voltage, to avoid damaging. Step Down Converter This voltage step down converter would convert 36V/48V/60V/72V DC to 24V DC. With short-circuit, over-current, over-temperature, over-voltage. 92% Conversion Efficiency High quality components ensures high conversion efficiency, up to 92%. adopts synchronous rectification technology. Tiny in size and light in weight, hence is convenient to carry out for usage. This voltage step down converter would convert 36V/48V/60V/72V DC to 24V DC. High power and stable output, output power is 240W. High quality components ensures high conversion efficiency, up to 92%. Sturdy housing is small and easy to mount. Widely used for electric motors, fans, and many other devices.
Specification:
Model: HDC-2410
Type: DC/DC power supply
Modulation Mode: Pulse frequency modulation (PFM) Transistor
Connection Mode: Single end
Input Voltage: 36-72V
Output Power: 240W
Output Voltage: 24V
Working Efficiency: 92%
Output Noise: 1db
Output Voltage Accuracy: 3%
Voltage Regulation: 2%
Load Regulation: 4%
Output Current: 10A
Operating Temperature: -45~80
Size: 150*35*50mm / 5.9 * 1.4 *2i
Weight: 188g / 6.6 oz (approx. )
Wiring:
Yellow(+24V): 24V output
Red(VIN+): Voltage input
Black (GND): Ground
Package list: 1 * Converter
