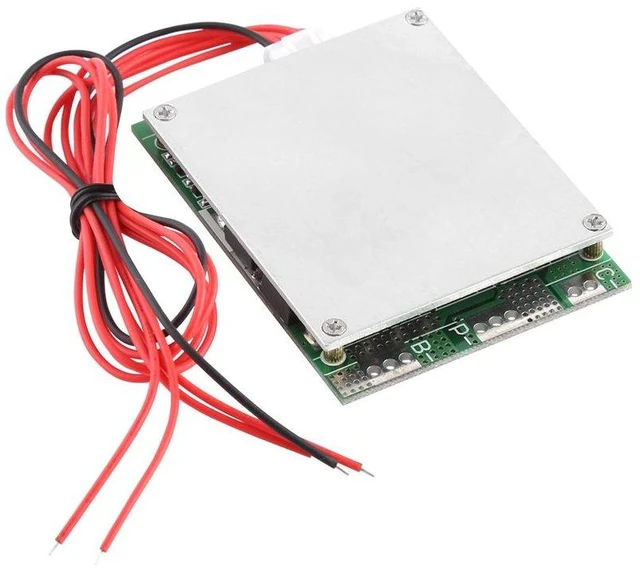

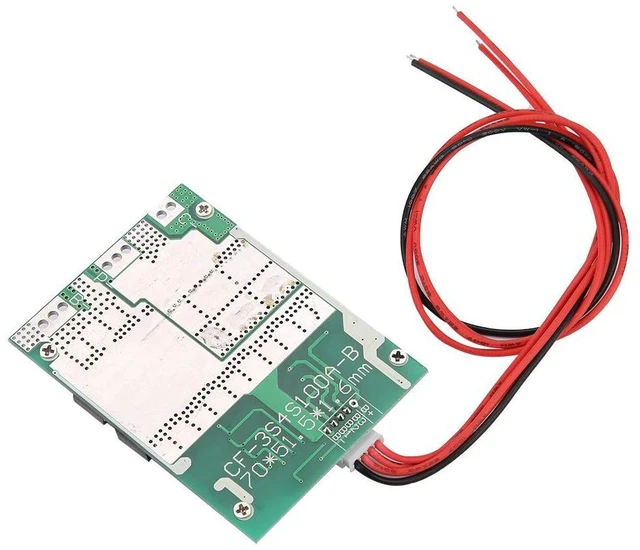

12V 100A 4Series BMS Protection Board with Balancing with Overcharge/Overdischarge/Overcurrent/Short Circuit Protection for LiFePO4 Battery Pack

Product description The protection board has various protective functions for charging and discharging, such as overcharge protection, over-discharge protection, short circuit protection and over-current protect. Choosing a protection board and applying it appropriately is vital to the longevity your batteries. It is ideal for home DIY work and school science project, wide used in battery protection work. Balance Function Balance function the board equipped ensures that each battery cell can be fully charged at the same time.

Specifications

Continuous Discharging Current: 100A (MAX) Instantaneous
Discharge Current: 150A
Charging Voltage: 15V
Charging Current: 10A (MAX)
Inner Resistance: 25m
Working Current: 20uA Sleep
Current (when Over-discharge): 10uA Working

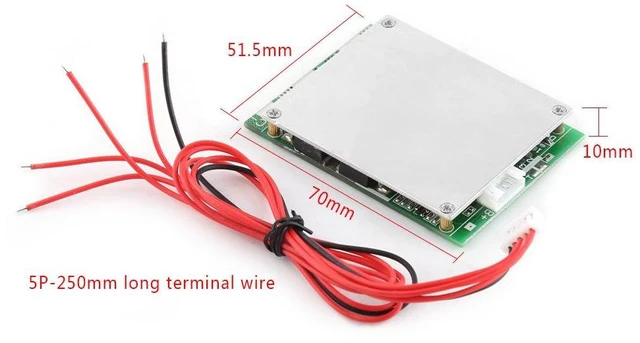

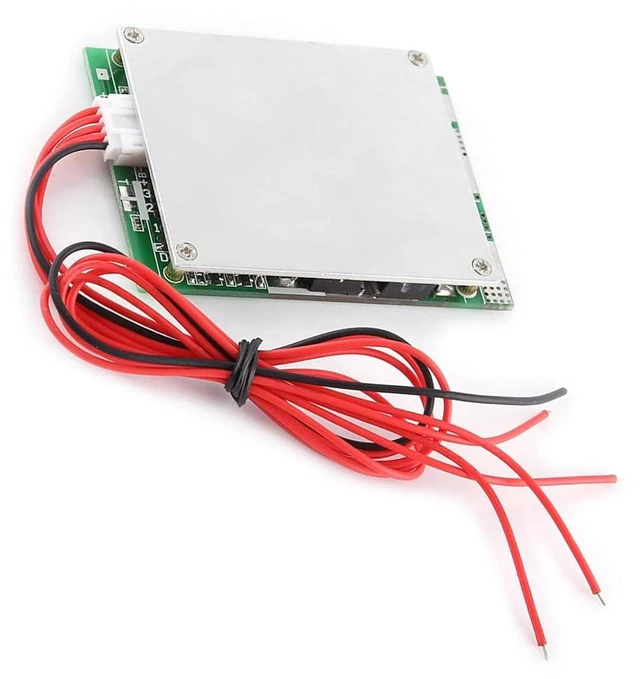

Temperature Range: -30/+80 For 4 Series 12V LiFePO4 Batteries This product is a battery protection BMS board which is designed for 4 series 12V LiFePO4 batteries. Comes with 5P-250mm wire for convenient use.
Package Includes: 1×4S Battery Protection Board (not included LiFePO4 batteries)
Multi-Protection Overcharge Protect Over-charge Detect: 3.75 ± 0.05V, Protect
Delay: 0.5S, Over-charge
release: 3.65 ± 0.1V, Detect
Voltage: 3.60 ± 0.05V, Release
Voltage: 3.60 ± 0.05V,
Balance Current: 36±5mA
Over-current Protect Detect Voltage: 150mV, Detect
Delay: 9mS,
Current Detect: 200±10A, Release
Condition: Cut Load Over-discharge Protect Over-discharge Detect: 2.0 ± 0.1V, Over-discharge
Detect delay: 0.1S, Release
Voltage: 2.25 ± 0.1V
Short-circuit Protect Protect Condition: Load Short Circuit, Detect
Delay: 250uS, Release
Condition: Cut Load Safety Can be used to avoid explosion, fire and damage of your battery pack, safe for use. It will protect battery pack from overcharging, over-discharging over-current and short circuit.

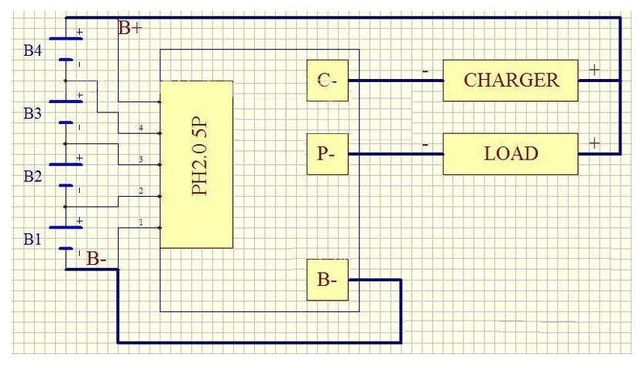

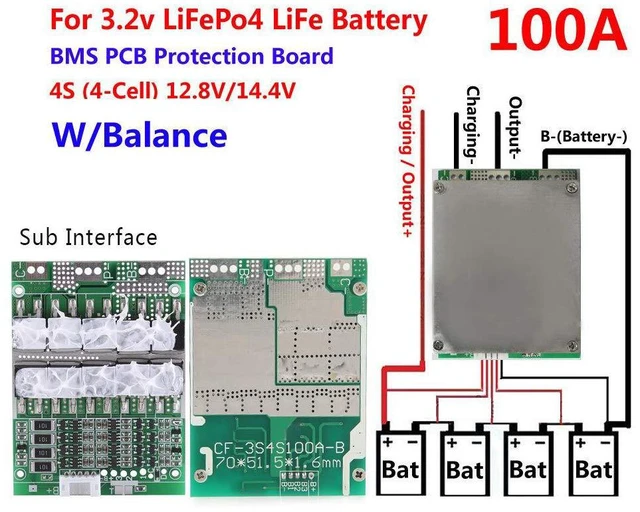

Q: How can i wire this so that its a charging and discharging bms without having separate charging and discharging ports?
A: Connect your charger directly over the battery terminals but make sure you use a charger designed for LiFePO4 batteries (LFP charge profile). Then run your load through the BMS.
Q: is there a diagram for wiring 4s2p? or does it follow standard wiring?
A: Standard. Just wire the battery cells themselves in 4s2p.
Q: how can this board supports 4 12volt batteries when you say 15 volts is max charge voltage, to charge 4x12v bat in series is 54volts
A: This is a 4S BMS. Each LiFePO4 cell is 3.6 v max which would give you 4 cells at 14.4 v at full charge.!!! DO NOT USE 12v LED ACID BATTERIES WITH THIS BMS!!!
Q: Can I tie the (output - ) and the ( charge - ) together and use this as drop in replacement for a lbacid cell? Can i then put 2bps in series for 24V?
A: NO, it will damage the board
Q: What gauge is 5P-250mm wire? I've searched everywhere and can't find it.
A: 5P is in reference to the total number of wires on this ribbon, 250mm is approximately 26 AWG gauge which can carry approximately 2.5 amps for short runs
Q: I have 1 lifepo4 battery has 12 volts and 100 amps total has 8 terminals 4 cells is this bms compatible with my battery or do i need a different bms?
A: Yes it will work since it changes 4 cells max which is what you have. note that it charges at 10Amps
Q: Will this work with lithium polymer batteries and does it limit the voltage to 12v? ( 4.2 x4= 16.4 )
Answer: Yes, it is used for 4 series 12V LiFePO4 batteries, charging voltage is 15V. See More
