Light Curtain Sensor Switch 12 Beams Safety Light Grating Security Device DC10-30V (BEM1240-C-440NB)
Limited time offer, ends 10/07 By Kepler Forge
- 5 TYPES FOR CHOICE -- Available in five for your choice, Number of Beams: 4/6/8/10/12 beams; QUALITY ALLOY MATERIAL -- aluminum alloy material, and long service life; WIDE APPLICATION -- Suitable for forging machine tools, automation equipment, shearing machines, hydraulic machines, robots, industrial robots and other automation equipment; STRONG ANTI-INTERFERENCE -- Fast response, it has shock and strong anti-interference; WITH MULTI-AREA -- This grating can be used for multi-area protection, etc.
+
+
Overview
Specs
Reviews
Product description
Specification: Output
Method: NPN/NC Working
Input Voltage: 10-30VDC Light
Curtain Type: on the
Type A Series: Relay wiring method Number of
Beams: 12 beams Optical

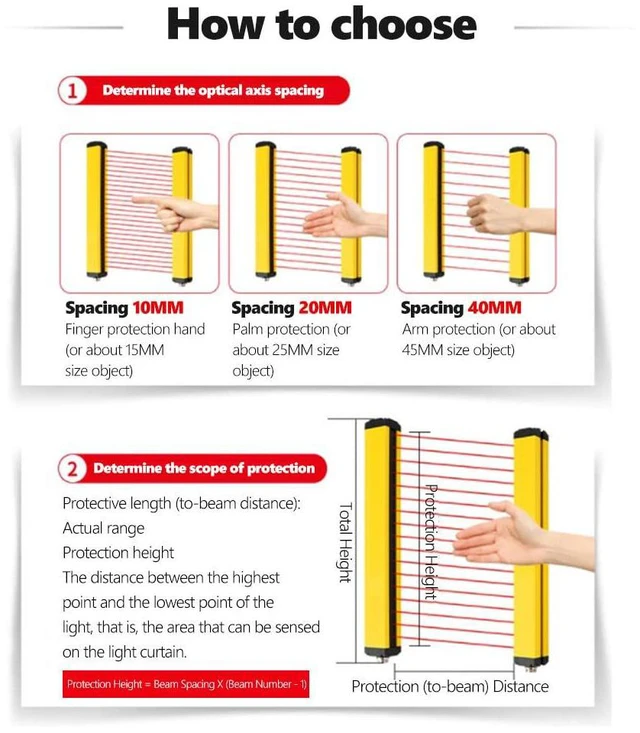

Shaft Spacing: 40mm Effective
Protection Height: 440mm
Detection Distance: 0.3 -2 Meters Length of
Each Cable: 2.15 Meters (2pcs)
Response Time: 10ms
Housing Material: Aluminum Alloy
Protection level: IP-65
Insulation Resistance: Insulation
Resistance: Greater than 10M
Size (optional): Approx. 515 x 29.8 x 18.5 mm / 20.3 x 1.2 x 0.7 in
Optional Style: 12 Beams BEM1240-C-440NB

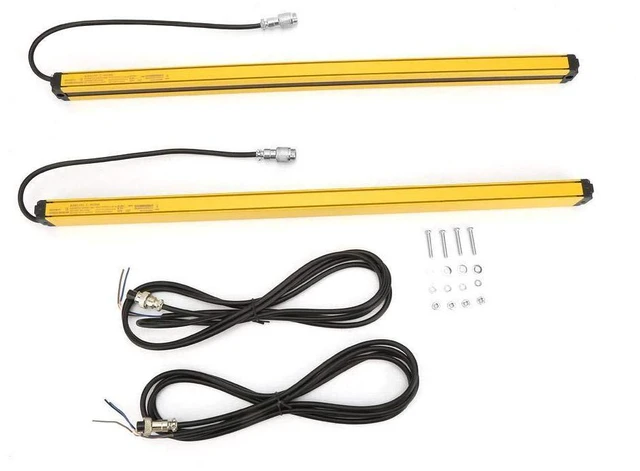

Package List: 1 Bag of Screws 2 x Black Connecting Cable 2 x Yellow Light Gratings 1 x English User
Manual Features:
1. Available in five styles for your choice
2. High quality aluminum alloy material, durable and long service life
3. Suitable for forging machine tools, automation equipment, shearing machines, hydraulic machines, robots, industrial robots and other automation equipment
4. Fast response, it has shock resistance and strong anti-interference
5. This grating can be used for multi-area protection, etc.
Specification: Output
Method: NPN/NC Working
Input Voltage: 10-30VDC Light
Curtain Type: on the
Type A Series: Relay wiring method Number of
Beams: 12 beams Optical
Shaft Spacing: 40mm Effective
Protection Height: 440mm
Detection Distance: 0.3 -2 Meters Length of
Each Cable: 2.15 Meters (2pcs)
Response Time: 10ms
Housing Material: Aluminum Alloy
Protection level: IP-65
Insulation Resistance: Insulation
Resistance: Greater than 10M
Size (optional): Approx. 515 x 29.8 x 18.5 mm / 20.3 x 1.2 x 0.7 in
Optional Style: 12 Beams BEM1240-C-440NB
Package List: 1 Bag of Screws 2 x Black Connecting Cable 2 x Yellow Light Gratings 1 x English User
Manual Features:
1. Available in five styles for your choice
2. High quality aluminum alloy material, durable and long service life
3. Suitable for forging machine tools, automation equipment, shearing machines, hydraulic machines, robots, industrial robots and other automation equipment
4. Fast response, it has shock resistance and strong anti-interference
5. This grating can be used for multi-area protection, etc.
