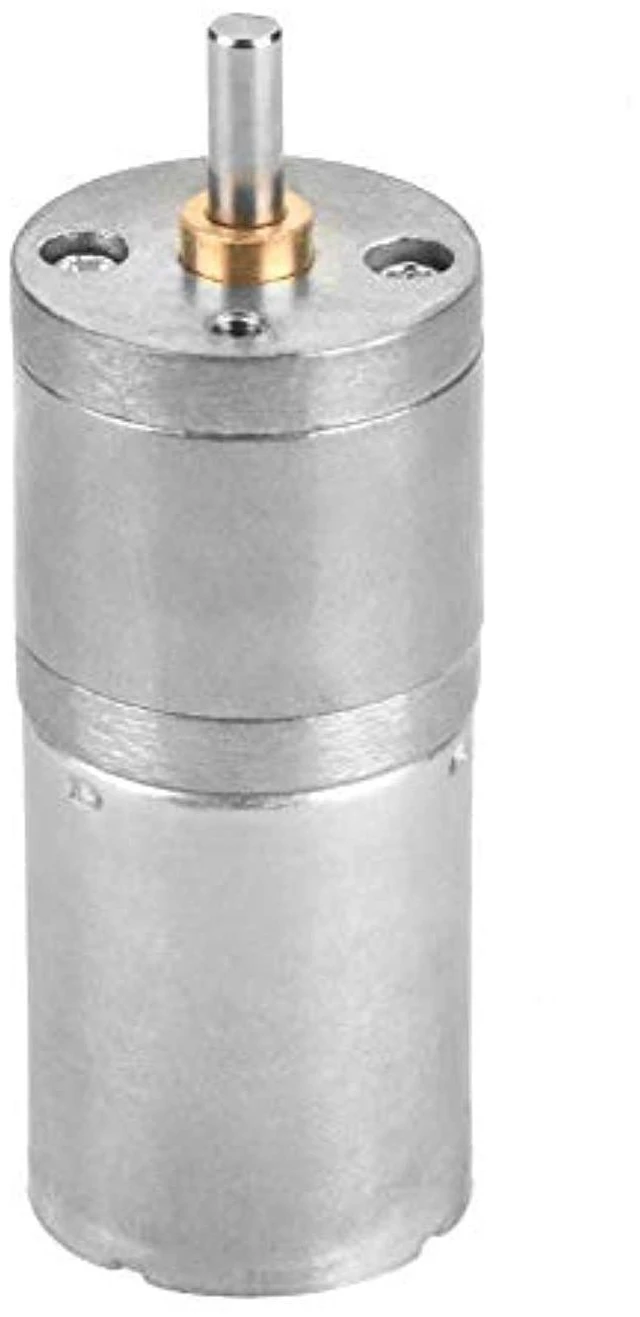

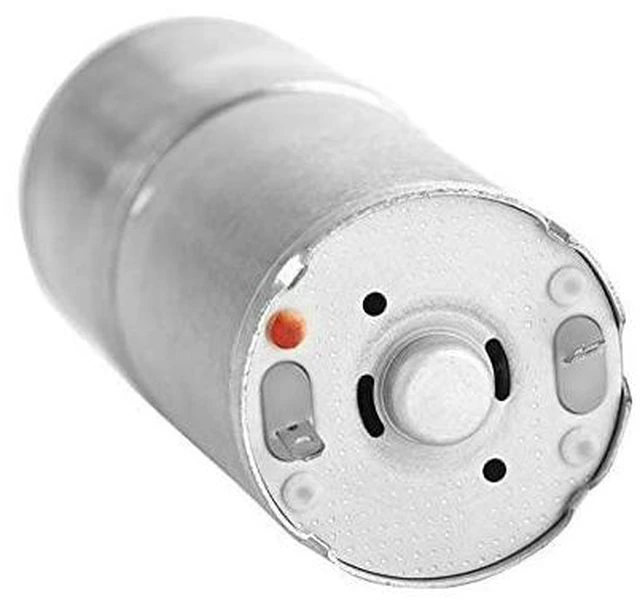

25GA-370 DC 12V Micro Motor Speed Reduction Geared Motor for Electronic Lock(30RPM)

Be the first to review this product...

Product parameter: Rated voltage: 5-12 (V), Rated current: 0.06 (A), Shaft length: 10 mm/0.4in.; This DC motor features large moment of force, low speed, and low noise.; The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.; This motor is adopted of pure copper wire coil, with low heat and low loss.; Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet machine

Overview

Specs

Reviews

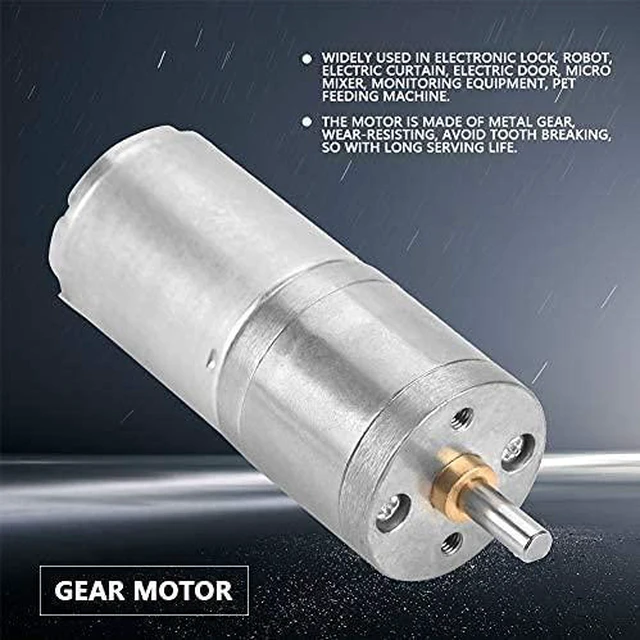

Product description 25GA-370 DC 12V Micro Motor Speed Reduction Geared Motor for Electronic Lock (30RPM) Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet machine The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. This motor is adopted of pure copper wire coil, with low heat and low loss.
Specification:
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)

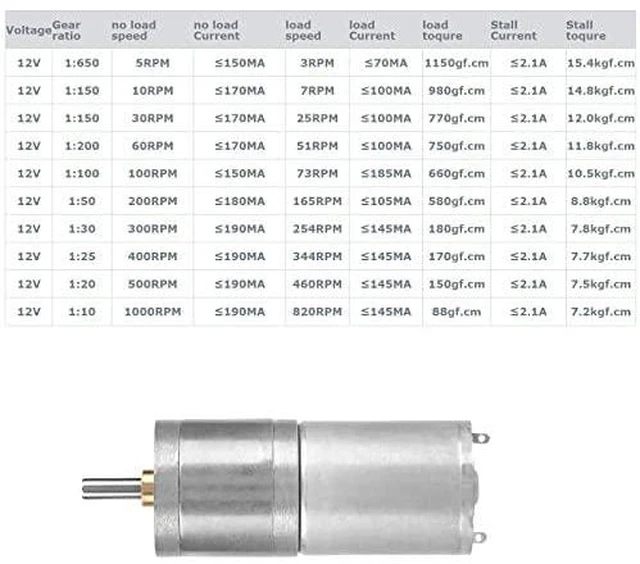

Type (Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM

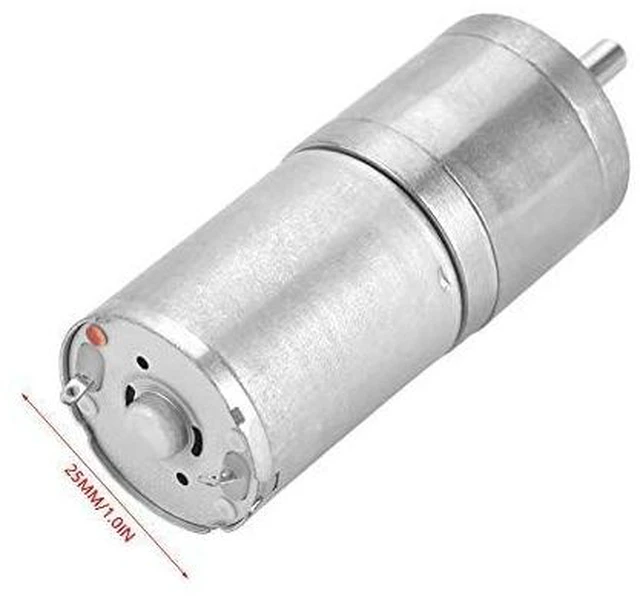

Outer diameter: 25 mm/ 1.0 in
Shaft diameter: 3 mm / 0.1 in
Shaft length: 10 mm/ 0.4 in
Weight: 96g/ 3.4 oz
Package list: 1 x gear motor
