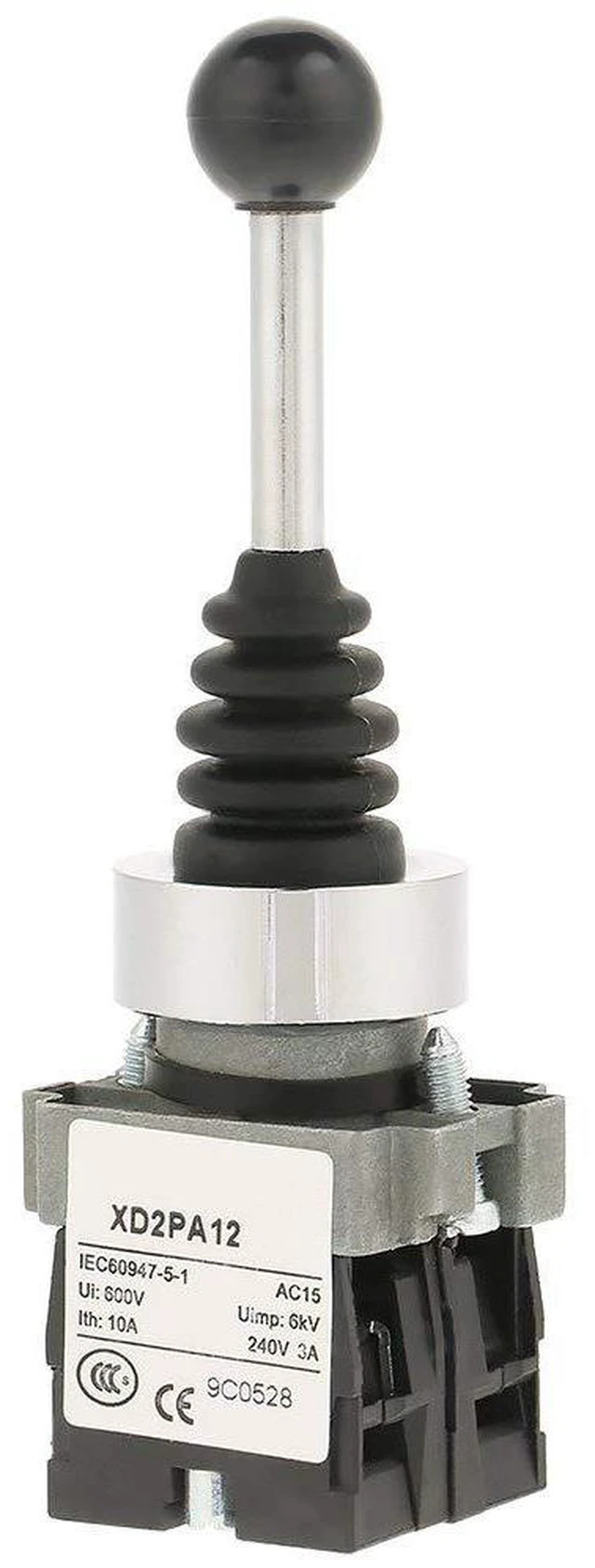

Joystick Switch 2 Position 2NO Locked Joystick Switch Replacement Fits for XD2PA12 220V / 380V Spring Return Joy Stick
- XD2PA12 Joystick Switch: This Self-Locking joystick switch is widely used for industrial control AC 50Hz and DC circuits; Multi-usage: This Spring Return Joystick has widely applications, and it can control magnetic starter, contactor, relay and other electrical circuits; Well Sealed Joy Stick Switch: It is designed with a rubber sleeve, and the rubber sleeve has the characteristic of water resistance, oil and dust resistance, and it can also offer a comfortable touch for you; 2NO 2 Position Joystick Switch: The joystick switch is a Self-Locking switch, and it is a 2NO type, so it has 2 normally open contacts for easy and convenient; Easy to Operate: This spring return switch is easy for mounting and operation, an it can last for a long time due to it's good durability
+
+
Overview
Specs
Reviews
Product description 2NC Joystick Switch Locked 2 Position Self Locking Joystick Switch Replacement for
XD2PA12 Features:
MULTI-USAGE: This Locked Joystick has widely applications, and it can control magnetic starter, contactor, relay and other electrical circuits
XD2PA12 JOYSTICK SWITCH: This Locked joystick switch is widely used for industrial control AC 50Hz and DC circuits
WELL SEALED JOY STICK SWITCH: It is designed with a rubber sleeve, and the rubber sleeve has the characteristic of water resistance, oil and dust resistance, and it can also offer a comfortable touch for you
Model: XD2PA12
Contact: 2NC
Rated voltage: 220V / 380V
Rated current: 5A / 10A
Assembly aperture: Dia.
22 mm Electrical life: >500, 000 times
Mechanical life: > 500, 000 times
Standard operating environment: Ambient
temperature: -25 ~ +55 degrees Celsius (no ice)
Operating humidity: 45 ~ 85%RH (no condensation)
Contact resistance: 50m
Insulation resistance: 100
Maximum withstand voltage: 3000V, AC 50Hz
Vibration: 50 Hz, amplitude: Approx.
1mm Impact resistance: > 10m/s2 (about 10G)
Protection grade: IP55
Overall size: 12.3 x 4cm / 4.84 x 1.57 inch
Weight: 124g
Package Includes: 1 x Joystick Switch
XD2PA12 Features:
MULTI-USAGE: This Locked Joystick has widely applications, and it can control magnetic starter, contactor, relay and other electrical circuits
XD2PA12 JOYSTICK SWITCH: This Locked joystick switch is widely used for industrial control AC 50Hz and DC circuits
WELL SEALED JOY STICK SWITCH: It is designed with a rubber sleeve, and the rubber sleeve has the characteristic of water resistance, oil and dust resistance, and it can also offer a comfortable touch for you
Specifications
:Model: XD2PA12
Contact: 2NC
Rated voltage: 220V / 380V
Rated current: 5A / 10A
Assembly aperture: Dia.
22 mm Electrical life: >500, 000 times
Mechanical life: > 500, 000 times
Standard operating environment: Ambient
temperature: -25 ~ +55 degrees Celsius (no ice)
Operating humidity: 45 ~ 85%RH (no condensation)
Contact resistance: 50m
Insulation resistance: 100
Maximum withstand voltage: 3000V, AC 50Hz
Vibration: 50 Hz, amplitude: Approx.
1mm Impact resistance: > 10m/s2 (about 10G)
Protection grade: IP55
Overall size: 12.3 x 4cm / 4.84 x 1.57 inch
Weight: 124g
Package Includes: 1 x Joystick Switch
