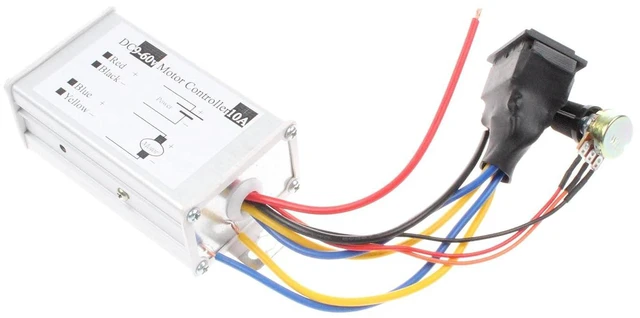

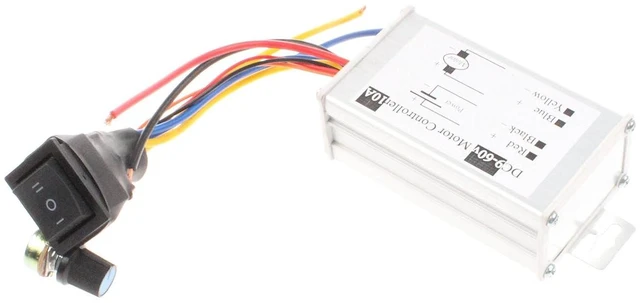

PWM Motor Speed Controller 10A DC 9V-60V 12V 24V 36V 48V Motor Controller Third gear Forward Reverse Stop (10A Third-gear)
- Input voltage: DC9-60V.Output voltage: Load Linear.; Control current: 0-10A.; Third gearForward / Reverse / Stop.; Adjustable speed range: 0-100%.; Operating frequency: 25KHz.
+
+
Overview
Specs
Reviews
Description: The governor can control the motor speed from the 0% -100% between the Promise changes, high efficiency, high torque, less heat. The DC motor governor, the torque output is large at low speed, suitable for a variety of DC motor & DC pump (9V-60V) speed control. Reverse protection, forward and reversal rotation.
Specification:
1.
Voltage regulation range: 9V/12V/24V/36V/48V/60V
2.
Operating voltage: DC9V-60V
3.
Speed range: 0% - 100%
4.
Control current: 0-10A
5.
Speed control mode: potentiometer
6.
Speed regulation principle: adjust the current
7.
Reverse protection: Yes
8.
Forward rotation: support
9.
Size: 92 *52 *36 mmL*W*H. 10.
Weight: 152g.

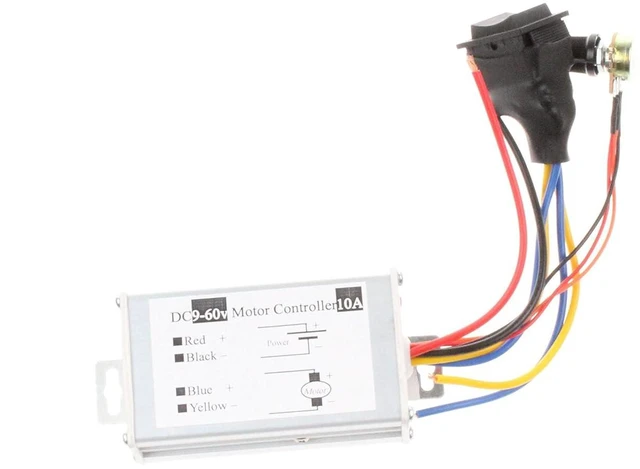

Wiring Red wire connection: Power Supply Positive +
Black wire connection: Power Supply Negative -
Blue wire connection: Motor positive +
Yellow wire connection: Motor negative -
Package Included: 1pcs PWM Motor Speed Controller
Specification:
1.
Voltage regulation range: 9V/12V/24V/36V/48V/60V
2.
Operating voltage: DC9V-60V
3.
Speed range: 0% - 100%
4.
Control current: 0-10A
5.
Speed control mode: potentiometer
6.
Speed regulation principle: adjust the current
7.
Reverse protection: Yes
8.
Forward rotation: support
9.
Size: 92 *52 *36 mmL*W*H. 10.
Weight: 152g.
Wiring Red wire connection: Power Supply Positive +
Black wire connection: Power Supply Negative -
Blue wire connection: Motor positive +
Yellow wire connection: Motor negative -
Package Included: 1pcs PWM Motor Speed Controller
